H211 High Definition USB Binocular Camera Module Block 1080p Infrared WDR Video Night Vision Illumination
H211 High Definition USB Binocular Camera Module Block 1080p Infrared WDR Video Night Vision Illumination
H211 High Definition USB Binocular Camera Module Block 1080p Infrared WDR Video Night Vision Illumination
H211 High Definition USB Binocular Camera Module Block 1080p Infrared WDR Video Night Vision Illumination
H211 High Definition USB Binocular Camera Module Block 1080p Infrared WDR Video Night Vision Illumination
H211 High Definition USB Binocular Camera Module Block 1080p Infrared WDR Video Night Vision Illumination
Specifications
Brand Name :
Shi Zun
Model Number :
H211
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100+pcs+day
Delivery Time :
10 working days
Packaging Details :
80mmx 16mmx 18.4mm
Module Size :
80mmx 16mmx 18.4mm
Temperature (Operation) :
-20°C to +70°C
Temperature (Stable lmage) :
0℃ to 60°C
Assembly technique :
SMT
Object distance :
15cm-∞
PCB printing ink :
Black
USB power supply voltage :
5V±5%
Interface/interface speed :
USB 2.0 (2* 5pin 1.0mm)/ 480mb/s
Power :
USB bus power
Operating system request :
Win XP, Win 7 or Vista and android
Package :
CSP
Sensor Type :
RGB (COMS 1/2.7")/ IR(COMS 1/2.7")
Resolution and frame rate :
MJPG: 640*480(30fps), 800*600 (30fps), 1280*720(30fps), 1920*1080(30fps)
YUV :
640*480(30fps), 800*600 (20fps), 1280*720(10fps), 1920*1080(5fps)
Pixel Size :
3.0μmx 3.0μm
Interface speed :
480mb/s
SNR max :
41 dB/ TBD dB
Max Dynamic range :
105dB/ 80dB
Minimum illumination :
TBD
Lens Construction :
2G2P+IR
F/No :
2.4
EFL :
2.9mm
FOV :
95°
IR Filter :
650±15nm/ 850±15nm
Support format :
YUY2/MJPG
Power Consumption :
Max: 380mA
LED IR-850 :
≤60° 1.5m
Lens view :
M12/D=95° (f=2.4mm)
Effective pixels :
1920*1080
Description

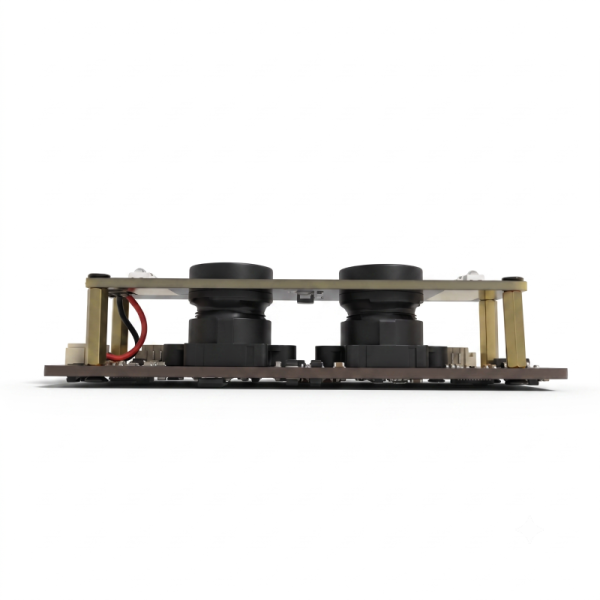

H211 High Definition USB Binocular Camera Module Block 1080p Infrared WDR Video Night Vision Illumination

H211 Binocular Camera Module Features:

  1. Binocular Cameras: Wide Dynamic Color + Infrared Dual Imaging
  2. 1080P Dual-Eye Live Body Detection
  3. Suitable for Face Recognition, Access Control, Turnstile, Security Equipment, and Other Scenarios
  4. USB 2 Million High Definition Pixels
  5. Support for Illumination Lights + Infrared Night Vision Lights
  6. High Performance Compatible System
  7. Large Aperture, Long Depth of Field Focus Options Available
  8. Industrial Grade Main Control Chip
  9. Ultra-Clear Image Ultra-High Resolution
  10. Backlight Compensation

H211 Binocular Camera Module Parameter:

Connect the interface: USB 2.0 (2* 5pin 1.0mm)/ 480mb/s
Interface speed: 480mb/s
Maximum resolution and frame rate: 1920*1080(30fps)
Other optional resolution ratio: 640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps),
Support format: YUV/ MJPG
Max Dynamic range: 105dB/ 80dB
F/No: 2.4
EFL: 2.9mm
FOV: 95°
Lens Construction: 2G2P+IR
Power Consumption: Max: 380mA
Operating systemrequest: Win XP, Win 7 or Vista and android
