Specifications
Brand Name :
Shi Zun
Model Number :
H215-USB
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100+pcs+day
Delivery Time :
10 working days
Packaging Details :
38mmx 38mmx 17.8mm
Keywords :
Wide Dynamic Backlight Compensation Camera Module
Photosensitive chip :
CMOS 1/2.5”
Pixel Size :
2.2μm x 2.2μm
SNR max :
39 dB
Max Dynamic range :
110 dB
Minimum illumination :
0.1Lux at F12
F/No :
2.0
EFL :
3.5mm
FOV :
90°
IR :
650±10nm
Lens Construction :
2G4P+IR
Maximum resolution and frame rate :
2592*1944(30ps)
Other optional resolution ratio :
640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps), 1024* 768(30fps), 1920* 1080(30fps), 1600* 1200(30ps), 2048* 1536(30fps), 2560* 1440(30ps)
Support format :
YUV / MJPG
USB power supply voltage :
5V±5%
Connect the interface :
1* USB-5pin-1.0mm
Interface speed :
480mb/s
Operating systemrequest :
WinXP, Win7, Linux or Vista and android4.1
Power Consumption :
Regular work: 0.7W
storage temperature :
0°C to 50°C
Working temperature :
-10°C to+70°
structure size :
38mmx 38mmx 17.8mm
Description

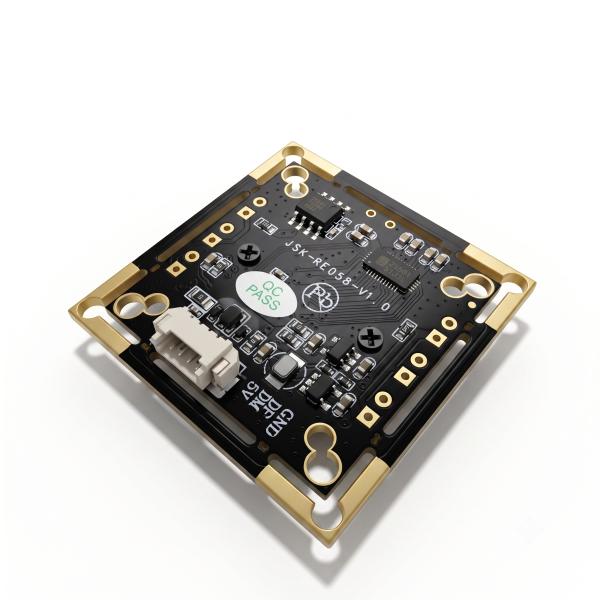

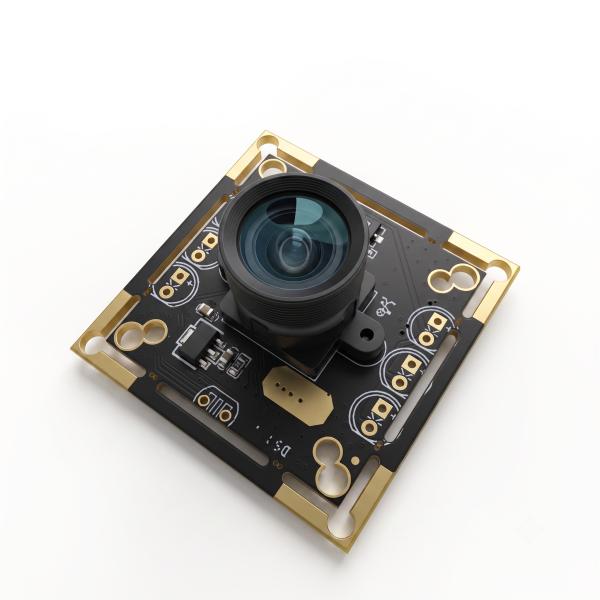

H215-USB Wide Dynamic Backlight Compensation Camera Module for Industrial Barrier Gates and Access Control Surveillance

H215-USB Wide Dynamic Backlight Compensation Camera Module Features:

  1. 5M Wide Dynamic Camera
  2. USB 1080p High Definition
  3. 5M Wide Dynamic Camera (Note: This feature is repeated, so it's only listed once)
  4. USB 2.0 Megapixel High-Definition Pixels
  5. Can be equipped with MIC, supports audio recording, video recording, can be equipped with photodiodes, infrared illumination
  6. Suitable for access control, barrier gates, ID verification, advertising machines, video conferencing, face recognition, self-service terminal devices, Android devices, and other scenarios
  7. Large aperture, long focal length depth is optional
  8. Tested for high and low temperatures, operating temperature can reach up to 70°C, and as low as -10°C
  9. Photo resolution of 2592*1944, suitable for face recognition and other tasks
  10. Backlight compensation
  11. USB data interface connection
  12. Supports clip and perforated installation
  13. High definition or clearer imaging

H215-USB Wide Dynamic Backlight Compensation Camera Module Parameter:

Connect the interface: 1* USB- 5pin-1.0mm
Interface speed: 480mb/s
Maximum resolution and frame rate: 2592*1944(30ps)
Other optional resolution ratio: 640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps), 1024* 768(30fps), 1920* 1080(30fps), 1600* 1200(30ps), 2048* 1536(30fps), 2560* 1440(30ps)
Support format: YUV/ MJPG
Max Dynamic range: 110 dB
F/No: 2.0
EFL: 3.5mm
FOV: 90°
Lens Construction: 2G4P+IR
Power Consumption: Regular work: 0.7W
Operating systemrequest: WinXP, Win7, Linux or Vista and android4.1
