HK5M-H177AF Face Recognition Camera Module USB Driver-Free Industrial Camera EFL 4.35mm FOV 70°
HK5M-H177AF Face Recognition Camera Module USB Driver-Free Industrial Camera EFL 4.35mm FOV 70°
HK5M-H177AF Face Recognition Camera Module USB Driver-Free Industrial Camera EFL 4.35mm FOV 70°
HK5M-H177AF Face Recognition Camera Module USB Driver-Free Industrial Camera EFL 4.35mm FOV 70°
HK5M-H177AF Face Recognition Camera Module USB Driver-Free Industrial Camera EFL 4.35mm FOV 70°
HK5M-H177AF Face Recognition Camera Module USB Driver-Free Industrial Camera EFL 4.35mm FOV 70°
HK5M-H177AF Face Recognition Camera Module USB Driver-Free Industrial Camera EFL 4.35mm FOV 70°
HK5M-H177AF Face Recognition Camera Module USB Driver-Free Industrial Camera EFL 4.35mm FOV 70°
Specifications
Brand Name :
Shi Zun
Model Number :
HK5M-H177AF
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100+pcs+day
Delivery Time :
10 working days
Packaging Details :
72mmx 19mmx 9.7mm
Photosensitive chip :
CMOS1/2.5"
Pixel Size :
2.2μmx 2.2μm
SNR max :
39 dB
Max Dynamic Range :
110 dB
Minimum illumination :
0.1Lux at F12
F/No :
2.0
EFL :
4.35mm
FOV :
70°
IR :
650±10nm
Lens Construction :
4P+IR
Maximum resolution and frame rate :
2592* 1944 (30ps)
Other optional resolution ratio :
640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps), 1024* 768(30fps), 1920*1080(30fps), 1600*1200(30ps), 2048* 1536(30fps), 2560* 1440(30fps)
Support format :
YUV / MJPG
USB power supply voltage :
5V±5%
Connect the interface :
1* USB-5pin-1.0mm
Interface speed :
480mb/s
Operating systemrequest :
WinXP, Win7, Linux or Vista and android4.1
Power Consumption :
Regular work: 0.8W
storage temperature :
-10°C to 50°C
Working temperature :
-20°C to+70°
structure size :
72mmx 19mmx 9.7mm
Description

HK5M-H177AF Face Recognition Camera Module USB Driver-Free Industrial Camera EFL 4.35mm FOV 70°

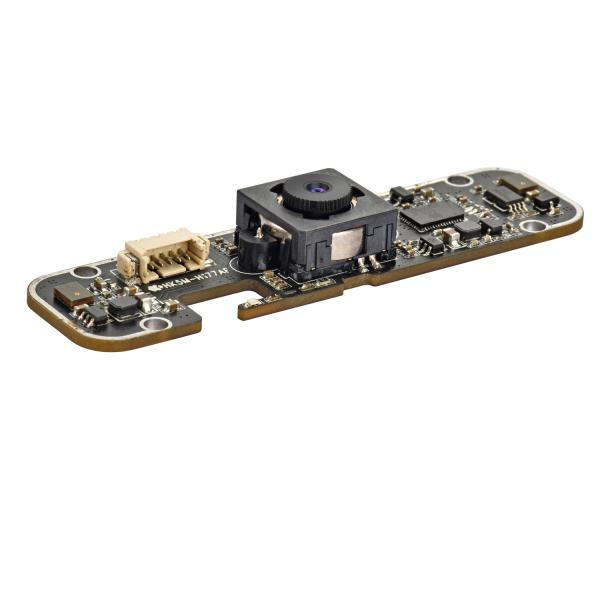

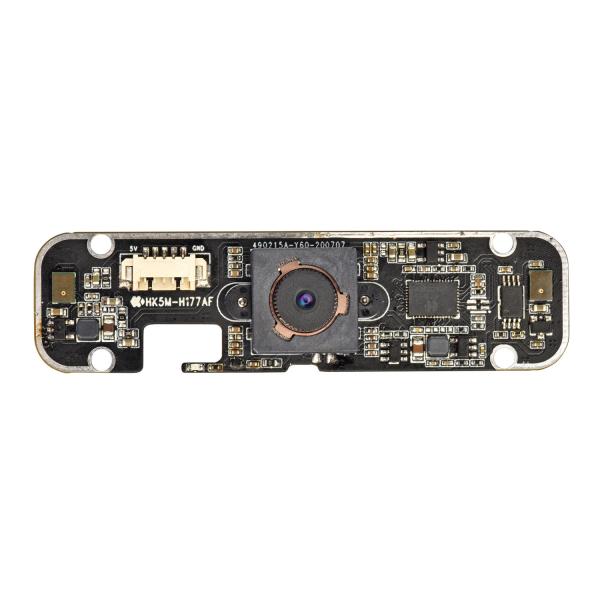

HK5M-H177AF Face Recognition Camera Module Features:

  1. USB 2.0 Interface
  2. 5-Megapixel Resolution High Definition Camera
  3. Ultra-Wide Dynamic Range
  4. Equipped with Dual Omnidirectional Digital MICs, Supporting Audio Recording and Video Recording
  5. Power Indicator Light Included
  6. Suitable for Live Streaming, Video Conferencing, Video Calls, and Other Similar Scenarios

HK5M-H177AF Face Recognition Camera Module Parameter:

Connect the interface: 1* USB-5pin-1.0mm
Interface speed: 480mb/s
Maximum resolution and frame rate: 2592* 1944 (30ps)
Other optional resolution ratio: 640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps), 1024* 768(30fps), 1920*1080(30fps), 1600*1200(30ps), 2048* 1536(30fps), 2560* 1440(30fps)
Support format: YUV/ MJPG
Max Dynamic Range 110dB
F/No: 2.0
EFL: 4.35mm
FOV: 70°
Lens Construction: 4P+IR
Power Consumption: Regular work: 0.8W
Operating systemrequest: WinXP, Win7, Linux or Vista and android4.1

HK5M-H177AF Face Recognition Camera Module USB Driver-Free Industrial Camera EFL 4.35mm FOV 70°HK5M-H177AF Face Recognition Camera Module USB Driver-Free Industrial Camera EFL 4.35mm FOV 70°HK5M-H177AF Face Recognition Camera Module USB Driver-Free Industrial Camera EFL 4.35mm FOV 70°

HK5M-H177AF Face Recognition Camera Module USB Driver-Free Industrial Camera EFL 4.35mm FOV 70°HK5M-H177AF Face Recognition Camera Module USB Driver-Free Industrial Camera EFL 4.35mm FOV 70°HK5M-H177AF Face Recognition Camera Module USB Driver-Free Industrial Camera EFL 4.35mm FOV 70°
