H-A133L Smart HMI Motherboard Up to 5 USB Ports 9~15V wide voltage DC power supply
H-A133L Smart HMI Motherboard Up to 5 USB Ports 9~15V wide voltage DC power supply
H-A133L Smart HMI Motherboard Up to 5 USB Ports 9~15V wide voltage DC power supply
H-A133L Smart HMI Motherboard Up to 5 USB Ports 9~15V wide voltage DC power supply
Specifications
Brand Name :
Shi Zun
Model Number :
H-A133L Motherboard
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100+pcs+day
Packaging Details :
100mm* 80mm* 9mm
CPU :
Allwinner A133, quad-core Cortex-A53, Clock up to 1.6GHz
GPU :
PowerVR GE8300
RAM :
Standard 1GB LPDDR4, 2GB/4GBoptional
ROM :
Standard 16GB EMMC, up to 128GB
LVDS :
31Pin FPC MIPI interface, supporting up to 1080P resolution
MIPI :
30Pin dual-channel LVDS interface, supporting up to 1080P resolution
Headphone :
American standard four-stage headset integrated 3.5mm socket
Line Output :
Standard left and right channel line output
MIC Input :
Differential MIC input
Amplifier Output :
8 ohm·-6W dual- channel audio amplifier output

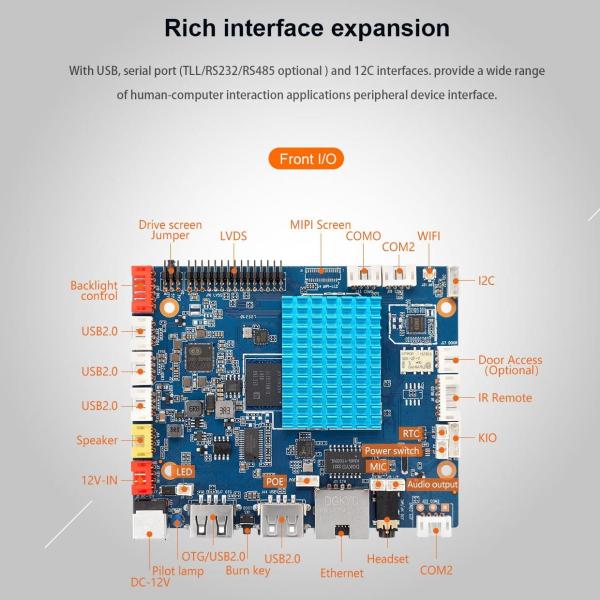

USB Host :
2 external USB2.0, 3 built-in USB2.0
USB OTG :
1 USB OTG interface
TF Card :
Self-elastic TF card socket, supports 256GB TF card
Serial ports :
1-way TTL/RS232 serial port, 1-way TTL/RS232/RS485 serial ports
RTC :
Low power consumption RTC circuit with CR1220 battery
12C :
1-way I2C interface
Backlight :
1-way backlight control interface, supports switch and brightness adjustment
GPIO :
5-way GPIO signals
Access Control :
1-way SPDT access control relay signal (optional)
Infrared :
Standard infrared remote control receiver and infrared receiving pin header
Button :
Burn button and power button
Pilot lamp :
Blue work indicator light
POE :
1-way POE power receiving interface
Ethernet :
1-way 10/100Mbps adaptive Ethernet
Wi-Fi :
High-performance WiFi, supports 802.11 b/g/n/ac
Bluetooth :
High-performance Bluetooth, Support BT V4.2
DC Input :
12V DC socket, supports 9V-15V wide voltage input
Size :
100mm* 80mm
Thickness :
9mm
Structure Compatibility :
Compatible with H0、H3、H-3399、H-3566、H-3568、H-T972、H-A133 structure and interchangeable
Operating Temperature :
-20℃~70℃
Humidity :
0%-95% (non-condensing)
Android system :
Recommend Android 10.0
Linux System :
Linux Optional
Description

H-A133L Smart HMI Motherboard Up to 5 USB Ports 9~15V wide voltage DC power supply

H-A133L Smart HMI Motherboard Description:

H-A133L uses the Allwinner A133 processor, clock up to 1.6GHZ. It has mainstream CPU processing capabilities with high cost-effective.Small form factor design, LVDS or MIPI display interface optional , supports 4K video decoding, and is suitable for processing multimedia playback and interactive applications.Widely used in human-computer interaction scenarios, such as intelligent business displays, robots, self-service terminals, electronic class passes, etc.

H-A133L Smart HMI Motherboard Parameters:

Keyword:

 Smart HMI Motherboard

CPU:

 Allwinner A133, quad-core Cortex-A53, Clock up to 1.6GHz
GPU: PowerVR GE8300 TF Card: Self-elastic TF card socket, supports 256GB TF card

RAM:

 Standard 1GB LPDDR4, 2GB/4GBoptional

ROM:

 Standard 16GB EMMC, up to 128GB

USB Host:

 2 external USB2.0, 3 built-in USB2.0

Serial Port:

 1-way TTL/RS232 serial port, 1-way TTL/RS232/RS485 serial ports

Amplifier Output:

 8 ohm·-6W dual- channel audio amplifier output

Android:

 Recommend Android 10.0
