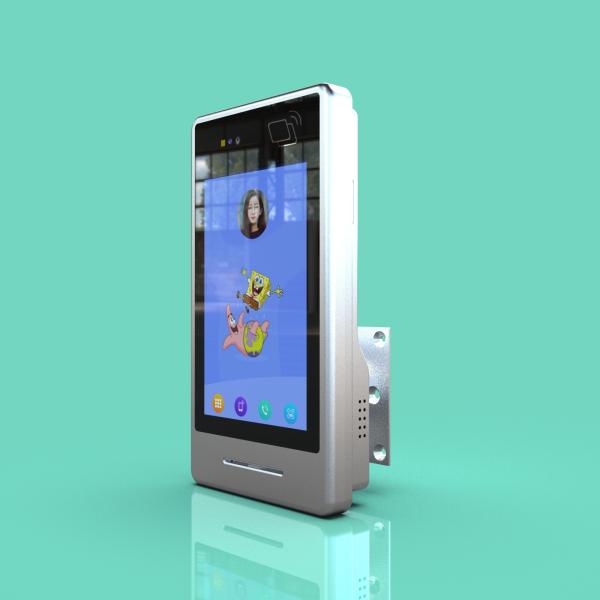

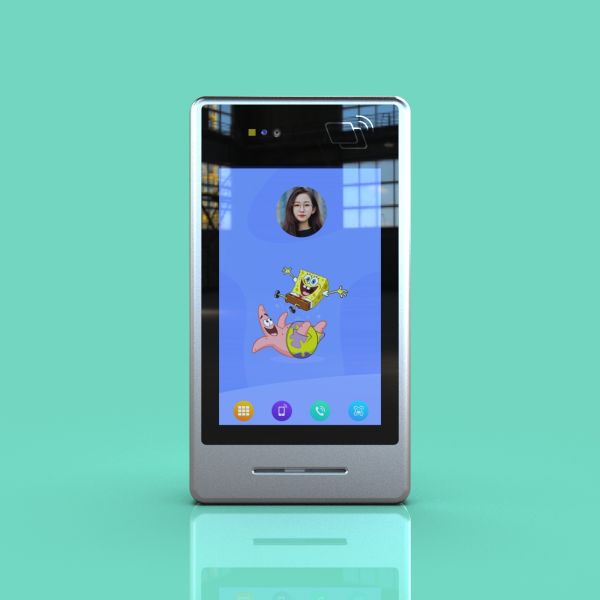

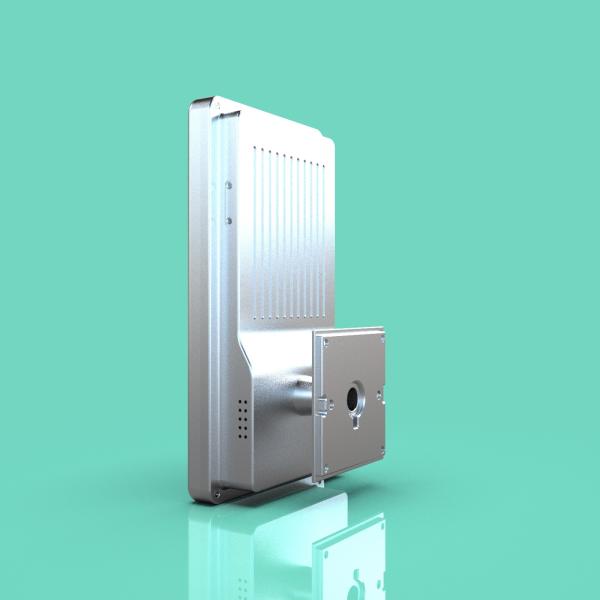

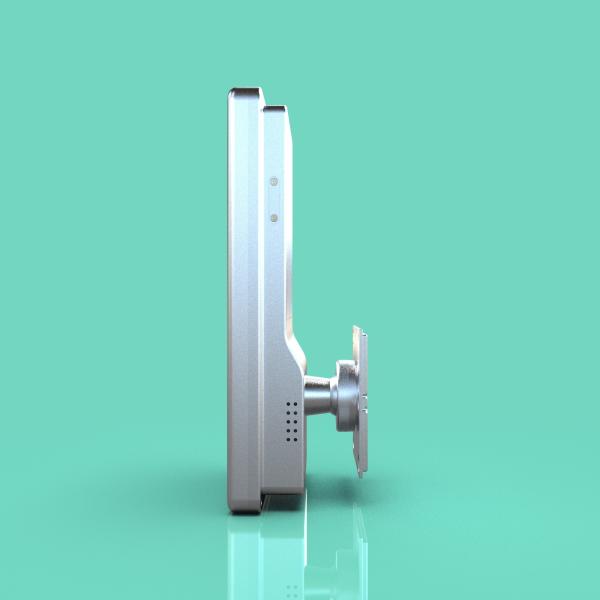

JP171 Vertical Monocular Biometric Face Scanner 7-inch with Card Swipe Function for Attendance Clocking Android 11 System
JP171 Vertical Monocular Biometric Face Scanner 7-inch with Card Swipe Function for Attendance Clocking Android 11 System
JP171 Vertical Monocular Biometric Face Scanner 7-inch with Card Swipe Function for Attendance Clocking Android 11 System
JP171 Vertical Monocular Biometric Face Scanner 7-inch with Card Swipe Function for Attendance Clocking Android 11 System
JP171 Vertical Monocular Biometric Face Scanner 7-inch with Card Swipe Function for Attendance Clocking Android 11 System
JP171 Vertical Monocular Biometric Face Scanner 7-inch with Card Swipe Function for Attendance Clocking Android 11 System
JP171 Vertical Monocular Biometric Face Scanner 7-inch with Card Swipe Function for Attendance Clocking Android 11 System
JP171 Vertical Monocular Biometric Face Scanner 7-inch with Card Swipe Function for Attendance Clocking Android 11 System
JP171 Vertical Monocular Biometric Face Scanner 7-inch with Card Swipe Function for Attendance Clocking Android 11 System
JP171 Vertical Monocular Biometric Face Scanner 7-inch with Card Swipe Function for Attendance Clocking Android 11 System
Specifications
Brand Name :
Shi Zun
Model Number :
JP171
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100+pcs+day
Delivery Time :
10 working days
Packaging Details :
7 inch
Operating System :
Android 13.0
CPU :
RK3562 2.0Ghz 4-core
NPU :
Supports 1.0T arithmetic
Configure :
RAM-2GB，ROM-16GB
LCD Size :
7 inch
Screen resolution :
800*1280
Touchscreens :
10-point capacitive touch
Luminance :
300cd
Ethernet port :
10/100/1000 Adaptive Ethernet, support POE power supply
Battery capacity :
5000mAh battery
Bluetooth :
V4.0
Horn (automobile etc) :
8 ohm 3 watt
Real Time Clock (RTC) :
Be in favor of
4G module :
Be in favor of
Operating temperature :
-20°C+60°C
QR code reader :
Support PDF417, MicroPDF417, Data Matrix, Maxicode, QR code, Micro QR, Aztec, Haxin, GM and other QR code
QR code speed :
120 frames per second
Reader :
Supports mifare one (M1), S50, S70, UL:NTAG2xx series read/write. Protocol: ISO14443A, ISO14443B
Plug-in card reader :
IC Card ISO/IEC7816-1,2,3 Class A,B and C
External interface :
1 USB (OTG), 1 RJ45 (with POE), 3 relay outputs, 2 inputs (support 24V input), 1 DC
Surface Materials and Processes :
reinforced glass
Body material and technology :
Aluminum CNC engraving, anodized surface
Back cover material and technology :
Aluminum CNC engraving, anodized surface
Installation :
Hanging
Description

JP171 Vertical Monocular Wide Dynamic Camera 7-inch with Card Swipe Function for Attendance Clocking Android 11 System

Introduction:
This product is a 7-inch all-in-one attendance and access control machine, primarily used for face recognition attendance and access control in factories, enterprises, and organizations. It can be used as a standalone device or connected to a network.

Features:

  1. Android 11 System
  2. 2GB RAM, 16GB Storage
  3. Fast and Accurate Recognition: Face recognition can be completed in as fast as 0.2 seconds, with an accuracy rate above 99%, supporting recognition from 0.5m to 3.0m.
  4. Aerospace-grade Aluminum Alloy Integrated Body: High protection, high strength, and long-lasting durability.
  5. Quick Installation: Plug-and-play, easy to use, supports both wireless and wired connections.
  6. Large Recognition Database: Supports a local personnel database of up to 50,000 individuals.
  7. Protection Level: Dustproof and waterproof with IP65 rating.
  8. Operating Temperature Range: -25°C to +75°C.
  9. Standardized Interface: Supports Wiegand protocol for access control industry, and API interface for third-party system integration.
  10. Automatic Exposure Adjustment: Adapts to strong light, low light, backlight, and other extreme lighting conditions, ensuring accurate recognition.

This 7-inch vertical monocular wide dynamic camera attendance clocking device is designed for high efficiency and flexibility in attendance and access control management.

Operating System:

Android 13.0

 Configuration:

RAM-2GB,ROM-16GB

CPU:

RK3562 2.0Ghz 4-core

NPU:

Supports 1.0T arithmetic

Battery capacity​:

5000mAh battery

Ethernet port:

10/100/1000 Adaptive Ethernet, support POE power supply
Speakers:

8 ohm 3 watt

Operating temperature:

-20°C+60°C

QR code reader:

Support PDF417, MicroPDF417, Data Matrix, Maxicode, QR code, Micro QR, Aztec, Haxin, GM and other QR code

QR code speed:

120 frames per second

Plug-in card reader​:

IC Card ISO/IEC7816-1,2,3 Class A,B and C

External interface:

1 USB (OTG), 1 RJ45 (with POE), 3 relay outputs, 2 inputs (support 24V input), 1 DC
