Garden Liquid Irrigation Fertilizer Injector System For Lawn Sprinkler
Garden Liquid Irrigation Fertilizer Injector System For Lawn Sprinkler
Specifications
Brand Name :
TJ
Model Number :
SFQ01
Certification :
ISO9000
Place of Origin :
China
MOQ :
5000pcs/day
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30000pcs/day
Delivery Time :
10-15days
Packaging Details :
opp, carton and pallect
Name :
Fertilizer Injector
Material :
POM
Szie :
1/2''/3/4''/1''/ 11/2'/2''' inch
Performance :
Chemical Resistance
Description

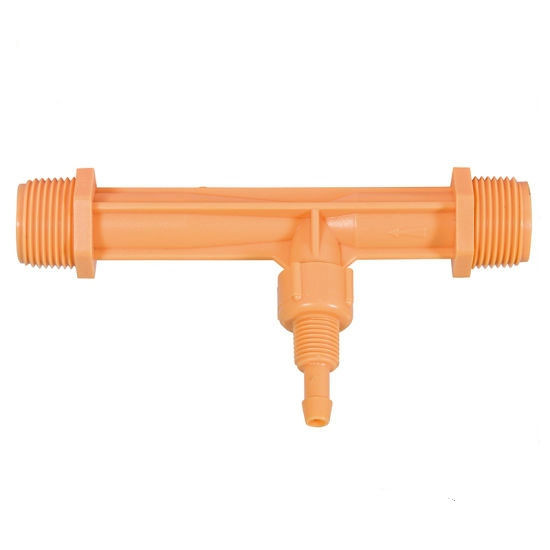

Plastic venturi Fertilizer Injector Agriculture landscape Garden 1/2''/3/4''/1''/ 11/2'/2''' inch.

Agriculture Farm Irrigation Fertilizer Venturi Injector

1. No moving parts, high reliability, less maintenance
2. Made of special chemical-resistant material, outstanding durability
3. Keep fertilizer absorption constantly under the normal flux
4. The most economic and efficient fertilizer-injecting way in the pressure irrigation system


Application

1. Made of engineering plastic.
2. Excellent chemical resistance to most of the chemicals.
3. Highly efficient and compact differential pressure injection device.
4. Economical and low cost option.


Size		 At0.8bar At1.5bar At2.0bar At2.5bar At3.0bar At3.5bar At4.0bar

Outlet Flow
(L/h)
Outlet Flow
(L/h)
Outlet Flow
(L/h)
Injection Rate (L/h)
Outlet Flow
(L/h)
Injection Rate (L/h)
Outlet Flow
(L/h)
Injection Rate (L/h)
Outlet Flow
(L/h)
Injection Rate (L/h)
Outlet Flow
(L/h)
Injection Rate (L/h)
Outlet Flow
(L/h)
1/2" 280 353 389 74 420 71 448 71 447 72 501 72
3/4" 880 1098 1192 113 1292 113 1372 113 1462 113 1537 113
1" 1758 2578 3043 357 3290 356 3691 352 3933 349 4203 351
1-1/2" 3540 4980 5880 786 6480 785 6720 7704 778 8100 781

*Note:Flow Range at 0.8-4.0 Bar with 50% Pressure Differential.

Adanctage:
· Commercial grade one with no moving parts.

· It works by suction and will draw liquid fertilizer out of almost any container you provide.

· Can be plumbed on a bypass for less restriction (the preferred method),or directly into a main water line.

· All sizes have Male Pipe threads on the inlet and outlet, which are easily adapted to hose threads.
