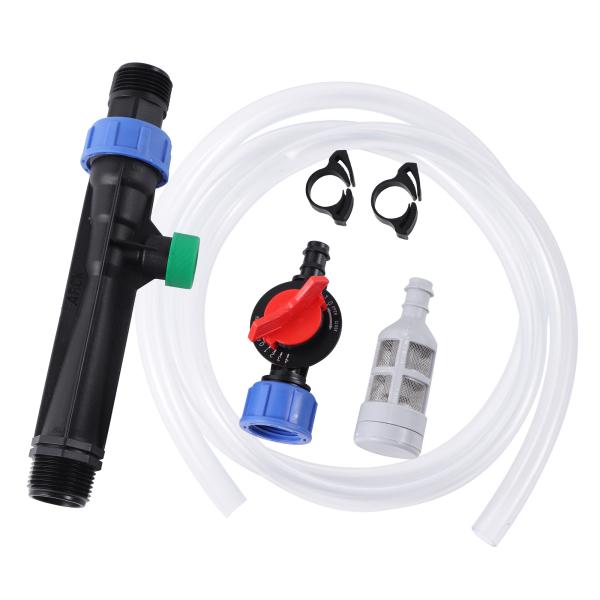

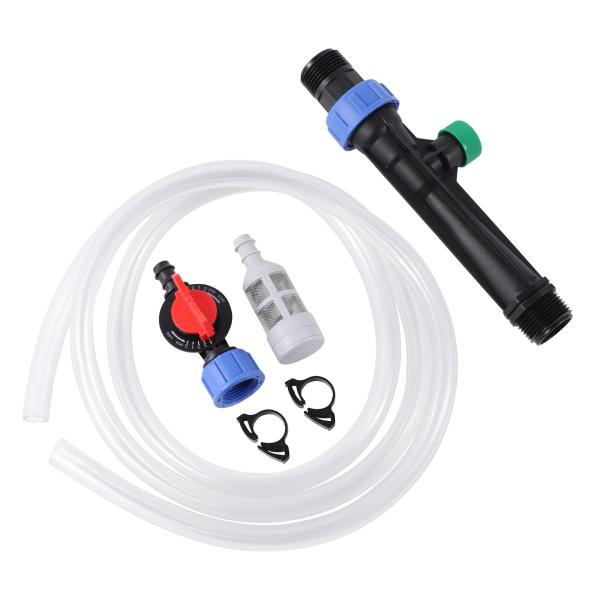

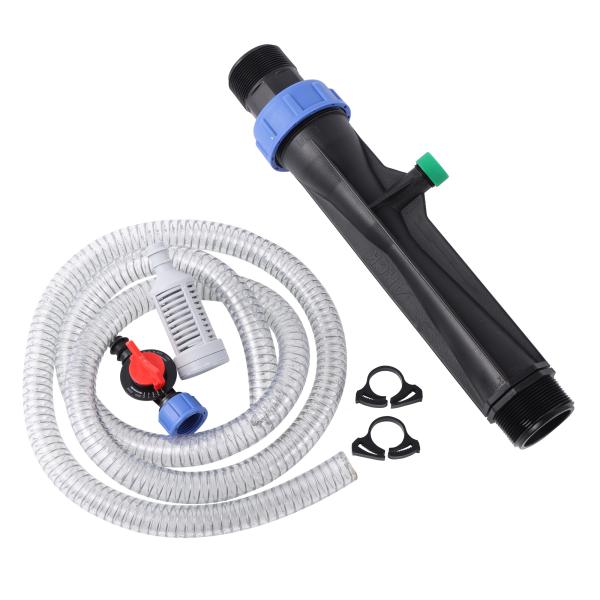

1 / 1.5 / 2 Automatic Fertilizer Injector Male Thread Venturi Fertilization Kit
1 / 1.5 / 2 Automatic Fertilizer Injector Male Thread Venturi Fertilization Kit
1 / 1.5 / 2 Automatic Fertilizer Injector Male Thread Venturi Fertilization Kit
1 / 1.5 / 2 Automatic Fertilizer Injector Male Thread Venturi Fertilization Kit
1 / 1.5 / 2 Automatic Fertilizer Injector Male Thread Venturi Fertilization Kit
1 / 1.5 / 2 Automatic Fertilizer Injector Male Thread Venturi Fertilization Kit
1 / 1.5 / 2 Automatic Fertilizer Injector Male Thread Venturi Fertilization Kit
1 / 1.5 / 2 Automatic Fertilizer Injector Male Thread Venturi Fertilization Kit
Specifications
Brand Name :
TJ
Model Number :
SFQ01A-3
Certification :
ISO9000
Place of Origin :
China
MOQ :
5000pcs/day
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30000pcs/day
Delivery Time :
10-15days
Packaging Details :
opp, carton and pallect
Name :
Fertilizer Injector
Material :
POM
Szie :
1",1.5",2" Male Thread
Performance :
Chemical Resistance
Advantage :
Commercial grade
Application: :
Irrigation Fertilizer Injecting
Description

Large Suction 1"/1.5"/2" Male Thread Venturi Fertilization Kit Automatic Fertilizer Injector Drip Sprinkler Irrigation Fittings

Quick Information:

Name: Venturi fertilizer Kit
Connection Size Type: 1",1.5",2" Male Thread
Max fertilizer suck rate : 300~1200 L/H
Max water flow rate: 9~20 m³/H
Working Pressure: 0.5 ~ 9.5bar
Feature:Controllable, adjustable fertilization, uniform fertilizatio
Specification:
Item No. Size

Bag Qty

(Pc)

Carton Qty

(Pc)

Carton Size

(Cm)

G.W/Carton

(Kg)
VI0112H 1/2" 10 300 54*35*28 6
VI0134H 3/4" 10 250 54*35*28 7
VI0110H 1" 10 100 54*35*28 12
VI0132H 1-1/2" 1 60 54*35*28 11

Description:

The new Venturi fertilizer injector is installed in parallel with the water supply control valve at the entrance of the irrigation system of the irrigation system. When in use, the control valve is closed to form a pressure difference between the front and rear, which can make the water flow through the throat of the Venturi fertilizer injector. Inside the tube, there is a flow channel guide device, which is designed with two taper nozzles. When pressurized water enters the throat pipe, because the pipe diameter is rapidly reduced, the flow velocity will increase rapidly. When the water flow passes through the inlet pipe opening at the maximum speed, a water jet is generated around the jet water column.
In the negative pressure zone, the fertilizer solution is evenly sucked into the pipeline system from the open fertilizer bucket for fertilization.
When installing, the water flow direction should be consistent with the arrow direction on the fertilizer injector, otherwise it will not
normal work.
The control valve on the main pipe should be able to be adjusted slightly to achieve a proper working state. When installing, make sure that the connection part does not leak, otherwise it will affect the normal operation of the fertilizer injector.

1

Application:

Drip irrigation,Sprinkler irrigation Fertilize

1
