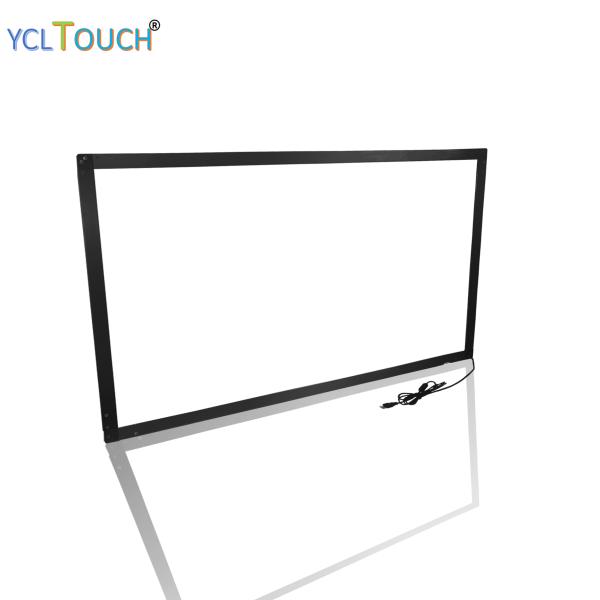

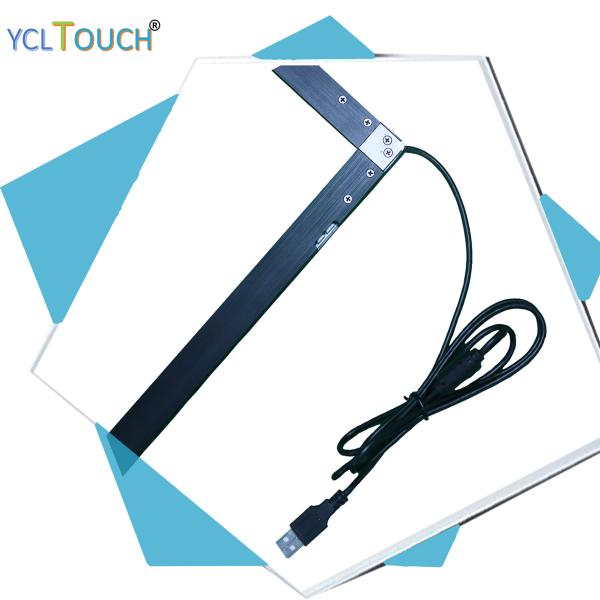

43 Inch IR Touch Screen Panel Overlay 40 Points With Toughened Glass
43 Inch IR Touch Screen Panel Overlay 40 Points With Toughened Glass
43 Inch IR Touch Screen Panel Overlay 40 Points With Toughened Glass
43 Inch IR Touch Screen Panel Overlay 40 Points With Toughened Glass
Specifications
Brand Name :
YCLTOUCH
Model Number :
LT-43-Q9
Certification :
RoHS, ISO9001, ce, EMC, LVD
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000
Delivery Time :
3-7Days
size :
43 inch
Touch point :
40 Points
Touch Screen :
IR Multi Touch Screen
Interface :
USB 2.0(full-speed)
Characteristic :
Easy installation, strong compatibility
Line length :
1.5m
calibration :
4 or 9 points calibration
Description

Infrared touch screen 43 inch multi ir touch frame,ir touch panel overlays with 40 points

infrared touch screen 43 inch multi ir touch frame,ir touch panel overlays with 40 points

Description for LT series infrared touch frame :

43 inch Infrared Touch Frame with 40 points

Model:LT-43-Q9
20.8mm width 9.5mm thickness frame
Infrared Touch Screen/Frame , Size from 43"-65", 40 point touch with Dust-proof/ Vandal-proof/ Water-proof/ Anit-glare
43 Inch IR Touch Screen Panel Overlay 40 Points With Toughened Glass43 Inch IR Touch Screen Panel Overlay 40 Points With Toughened Glass
Product Description
Touch Screen Size
43"
Touch Points
40 touch points
Minimum Recognition Point Size
2.5mm
Supporting resolution
32768×32768
Touch Response Time(Multi touch)
10-15ms
Touch Response Time(One touch)
8ms
Input method
Any opaque touches, such as fingers, brushes, etc.
calibration
4 or 9 points calibration
Number of clicks
Infinite times
Touch pressure
No pressure requirement
Interface type
1.5 m USB cable receptacle, the receptacle 5P
Line length
1.5m
Frame Material
Aluminium alloy
Glass Material
Toughened glass
communication interface
USB 2.0
Scanning frequency
>110Hz
Characteristic
Easy installation, strong compatibility
Power supply mode
USB 5.0V
Working Voltage and Current
4.75~5.25V , ≤200mA
Humidity
Up to 90% RH from 0°C to +40°C, non-condensing
Temperature Range
Working temperature:-10℃～50℃,Storage temperature:-20℃～60℃
LED Lifetime
60000hours
ESD
EN 6100-4-2 2008:3 level.4KV contact discharge and

8KV air discharge
Anti-light Interference
Excellent
Fault-tolerant
Able to work if less than

10% non-consecutive sensors are damaged
Firmware Upgrade
USB Upgrade: Windows 8,Windows 7
Support OS(Multi touch)
Windows10,Windows8,Windows7,Andriod
Support OS (One touch)
WindowsXP,MacOS.Linux

Infrared touch screen Features:

1 Draw smooth&accurate curves, no blind area, breakpoints, jump points, pause and other undesirable phenomena.

2 Aluminum alloy shell with strong stability, fast response(less than 10ms)

3 USB interface, Intelligent automatic calibration, drive-free and maintenance-free.

4 Without driver, supporting plug and play.

5 Draw smooth&accurate curves, no blind area, breakpoints, jump points, pause and other undesirable phenomena.

6 Light-resistant design, can be suitable for internal and external linked environment, widely used to financial telecom service,advertisement

show, industrial control, public query, self-service, E-education, and games etc.
