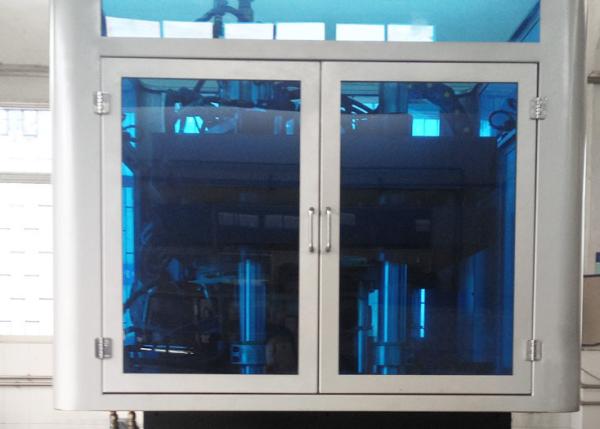

Blow Tech PET Single Stage Blow Molding Machine 50ml 3500bph 4 Cav ISBM Machine
Blow Tech PET Single Stage Blow Molding Machine 50ml 3500bph 4 Cav ISBM Machine
Blow Tech PET Single Stage Blow Molding Machine 50ml 3500bph 4 Cav ISBM Machine
Blow Tech PET Single Stage Blow Molding Machine 50ml 3500bph 4 Cav ISBM Machine
Specifications
Brand Name :
JASU
Model Number :
ISB 800AN-3
Certification :
CE, ISO, BV, SGS, UKAS, LAF
Place of Origin :
Guangzhou, China Mainland
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
500 Sets Per Month
Delivery Time :
34-50 Days
Packaging Details :
Wooden Case
Products Name :
Bottle Blower Machine Price, Printlink PET Blowing Machine, Stretch Blow Moulding Process
Use :
PET Bottle Automatic Production, PET Bottle Manufacturing, Bottling Line
Peripherals :
Air Compressor, Water Chiller, Mold Temperature Controller
Serve For :
Empty Plastic Bottles, Empty PET Bottles, Empty Spray Bottles, Empty Cosmetic Bottles
Applicable Resins :
PET, PETG, PC, PCTG, TRITAN, SK, and Many Other Thermoplastic plastics
Machine Type :
Plastic Machines, Packaging Machines
Cavity :
4 cavity
Dimension (L*W*H) :
4200*1750*3400 mm
Description
Bottle Blower Machine Price, Printlink PET Blowing Machine, Stretch Blow Moulding Process
Why PET blowing machine by stretch blow moulding process

It carries out the functions of transferring the preforms from the injection to the blow moulds, blowing them into containers and removing the finished containers.

The core component of the one-step injection (stretch) blowing process is a triangular turntable, which rotates at 120 degrees.

The plastic melt is injected into the parison under low injection pressure, and the neck of the bottle is precisely shaped.

After proper control, the mold is opened and the mandrel and parison are transferred to the stretch/blowing station.

Compressed air is then blown into the stretched parison to expand to the bottles mold.
Once the bottle is cooled the mold is opened and the finished bottle is emptied from the mold cavity.
This technique is most effective in specialty applications, such as wide mouthed jars, where very high production rates are not a requirement.
Conveying preforms automatically with conveyor.
Stable performance with advanced PLC.
Automatic production, no need to remove burrs, no need to transport preform, greatly save raw material and labor costs.
Without the need to outsource preforms or for additional capital investment in injection machinery purchase, the single-stage process provides advantages of lower operational cost and occupies less floor space (No need for preform storage).
Persent perfect looking mouth, bottom and better tansparence and high rigidity.
Very even wall thickness, clarity and rigidity.
Ensured flatness of both mouth and high precision of the internal and external diameter and the thread of bottle neck, without any scrap or scratches.
The final bottles are of top-grade and exquisite, with uniform wall thickness, clear surface and almost invisible parting line.

Data Sheet of JASU Injection Stretch Blow Moulding Machine (ISBM) / Stretch Blow Moulding Machine

Item Unit Machine Type
ISB 800AN-3
Injection Part Screw Diameter mm 50
Screw L/D Ratio L/D 20.5:1
Screw Speed r/min 0-150
Theoretical Injection Capacity cm3 481
Injection Pressure MPa 176
Max. Hydraulic Pressure Kg/cm 140
The Actual Injection Quantity g(ps) 452
Oz 16
Screw Stroke mm 245
Clamping Part Blow Clamping Force KN 80
Clamp Tonnage KN 400
Wheel Diameter mm 800
Max. Height PP, PET, PETG, Tritan, PS, PC mm 200
PC, PETG, Tritan, PS mm 220
Open Vertical Mode Trip mm 570
Others Max. Pump Pressure MPa 16
Servo Motor Kw 22
Mode Opening/Locking Motor (Double Pump) Kw 22
Electric Power Kw 12.2
Tank Volume L 420
Dimension of Machine m 4.2*1.75*3.4
Machine Weight T 6
--Parameters are subject to change without prior notice.
--Providing PC, PET, PP, PS, PETG, TRITAN screw barrels according to customers' requirements.

Blow Tech PET Single Stage Blow Molding Machine 50ml 3500bph 4 Cav ISBM Machine

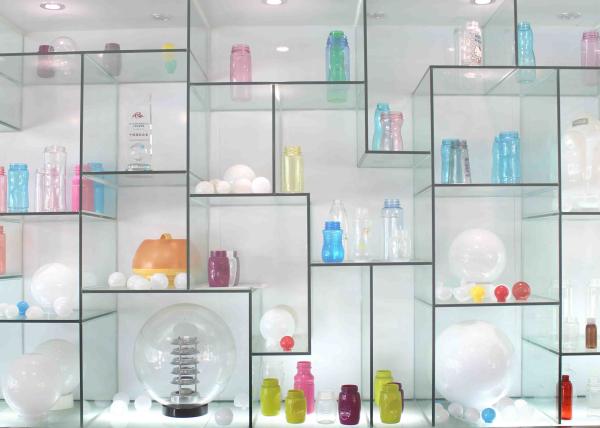

PET blowing machine by stretch blow moulding process is widely used for various plastic materials and has broad application prospects

Injection blowing molding is suitable for PET, High transparent PP, PCTG, PETG, SAN, PC, PMMA, PS, Tritan (BPA Free)

Widely used for manufacturing bottles for pharmaceutical, healthcare, food, beverages, cosmetics, lampshade and other applications.

Cosmetics Packaging: mascara, lotion, cream etc.

Pharmaceuticals: eye drops, medicine bottle, pills, oral liquid, intravenous drip bottles etc.

Baby Feeding Bottles, Spice, Liquor, Carbonated Drink, Beverage Bottles etc

Blow Tech PET Single Stage Blow Molding Machine 50ml 3500bph 4 Cav ISBM Machine

Why JASU Precision Machinery?


We are THE FIRST to manufacture One Stage Injection Stretch Blow Molding Machine in China on basis of digestion and absorption of the advanced technology from Japan and Germany.
Manufacturer/Direct Factory with production base takes 24000m2.
Own highly qualified technical staffs (20-30 persons) and R/D center.
Obtained a number of technical patents.
Market network throughout the country , and export to many countries of East Europe, South America, South Africa etc.
Our machine enjoyed high reputation among customers.
Overseas sales increase 33% annually.
Service technicians (holding visa and passport) are on call and able to serve on site and instruct via voice and videos.

Blow Tech PET Single Stage Blow Molding Machine 50ml 3500bph 4 Cav ISBM Machine

Question & Answer


Q1: Are you a factory or trading company?
A1: We are established in 2003, a actual factory and manufacturer in the line of injection blow molding machine for 18 years.
Q2: Where is your factory located? How can I visit you?
A2: Our factory is located in Panyu District, Guangzhou, Guangdong Province, China, about 48 minutes by high-speed railway from Hong Kong.
5 minutes driving away from Shiqiao subway station.
We can book hotel for you and pick you up from CAN BAIYUN airport or Guangzhou south railway station.
Q3: How about the payment term?
A3: Advancement (subject to our marketing strategy and both parties' discussion) and settle the balance payment prior to delivery.
Q4: What about your main market?
A4: Our machines were sold well in China, also exported and enjoyed a good reputation among customers from Europe, Russia, Southeast Asia, Middle and South America, Africa etc.
Our customers widely spread over Russia, Italy, Poland, Turkey, Netherlands, Sweden, Bulgaria, Brazil, Ecuador, Thailand, India, Myanmar, Malaysia, Vietnam, Cambodia, Egypt, Algeria, South Africa, Ivory Coast, Philippines, Bangladesh......
Q5: How does your factory do regarding quality?
A5: Quality is the most important principle. JASU people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification. Patents and many other certificates obtained also tells this.
Q6: What about warranty and do the engineers available to overseas?
A6: One year warranty. During this period, if you need any support on installation, adjustment , operation or maintenance, our engineers can go abroad to fix for you.
Q7: Others?
A7: We will request the working voltage and power frequency at the buyer's side when he placing the order.
Each order will be fulfilled as a turn key project of machine.

  1. We will check and test the machine and send the video to the customer for reference prior the delivery.
  2. Attache/send an operational manual in English version with the shipment.
  3. To use the machine only need to connect power and connect to the air supply and water supply according to the manual or video instructions if requested.
  4. Service technicians are on call to instruct via voice and videos. They all hold visa and passport and be able to serve on site.​
