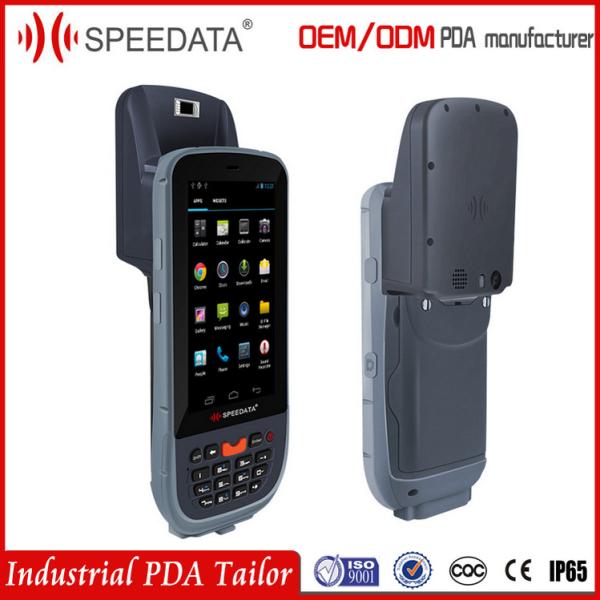

5200mAh Li-Battery Fingerprint Reader Terminal PDA with RFID Reader 2D Barcode Scanner for Android 5.1 4G LTE
5200mAh Li-Battery Fingerprint Reader Terminal PDA with RFID Reader 2D Barcode Scanner for Android 5.1 4G LTE
5200mAh Li-Battery Fingerprint Reader Terminal PDA with RFID Reader 2D Barcode Scanner for Android 5.1 4G LTE
5200mAh Li-Battery Fingerprint Reader Terminal PDA with RFID Reader 2D Barcode Scanner for Android 5.1 4G LTE
5200mAh Li-Battery Fingerprint Reader Terminal PDA with RFID Reader 2D Barcode Scanner for Android 5.1 4G LTE
5200mAh Li-Battery Fingerprint Reader Terminal PDA with RFID Reader 2D Barcode Scanner for Android 5.1 4G LTE
5200mAh Li-Battery Fingerprint Reader Terminal PDA with RFID Reader 2D Barcode Scanner for Android 5.1 4G LTE
5200mAh Li-Battery Fingerprint Reader Terminal PDA with RFID Reader 2D Barcode Scanner for Android 5.1 4G LTE
5200mAh Li-Battery Fingerprint Reader Terminal PDA with RFID Reader 2D Barcode Scanner for Android 5.1 4G LTE
5200mAh Li-Battery Fingerprint Reader Terminal PDA with RFID Reader 2D Barcode Scanner for Android 5.1 4G LTE
Specifications
Brand Name :
Speedata
Model Number :
KT45Q-C8M-TCS1B
Certification :
ISO9001,CCC,CQC,IP65,CE
Place of Origin :
Beijing,China
MOQ :
1 set
Payment Terms :
Western Union, MoneyGram,Paypal
Supply Ability :
5000 pcs per month
Delivery Time :
3-7 days after payment
Packaging Details :
1 unit independent packing with standard carton box,accessories(battery/charger/USB data cable/protection cover/hand strap)
Fingerprint reader :
STQC certificate
CPU :
Quad-core 1.3Ghz ARM® Cortex-A53 (LPDDR2 and LPDDR3)
Camera :
8MP
Memory :
8GB ROM 1GB RAM
Bluetooth :
v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE)
WiFi :
2.4Ghz 802.11 b/g/n
WWLAN :
FDD B1B3B7 TDD B38B39B40 WCDMA B1B2B5B8 EVDO BC0 GSM B2B3B5B8
External Interface :
USB HOST/RS232(Customized)
Description
5200mAh Li-Battery Fingerprint Reader Terminal PDA with RFID Reader 2D Barcode Scanner for Android 5.1 4G LTE
specification

1, Memory Capacity: 8GB ROM, 1GB RAM.

2, Wireless functions: WIFI, BLUETOOTH, GPS (support full AGPS).

3, Camera function: 8MP, support still image and video capture.

4, Powerful productivity to make sure the delivery time.

5, Free SDK and 13 months warranty, technical support.

Android OS
OS Android 5.1
Hardware
Core board CPU Quad-core 1.3Ghz
ARM® Cortex-A53 (LPDDR2 and LPDDR3)
WWLAN FDD B1B3B7
TDD B38B39B40
WCDMA B1B2B5B8
EVDO BC0
GSM B2B3B5B8
Flash ROM 8GB
RAM 1GB DDR3
Motherboard
Display @ 4.5inch IPS 480*854
touch screen Multi-point touch capacitive screen
Form Factor Bar type classical PDA,Industrial appearance
GPS Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS
DGPS (please check options)
Bluetooth v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE)
WiFi 2.4Ghz 802.11 b/g/n
External Interface USB HOST/RS232(Customized)
Protection class IP65
Drop resistance level 1.5m
Camera Function Camera 8MP Camera
Video Support still image and video capture
Sensor G-sensor YES
Keypad Front 17
Side 4
Interface Mini-USB connector USB2.0 connection
SIM card slot *2
TF card slot Yes
power jack Yes
Audio Jack Yes
Battery Type rechargeable Li-ion battery 4500mAh
Standby Time 500hours
Calls Time Up to 6hours
Charging Time 4 hours
Physical Characteristics Dimension 175*76*27mm
Weight >400g with battery (according config)
OPTIONS
DGPS ublox LEA-6T (with RTK)
MSR(Optional) Compatible with one, two, three track(without PCI, EMV security certification)
PSAM(Optional) ISO7816 (SIM card interfance)
IC card reader(Optional) ISO7816 ID-1
Fingerprint reader option 1 TCS1G
option 2 TCS1B
Printer 2 inch Direct thermal line printing
Fingerprint Module Specifications
TYPE2 TCS1B
Touchchip Sensor Interface 8 bit parallel interface
20-pin flex connector
Power(typical) 4.5-5.5 supply
20mA during capture
Touchchip Module Interface Options 5-soldier pads for USB only @ 5V
12-pin flex: USB,SPI,UART @ 3.3V (optional)
Power(typical) 3.0V-3.6V
80mA(capture,match)
Standby(USB) :1350 uA
Standby(UART/SPI) : 1150uA
Wake-up time: <15 ms (Sleep to imaging)
Digital ID Hardware Engine Biometric Companion Processor - 1:1 match time ~50uS per template
- 1:100 match time <2s typ.
- On-board NVM storage for up to 100 templates
- More than 100,000 erase/write cycles
- More than 20 years data retention
Common Spec Fingerprint Image 12.8×18.0mm(256×360pixels)
508dpi,8-bit greyscale
Sensor Coating SteelCoat(black coating) EIM-Lite
Package Size 23 mm x 35 mm x 4.1 mm
ESD IEC 61000 - 4.2 level 4, +/- 15KV air, +/- 8IKV contact
Ingress Protection IP 65 (water/dust protection)
Environmental • Operating temp: -30 to +70 C
• Storage temp: -30 to + 125 C
• Humidity: 5% - 93% non-condensing
• ROHS, low halogen
Certificate STQC

Successful Solutions

We have a strong R&D team for not only hardware but also software, having developed the following solutions for our customers:

1.Logistics & Express

7.Geomatics & Surveying

13.Surveying and mapping

2.Transportation

8.Product tracking

14.Agriculture

3.Electric meter readings

9.Health & pharmaceutical industry

15.Water conservation

4.Network community management

10.Mobile police service

16.Animal tracking & research

5. Storage & Distribution

11.Tobacco Logistics

17.Retail chain

6.Petrochemical inspection

12.Fixed-assets management

 ……

Advantages of KT45Q

8 years' experience of R&D and OEM/ODM services for customers all over the world.

1. Price ranges: Factory direct with competitive and wholesale price with different demands

2. Modules Options:

Over 18 kinds of module functions are optional to meet your demands

3. Three Operation Systems:

Three OS can be optional: Win Mobile/CE and Android

4. Colors Options:

Four kinds of colors to choose: yellow, green, grey and blue.

5. Customization:

Support OEM/ODM services with LOGO or Mainboard for our customers by Foxconn

6. Wide Solutions:

It supplies wide and various industrial solutions to make effective enterprises.
