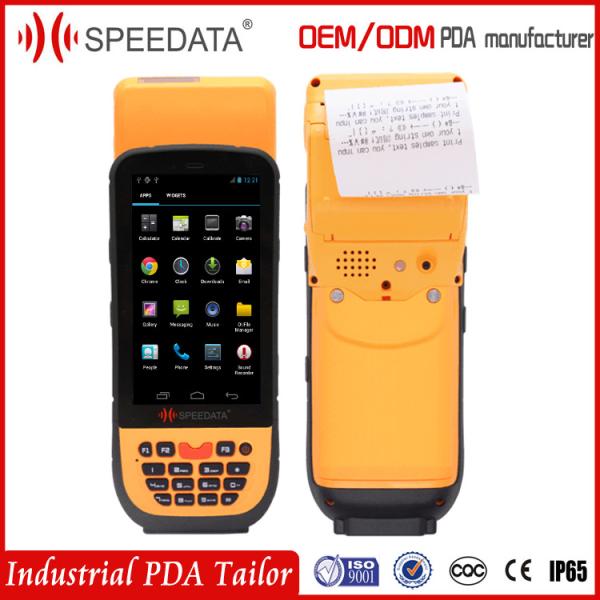

Portable Wireless All in one Printer Terminal PDA with Bluetooth Wifi 4G Sim Card Modules
Portable Wireless All in one Printer Terminal PDA with Bluetooth Wifi 4G Sim Card Modules
Portable Wireless All in one Printer Terminal PDA with Bluetooth Wifi 4G Sim Card Modules
Portable Wireless All in one Printer Terminal PDA with Bluetooth Wifi 4G Sim Card Modules
Portable Wireless All in one Printer Terminal PDA with Bluetooth Wifi 4G Sim Card Modules
Portable Wireless All in one Printer Terminal PDA with Bluetooth Wifi 4G Sim Card Modules
Portable Wireless All in one Printer Terminal PDA with Bluetooth Wifi 4G Sim Card Modules
Portable Wireless All in one Printer Terminal PDA with Bluetooth Wifi 4G Sim Card Modules
Portable Wireless All in one Printer Terminal PDA with Bluetooth Wifi 4G Sim Card Modules
Portable Wireless All in one Printer Terminal PDA with Bluetooth Wifi 4G Sim Card Modules
Specifications
Brand Name :
Speedata
Model Number :
KT45Q-B2-C8M-PE48
Certification :
ISO9001,CCC,CQC,IP65,CE
Place of Origin :
Beijing,China
MOQ :
1 set
Payment Terms :
Western Union, MoneyGram,Paypal
Supply Ability :
10000 pcs per month
Delivery Time :
3-7 days after payment
Packaging Details :
1 unit independent packing with standard carton box,accessories(battery/charger/USB data cable/protection cover/hand strap)
printer :
2 inch Direct thermal line printing
Memory Capacity :
8GB ROM,1GB RAM
Display :
4.5 inch IPS 480*854
GPS :
Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS
Bluetooth :
v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE)
WiFi :
2.4Ghz 802.11 b/g/n
External Interface :
USB HOST/RS232(Customized)
Battery :
rechargeable Li-ion battery 5200mAh
Description
Portable Wireless All in one Printer Terminal PDA with Bluetooth Wifi 4G Sim Card Modules
Portable Wireless All in one Printer Terminal PDA with Bluetooth Wifi 4G Sim Card Modules
Product Description

1, Key feature: Basic functions as Smart phone.

2, Memory Capacity: 8GB ROM, 1GB RAM.

3, Wireless functions: WIFI, BLUETOOTH, GPS (support full AGPS).

4, Camera function: 8MP, support still image and video capture.

5, Wide range of purpose: Animal/container/tool identification; bus card, attendance card; goods tracking, vehicle management, asset management, high speed charge; logistics&express, retail, FMCG; print railway ticket, print bar/QR code.

Android OS
OS Android 5.1
Hardware
Core board CPU Quad-core 1.3Ghz
ARM® Cortex-A53 (LPDDR2 and LPDDR3)
WWLAN FDD B1B3B7
TDD B38B39B40
WCDMA B1B2B5B8
EVDO BC0
GSM B2B3B5B8
Flash ROM 8GB
RAM 1GB DDR3
Motherboard
Display @ 4.5inch IPS 480*854
touch screen Multi-point touch capacitive screen
Form Factor Bar type classical PDA,Industrial appearance
GPS Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS
DGPS (please check options)
Bluetooth v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE)
WiFi 2.4Ghz 802.11 b/g/n
External Interface USB HOST/RS232(Customized)
Protection class IP65
Drop resistance level 1.5m
Camera Function Camera 8MP Camera
Video Support still image and video capture
Sensor G-sensor YES
Keypad Front 17
Side 4
Interface Mini-USB connector USB2.0 connection
SIM card slot *2
TF card slot Yes
power jack Yes
Audio Jack Yes
Battery Type rechargeable Li-ion battery 4500mAh
Standby Time 500hours
Calls Time Up to 6hours
Charging Time 4 hours
Physical Characteristics Dimension 175*76*27mm
Weight >400g with battery (according config)
OPTIONS
DGPS ublox LEA-6T (with RTK)
MSR(Optional) Compatible with one, two, three track(without PCI, EMV security certification)
PSAM(Optional) ISO7816 (SIM card interfance)
IC card reader(Optional) ISO7816 ID-1
Fingerprint reader option 1 TCS1G
option 2 TCS1B
Printer 2 inch Direct thermal line printing
Far Infrared Meter Reading (Optional) IEC62056-21(IEC1107) communication protocol
433Mhz module Require customers to provide 433Mhz wireless modules or specifications.
zigbee Require customers to provide 433Mhz wireless modules or specifications.
RFID Reader option 1 LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX)
option 2 LF RFID(125KHz)
option 3 HF RFID(13.56MHz ISO 14443A/B ISO 15693)
option 4 NFC(include 13.56MHz ISO 1443A/B )
option 5 UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset
option 6 UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) ----with R2000 shipset, Long distance reader.
option 7 UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) -with PR92000 shipset
Barcode scanner option 1 NEWLAND:EM1300(1D barcode reader)
option 2 NEWLAND:EM3000(1D/2D barcode reader)
option 3 Symbol:SE955(1D laser barcode reader)
option 4 HoneyWell:N4313 (1D laser barcode reader)
option 5 Symbol: SE4500(1D&2D barcode reader)
Printer Module Specifications
Printing method Direct thermal line printing
Paper width 57mm
Print width 48mm
Resolution Ration 8 dots/mm (384 dots/line )
Life of printing head 5,000,000 -15,000,000 character lines
Printing speed 40-60mm/sec
Character size 8*16dots , 12*24dots
Paper supplied 57mm wide , 22mmø
Interface Serial RS232C/TTL
Operating temperature 0℃--50℃
Storage temperature -20℃ -- 60℃
Operating humidty 10%--80%
Storage humidty 10%--90%

Application of KT45Q printer

  • Transportation tracking
  • Meat product tracking
  • Mobile police service
  • Tickets checking
  • Tax collecting in government
  • Bar code QR code printing
  • Website printing

Advantages of KT45Q

1. As a hardware PDA producer, We also offer OEM/ODM design and manufacturing service for hardware required for Data collector terminal PDA, including

  • Brand & Logo
  • Different colors
  • Multiple modules integration
  • Wide industrial and business solutions
  • Competitive and diverse price ranges

8 years' experience of R&D and OEM/ODM services for customers all over the world.

2. As for software integration , We not only support 18 kinds of multiple modules but also supply 3 compatible operating systems. Those Including

Android, Windows mobile 6.5, Windows CE 6.0
