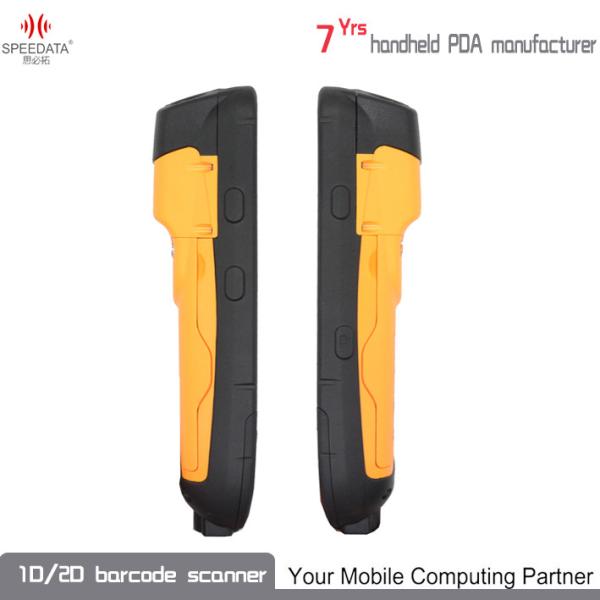

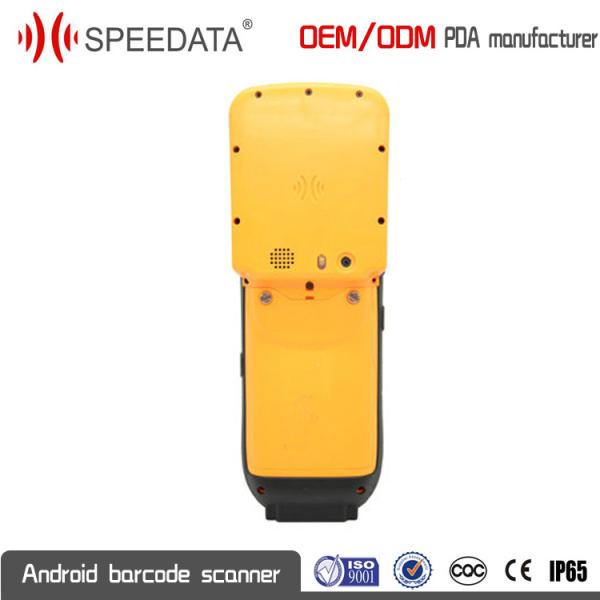

Custom grey or yellow Industrial NFC Rfid Reader Portable with 8GB ROM 1GB RAM
Development Environment | |
Operating System | Android 4.4.2 |
SDK | Software Development Kit |
Language | Java |
Fundamental Characteristics | |
CPU | ARM® Cortex-A7 MPCoreTM (LPDDR2 and LPDDR3) Quad-core 1.3Ghz |
Memory | 1GB DDR3 RAM + 8GB Frash ROM |
Storage | Micro SD/TF card max.32GB expansion |
Display | 4.5-inch IPS 480 * 854 Multi-point touch capacitive screen |
Communications | |
WWLAN | GSM band 850/900/1800/1900MHz, |
Class 12 GPRS, | |
EDGE UMTS 850/900/1900/2100MHz HSPA | |
WiFi | 2.4Ghz 802.11 b/g/n |
Bluetooth | V2.1+EDR / 3.0+HS / V4.0 Low Energy(LE) |
GPS | Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS |
DGPS (please check options) | |
Physical Characteristics | |
Dimensions | 175 * 76 * 28mm |
Weight | More 400g (includes main battery) |
Expansion Slots | 1*PSAM, 2*SIM |
Battery | rechargeable li-ion battery 4500mAh 3.7V |
Or rechargeable li-ion battery 2250mAh 7.4V (if with printer) | |
500hours standby time, Up to 6hours calling time, 4hours charging time | |
Camera | 8MP Camera |
Video | Support still image and video capture |
Audio | 3.5mm 4way plug |
Keypad | Front 17keys, Side 4keys |
Interfaces | 1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack |
USB Host (Optional), RS-232 interface (Optional) | |
User Environment | |
Operating Temp. | -10 to 50℃ |
Humidity | 10%RH - 90%RH (Non-condensing) |
Protection class | IP65 |
Drop resistance level | 1.5M |
Barcode scanners (optional ) | |
1D scanner | NewLand:EM1300 1D Infrared barcode scanner -- most Cost-effective module |
HoneyWell:N4313 1D Laser barcode scanner | |
Symbol:SE955 1D Laser barcode scanner | |
1D/2D scanner | NewLand:EM3095 2D Scanner |
Symbol:SE4500SR 2D Scanner | |
RFID readers(optional) | |
LF RFID reader | 134.2khz, ISO 11784/11785, FDX-B/HDX (Optional 1) |
125khz (Optional 2) | |
HF RFID reader | 13.56MHz, ISO 14443A/B, ISO 15693 |
NFC reader | Include 13.56MHz, ISO 1443A/B |
UHF RFID reader | 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset |
860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with R2000 shipset, Long distance reader | |
Biometric fingerprint (optional ) | |
Fingerprint | UPEK TCSI (meet the FBI’s FIPS-201) (Optional 1) |
Fingerprint | UPEK TCS2SS (Optional 2) |
Other Modules (optional ) | |
DGPS | Ublox LEA-6T (with RTK) |
PSAM | ISO7816 (SIM) |
MSR | Compatible with one, two, three track(without PCI, EMV security certification) |
IC card reader | ISO7816 ID-1 |
Printer | Integrete 2inch Direct thermal line printing |
Far Infrared Meter Reading | IEC62056-21 (IEC1107) communication protocol |
433Mhz | Require customers to provide 433Mhz wireless modules or specifications |
Zigbee | Require customers to provide 433Mhz wireless modules or specifications |
More details of KT45
1. Speedata intelligent terminal PDA has an open platform and flexible function configuration, It has the most popular and current operating system with Android4.4.2,1D/2D barcode, RFID, GPS, WLAN, far infrared, fingerprint, print function module ,etc. it's free to choose and conbine. we provide customized services for the best terminal also on the circuit aspect to realize the business logic.
2. Handheld terminal has three frequency range respectively, it supports a long-range UHF reader functions as well as 2.4G RFID reader with ultra-long-range.
3. PDA Products are configured by multiple modules, we can increase or decrease the corresponding configurations according to the actual needs of customers as well as providing circuit OEM/ODM and customized services for clients to provide the best software support on business logic.
A listed company, stock code:832442, Global market Speedata Europe in Dusseldorf, Germany is being prepared. Market Covers Europe, America, Mid-east, Asia, Africa.Professional R&D team, offer ODM service, customization,technical support,warranty, SDK,and related service.
As a OEM/ODM and R&D manufacturer of PDA, we support you:
Less than 10pcs samples are applied each time for our clients, the cost is a little bit higher than the wholesale price.
If more than 100pcs, it'll be much more cheap.the more you order,the lower cost it'll be, and the cheaper price you'll get.
2. Quality
Color issues: All the PDA products are 100% absolutely objects photographed,but because of the Camera-technology, Light,Pixels and other factors, there'll be a little bit difference with the real product. Please take the real goods for reference or make sure with our sales in advance.
Qualifications: Our PDAs are produced according to the ISO9001 quality management system, and all the products have passed through IP65,CCC,and ROHS.

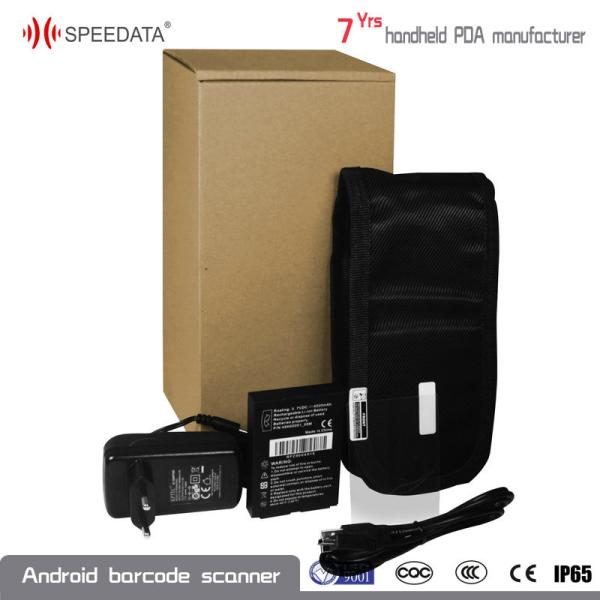

Packages: We offer 2 different kind of packaging box. one is for KT40 with brand carton, and another is ordinary carton, in which both are special packaging materials of cardboard EPE and stereotypes cotton to reinforce and protect PDAs.
3. Stocks and Delivery
If you want PDAs like KT40 which are always in stock,it may needs 3-5 days to delivery.we have KT40 in stock because it's a conventional product only with 2 modulars of 1d/2d barcode scanner and NFC reader.
If you want OEM/ODM products with particular functions, it may needs 5-10 days more to produce and delivery.
More specific details. please contact our sales.
4. Transportation
We always choose the competitive and safe shipping agent like DHL,UPS and Fedex and any other designated shipping agent by the customers.
If it goes smoothly with the customs clearance, you'll get the goods in 3-7 days.
5. After-Sale Service
We support 13 months warranty,during this period,it's exactly FREE to replace you a quiet new device terminal if your machines have serious irreversible functional damage.
Freight fare is half paid of the round trip by both sides. Customer pay the freight fee when they are sending the machines to china,and we'll pay it when returning them back to the clients.
