Specifications
Brand Name :
Speedata
Model Number :
KT45-C8M-UR2K
Certification :
ISO9001,CQC,CE,IP65
Place of Origin :
Beijing Speedata in China
MOQ :
1 set
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
5000pcs/months
Delivery Time :
3-7 work days
Packaging Details :
independent packing with standard carton box,accessories(battery/charger/USB data cable/protection cover/hand strap)
OS :
Android 4.4.2
CPU :
Quad-core 1.3Ghz ARM® Cortex-A7 MPCoreTM (LPDDR2 And LPDDR3)
Memory Capacity :
8GB ROM,1GB RAM
WWLAN :
GSM Band 850/900/1800/1900MHz, Class 12 GPRS, EDGE UMTS 850/900/1900/ 2100MHz HSPA
Display :
4.5 Inch IPS 480*854
Touch Screen :
Multi-point Touch Capacitive Screen
GPS :
Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS
Bluetooth :
V2.1+EDR / 3.0+HS / V4.0 Low Energy (LE)
WiFi :
2.4Ghz 802.11 B/g/n
External Interface :
USB HOST/RS232(Customized)
Protection Class :
IP65
Drop Resistance Level :
1.5m
Camera :
8MP
Battery :
Rechargeable Li-ion Battery 4500mAh
Weight :
175*76*27mm>400g With Battery (according Config)
Description

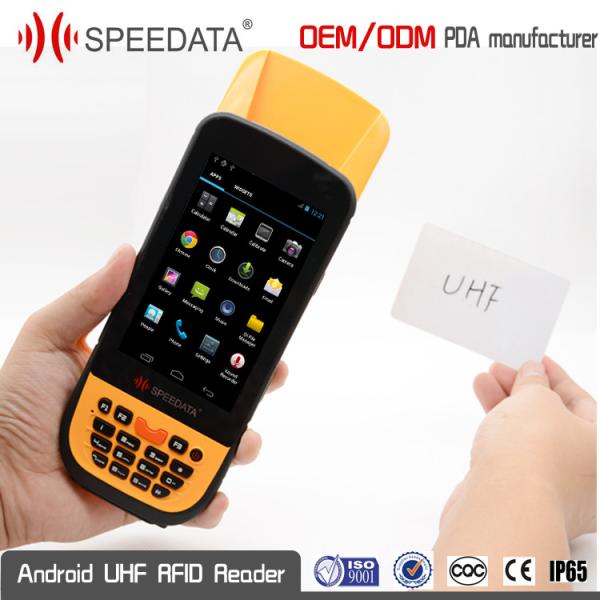

Rugged Android OS hanndheld UHF RFID Reader Long Range up to 5m for asset tracking

Rugged Android OS hanndheld UHF RFID Reader Long Range up to 5m for asset tracking

SPECIFACTION

KT45 Android with Camera+UHF
model number : KT45-C8M-UR2K
android OS
OS Android 4.4.2
Hardware
Core board CPU Quad-core 1.3Ghz
ARM® Cortex-A7 MPCoreTM (LPDDR2 and LPDDR3)
WWLAN GSM band 850/900/1800/1900MHz, Class 12 GPRS, EDGE
UMTS 850/900/1900/ 2100MHz HSPA
Flash ROM 8GB
RAM 1GB DDR3
Motherboard
Display 4.5inch IPS 480*854
touch screen Multi-point touch capacitive screen
Form Factor Bar type classical PDA,Industrial appearance
GPS

Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN).

Support Full AGPS

Bluetooth v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE)
WiFi 2.4Ghz 802.11 b/g/n
MSR(optional ) Compatible with one, two, three track. (without PCI, EMV security certification.)
PSAM(Optional) ISO7816 (SIM card interfance)
IC card reader(optional) ISO7816 ID-1
Fingerprint reader TCS1
Printer 2 inch Direct thermal line printing
Far Infrared Meter Reading (Optional) IEC62056-21(IEC1107) communication protocol
433Mhz module(Optional)

Require customers to provide 433Mhz wireless modules or

specifications.

zigbee (Optional) Require customers to provide 433Mhz wireless modules or specifications.
RFID Reader option 1

LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX) -- reading

distance 10cm

option 2 LF RFID(125KHz) -- reading distance 10cm
option 3 HF RFID(13.56MHz ISO 14443A/B ISO 15693) -- reading distance 5cm
option 4 NFC(include 13.56MHz ISO 14443A/B )
option 5

UHF RFID 860-960MHZ ISO 18000-6C---with IMPINJ R2000

shipset 60mm antenna---reading distance up to 5m

option 6 UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A B compatibility in direct mode----with AS3992 shipset - reading distance up to 3m
barcode scanner option 1 NEWLAND:EM1300(1D barcode reader-- Most cheapest )
option 2 NEWLAND:EM3095(1D/2D barcode reader-- hardware decoding)
option 3 symbol:SE955(1D laser barcode reader)
option 4 Symbol: se4500(1D&2D barcode reader-- software decoding)
External Interface USB HOST/RS232(Customized)
Protection class IP65
Drop resistance level 1.5m
Camera Function YES 8MP Camera
Video Support still image and video capture
Sensor G-sensor LIS3DH
Compass AK09911C
Gyro MPU3050C
Light STK3410
Keypad Front 17
Side 4
Interface Mini-USB connector USB2.0 connection
SIM card slot *2
TF card slot Yes
power jack Yes
Audio Jack Yes
Battery Type rechargeable Li-ion battery 4500mAh
Standby Time 500hours
Calls Time Up to 6hours
Charging Time 4 hours
Physical Characteristics Dimension 175*76*27mm
Weight >400g with battery (according config)
Speedata OEM serivice for your needs---your industrial PDA tailor

Company information

Beijing SPEEDATA is committed to provide advanced data acquisition terminal in each field. after long-term accumulation, we have built a comprehensive and professional technology team and service, has a wealth of experience in the field .whatever you need GIS ,Automatic identification technology or mobile devices , our highly technical conformity ability and professional service will provide the most suitable solution for you.

Company "Speedata" brand products sell well both domestic and abroad .we have many sales outlets in domestic market ,clients contains: Hanting hotel,bright dairy, unilever, hainan mobile, Qinghua Tongfang, logistics etc ; Overseas customers in USA,,Mexico,Italy , Egypt,Ukraine and other countries.

Why choose us
1. Experienced

  • More than 8 years experience in production(OEM/ODM included), R&D and overseas sales, we have been a good manufacturer and business partner.

2. High Quality Products

  • High protection grade: IP65 and 1.5M drop resistance
  • All of our products meet the CE standard.
  • Super Abilities of integrations and productions

3. Satisfied Service

  • Before-Sale Service: quick response within ONE working day; patient communication
  • On-Sale Service: delivery on time,quality and quantity assured
  • After-Sale Service: 13 months warranty period;
  • Besides, support complete SDK info and technology service during your project.

4. OEM/ODM design

  • Brand & Logo
  • Different colors
  • Multiple modules integration
  • Wide industrial and business solutions
  • Competitive and diverse price ranges

Rugged Android OS hanndheld UHF RFID Reader Long Range up to 5m for asset tracking

1. Samples
All the price is excluding the freight fee.

Less than 10pcs samples are applied each time for our clients, the cost is a little bit higher than the wholesale price.
If more than 100pcs, it'll be much more cheap.the more you order,the lower cost it'll be, and the cheaper price you'll get.

2. Quality
Color issues: All the PDA products are 100% absolutely objects photographed,but because of the Camera-technology, Light,Pixels and other factors, there'll be a little bit difference with the real product. Please take the real goods for reference or make sure with our sales in advance.
Qualifications: Our PDAs are produced according to the ISO9001 quality management system, and all the products have passed through IP65,CCC,and ROHS.
Packages: We offer 2 different kind of packaging box. one is for KT40 with brand carton, and another is ordinary carton, in which both are special packaging materials of cardboard EPE and stereotypes cotton to reinforce and protect PDAs.
3. Stocks and Delivery
If you want PDAs like KT40 which are always in stock,it may needs 3-5 days to delivery.we have KT40 in stock because it's a conventional product only with 2 modulars of 1d/2d barcode scanner and NFC reader.
If you want OEM/ODM products with particular functions, it may needs 5-10 days more to produce and delivery.
More specific details. please contact our sales.
4. Transportation
We always choose the competitive and safe shipping agent like DHL,UPS and Fedex and any other designated shipping agent by the customers.
If it goes smoothly with the customs clearance, you'll get the goods in 3-7 days.
5. After-Sale Service
We support 13 months warranty,during this period,it's exactly FREE to replace you a quiet new device terminal if your machines have serious irreversible functional damage.
Freight fare is half paid of the round trip by both sides. Customer pay the freight fee when they are sending the machines to china,and we'll pay it when returning them back to the clients.
