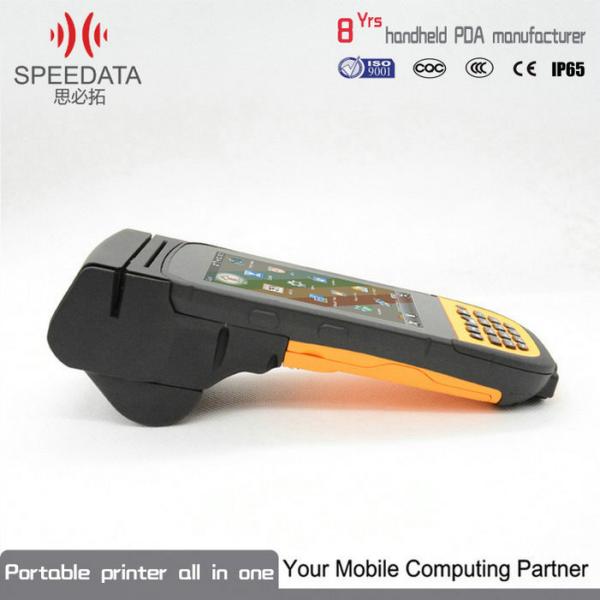

Mobile Handheld PDA Thermal Printer With Wifi Bluetooth GPRS GPS for Railway ticket
Mobile Handheld PDA Thermal Printer With Wifi Bluetooth GPRS GPS for Railway ticket
Mobile Handheld PDA Thermal Printer With Wifi Bluetooth GPRS GPS for Railway ticket
Mobile Handheld PDA Thermal Printer With Wifi Bluetooth GPRS GPS for Railway ticket
Mobile Handheld PDA Thermal Printer With Wifi Bluetooth GPRS GPS for Railway ticket
Mobile Handheld PDA Thermal Printer With Wifi Bluetooth GPRS GPS for Railway ticket
Mobile Handheld PDA Thermal Printer With Wifi Bluetooth GPRS GPS for Railway ticket
Mobile Handheld PDA Thermal Printer With Wifi Bluetooth GPRS GPS for Railway ticket
Specifications
Brand Name :
Speedata
Model Number :
KT45-B2-C8M-PE48
Certification :
ISO9001,CCC,CQC,IP65
Place of Origin :
Beijing,China
MOQ :
1 set
Payment Terms :
Western Union, MoneyGram,Paypal
Supply Ability :
5000 pcs per month
Delivery Time :
3-7 days after payment
Packaging Details :
1 unit independent packing with standard carton box,accessories(battery/charger/USB data cable/protection cover/hand strap)
OS :
Android 4.4.2
CPU :
Quad-core 1.3Ghz ARM® Cortex-A7 MPCoreTM (LPDDR2 and LPDDR3)
WWLAN :
GSM band 850/900/1800/1900MHz, Class 12 GPRS, EDGE UMTS 850/900/1900/ 2100MHz HSPA
Memory Capacity :
8GB ROM,1GB RAM
Display :
4.5 inch IPS 480*854
Touch screen :
Multi-point touch capacitive screen
GPS :
Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS
Bluetooth :
v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE)
WiFi :
2.4Ghz 802.11 b/g/n
External Interface :
USB HOST/RS232(Customized)
Protection class :
IP65
Drop resistance level  :
1.5m
Camera :
8MP
Battery :
rechargeable Li-ion battery 4500mAh
Weight :
175*76*27mm>400g with battery (according config)
Description
Mobile Handheld PDA Thermal Printer With Wifi Bluetooth GPRS GPS for Railway ticket
Mobile Handheld PDA Thermal Printer With Wifi Bluetooth GPRS GPS for Railway ticket
Product Description->

KT45-C8M-PE48
android OS
OS Android 4.4.2
Hardware
Core board CPU Quad-core 1.3Ghz
ARM® Cortex-A7 MPCoreTM (LPDDR2 and LPDDR3)
WWLAN GSM band 850/900/1800/1900MHz, Class 12 GPRS, EDGE
UMTS 850/900/1900/ 2100MHz HSPA
Flash ROM 8GB
RAM 1GB DDR3
Motherboard
Display 4.5inch IPS 480*854
touch screen Multi-point touch capacitive screen
Form Factor Bar type classical PDA,Industrial appearance
GPS Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS
Bluetooth v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE)
WiFi 2.4Ghz 802.11 b/g/n
MSR(Optional) Compatible with one, two, three track. (without PCI, EMV security certification.)
PSAM(Optional) ISO7816 (SIM card interfance)
IC card reader(Optional) ISO7816 ID-1
Fingerprint reader option 1 UPEK TCS1 (meet the FBI’s FIPS-201)
option 2 UPEK TCS2SS
Printer (YES ) 2 inch Direct thermal line printing
Far Infrared Meter Reading (Optional) IEC62056-21(IEC1107) communication protocol
433Mhz module(Optional) Require customers to provide 433Mhz wireless modules or specifications.
zigbee (Optional) Require customers to provide 433Mhz wireless modules or specifications.
RFID Reader option 1 LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX) -- reading distance 10cm
option 2 LF RFID(125KHz) -- reading distance 10cm
option 3 HF RFID(13.56MHz ISO 14443A/B ISO 15693) -- reading distance 5cm
option 4 NFC(include 13.56MHz ISO 14443A/B )
option 5 UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset -- reading distance up to 3m
barcode scanner option 1 NEWLAND:EM1300(1D barcode reader-- Most cheapest )
option 2 NEWLAND:EM3095(1D/2D barcode reader-- hardware decoding)
YES symbol:SE955(1D laser barcode reader)
option 4 Symbol: se4500(1D&2D barcode reader-- software decoding)
External Interface USB HOST/RS232(Customized)
Protection class IP65
Drop resistance level 1.5m
Camera Function 8MP Camera
Support still image and video capture
Sensor LIS3DH
AK09911C
MPU3050C
STK3410
Keypad 17
4
Interface USB2.0 connection
*2
Yes
Yes
Yes
Battery rechargeable Li-ion battery 4500mAh
500hours
Up to 6hours
4 hours
Physical Characteristics 175*76*27mm
>400g with battery (according config)
Printer Module Specifications
Printing method Direct thermal line printing
Paper width 57mm
Print width 48mm
Resolution Ration 8 dots/mm (384 dots/line )
Life of printing head 5,000,000 -15,000,000 character lines
Printing speed 40-60mm/sec
Character size 8*16dots , 12*24dots
Paper supplied 57mm wide , 30mmø
Interface Serial RS232C/TTL
Operating temperature 0℃--50℃
Storage temperature -20℃ -- 60℃
Operating humidty 10%--80%
Storage humidty 10%--90%


Our Services->

As a OEM/ODM and R&D manufacturer of PDA, we support you:

  • Completely Free SDK and technical support for you.
  • ODM/OEM and 6 kinds of customization services according to your needs.
  • 13months warranty for your devices and other parts. and 6 months for the batteries. Exend warranty,it'll cost 0.5% for each per year.
  • Free maintenance of the devices and part of accessories replacement in the warranty .if out of the warranty, you'll have to pay the basic cost for them.
Company Information->

Beijing Speedata Technology Co., Ltd (stock code: 832442 ), founded in 2008, is a provider of IoT (Internet of Things) solutions and OEM/ODM manufacturer of wireless hardware terminal and software solution, focusing on such wireless network enabling technologies as 1D/2D Barcode scanner, RFID , 433M, MSR, ZigBee, PSAM, and IC card reader...

We are headquartered in Beijing, with sales/R&D offices in Shanghai, Shenzhen, Dalian, and Tianjin city of China, and two manufacturing facilities, one in Beijing and one in Tianjin.

At the same time, we successfully cooperated with Foxconn by OEM/ODM in Shenzhen.

OEM Service

1.As a hardware PDA producer, We also offer OEM/ODM design and manufacturing service for hardware required for Data collector terminal PDA, including

  • Brand & Logo
  • Different colors
  • Multiple modules integration
  • Wide industrial and business solutions
  • Competitive and diverse price ranges

8 years' experience of R&D and OEM/ODM services for customers all over the world.

2.As for software integration , We not only support 18 kinds of multiple modules but also supply 3 compatible operating systems. Those Including

  • The most popular Android 4.4 and Windows CE or Mobile
  • 1D/2D barcode scanner
  • LF/HF/UHF RFID as well as NFC RFID Function.
  • Biometric fingerprint reader
  • Thermal printer
  • DGPS/ PSAM/ 433M/ IC Card/ MSR/ IR Meter Reading

FAQ

Question 1: what's your barcode scanner MOQ?
Answer: the MOQ of speedata barcode scanner barcode scanner is 1 pcs.

Question 2: how long is the delivery time?
Answer: The delivery time of barcode scanner goods is different from quantities:
If 1~100 pcs, It's about 5--10 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.

Question 3: Would you like to supply 1 sample for testing?
Answer: Yes, Of course. We can provide 1 sample of barcode scanner PDA for your testing.

Question 4: What's the total price for 1 sample?
Answer: As a manufacturer of barcode scanner terminal PDA.the more you buy,the cheaper it'll be.
the sample price is a little bit higher than the common wholesale price.excluding the freight fee.

Question 5: Are you a manufacturer of barcode scanner PDA?
Answer: Yes, we are a chinese listed company of R&D and producing barcode scanner hardware and software. and also we cooperate with Foxconn for OEM.

Question 6: what kind of services do you support?
Answer:1.We provide you Free SDK and technical support for your barcode scanner.
2.we also provide ODM/OEM customization services according to your needs.
3.We support 13months Warranty for your devices and other parts. and 6 months for the batteries. Exend warranty,it costs 0.5% for each per year.

Question 7: what's for payment term and delivery term ?
Answer: 1.It's generally 30%-100% TT in advance for all orders for the payment term.
with supporting via bank card, Paypal or West Union.
2.FOB Shenzhen for Delivery term.

Question 8: who are your customers?
Answer: 1.That's quiet a serious question, but Our products are sold worldwide in South/North America, Europe, Asia, Africa Mid-east, etc.
2.The market share is increasing quickly every year and we get great feedback from our customers.
IF you need more information and details, Please Feel free to contact us. Thanks for your attention.
