Bar Code Scanner 1D 2D Reader Printer Terminal PDA Mobile Device GPRS GSM Wifi
Bar Code Scanner 1D 2D Reader Printer Terminal PDA Mobile Device GPRS GSM Wifi
Bar Code Scanner 1D 2D Reader Printer Terminal PDA Mobile Device GPRS GSM Wifi
Bar Code Scanner 1D 2D Reader Printer Terminal PDA Mobile Device GPRS GSM Wifi
Specifications
Brand Name :
SPEEDATA
Model Number :
KT45
Certification :
ISO9001,CCC,CQC,CE,IP65
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union, MoneyGram,paypal
Supply Ability :
1000sets per month
Packaging Details :
carton box 1unit packing with accessories : battery1pc/charger 1pc/data cable1pc/protection case 1pc
Product Name :
Printer Terminal PDA
Display :
4.5inch IPS 480*854
Camera :
8MP Camera
External Interface :
USB HOST/RS232(Customized)
Battery :
rechargeable Li-ion battery 4500mAh
Communication :
GPRS GPS GSM Wifi 3G
OEM/ODM :
Customization
Functions Optional :
Fingerprint, RFID Card,Printer
CPU :
Quad-core 1.3Ghz
OS :
Android4.4.2
Description

Bar Code Scanner 1D 2D Reader Printer Terminal PDA Mobile Device GPRS GSM Wifi

Bar Code Scanner 1D 2D Reader Printer Terminal PDA Mobile Device GPRS GSM Wifi

Specifications of KT45 Printer Terminal PDA

  • 4.5inch high-definition IPS LCD capacitive touch screen to meet your visual enjoyment
  • 800MP camera with high definition ,it's easy to collect all kinds of image information
  • Support 1D/2D barcode scanning,LF/HF/UHF RFID/fingerprint reading, terminal printer, MSR, PSAM function etc, card reader, printer, fingerprint, infrared reader, temperature, etc
  • Android 4.4.2 Operation System, More Stable and Reliable,provide complete SDK and technical support to make further app development easily
  • Special structure and external cushion protection design, solid and wearproof body shape
  • IP65 Industrial Class, 1.5M drop protection
Paramaters of KT45 Printer Terminal PDA
Development Environment
Operating System Android 4.4.2
SDK Software Development Kit
Language Java
Fundamental Characteristics
CPU ARM® Cortex-A7 MPCoreTM (LPDDR2 and LPDDR3) Quad-core 1.3Ghz
Memory 1GB DDR3 RAM + 8GB Frash ROM
Storage Micro SD/TF card max.32GB expansion
Display 4.5-inch IPS 480 * 854 Multi-point touch capacitive screen
Communications
WWLAN GSM band 850/900/1800/1900MHz,
Class 12 GPRS,
EDGE UMTS 850/900/1900/2100MHz HSPA
WiFi 2.4Ghz 802.11 b/g/n
Bluetooth V2.1+EDR / 3.0+HS / V4.0 Low Energy(LE)
GPS Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS
DGPS (please check options)
Physical Characteristics
Dimensions 175 * 76 * 28mm
Weight More 400g (includes main battery)
Expansion Slots 1*PSAM, 2*SIM
Battery rechargeable li-ion battery 4500mAh 3.7V
Or rechargeable li-ion battery 2250mAh 7.4V (if with printer)
500hours standby time, Up to 6hours calling time, 4hours charging time
Camera 8MP Camera
Video Support still image and video capture
Audio 3.5mm 4way plug
Keypad Front 17keys, Side 4keys
Interfaces 1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack
USB Host (Optional), RS-232 interface (Optional)
User Environment
Operating Temp. -10 to 50℃
Humidity 10%RH - 90%RH (Non-condensing)
Protection class IP65
Drop resistance level 1.5M

Multiple modulars of KT45 Printer Terminal PDA
Barcode scanners (optional )
1D scanner NewLand:EM1300 1D Infrared barcode scanner -- most Cost-effective module
HoneyWell:N4313 1D Laser barcode scanner
Symbol:SE955 1D Laser barcode scanner
1D/2D scanner NewLand:EM3095 2D Scanner
Symbol:SE4500SR 2D Scanner
RFID readers(optional)
LF RFID reader 134.2khz, ISO 11784/11785, FDX-B/HDX (Optional 1)
125khz (Optional 2)
HF RFID reader 13.56MHz, ISO 14443A/B, ISO 15693
NFC reader Include 13.56MHz, ISO 1443A/B
UHF RFID reader 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset
860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with R2000 shipset, Long distance reader
Biometric fingerprint (optional )
Fingerprint UPEK TCSI (meet the FBI’s FIPS-201) (Optional 1)
Fingerprint UPEK TCS2SS (Optional 2)

Other Modules (optional )
DGPS Ublox LEA-6T (with RTK)
PSAM ISO7816 (SIM)
MSR Compatible with one, two, three track(without PCI, EMV security certification)
IC card reader ISO7816 ID-1
Printer Integrete 2inch Direct thermal line printing
Far Infrared Meter Reading IEC62056-21 (IEC1107) communication protocol
433Mhz Require customers to provide 433Mhz wireless modules or specifications
Zigbee Require customers to provide 433Mhz wireless modules or specifications

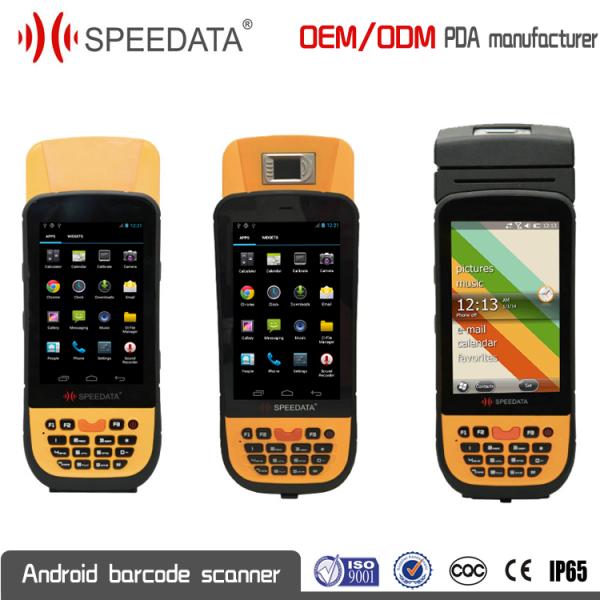

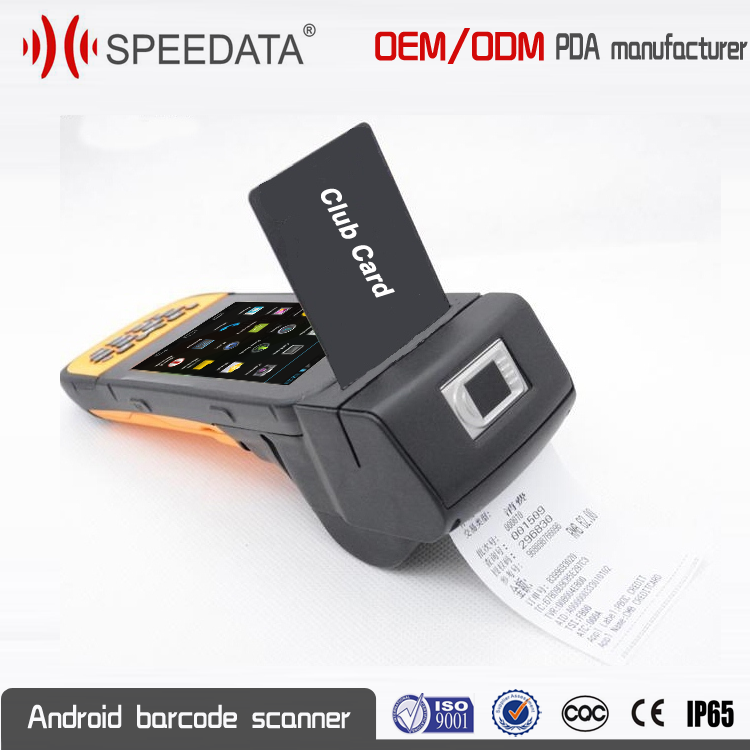

Detailed Pictures of KT45 Printer Terminal PDA

Bar Code Scanner 1D 2D Reader Printer Terminal PDA Mobile Device GPRS GSM Wifi

Bar Code Scanner 1D 2D Reader Printer Terminal PDA Mobile Device GPRS GSM Wifi

Bar Code Scanner 1D 2D Reader Printer Terminal PDA Mobile Device GPRS GSM Wifi

Bar Code Scanner 1D 2D Reader Printer Terminal PDA Mobile Device GPRS GSM Wifi

Bar Code Scanner 1D 2D Reader Printer Terminal PDA Mobile Device GPRS GSM Wifi

Best Industrial Android Bar Code Scanner 1D 2D Reader Printer Terminal PDA with GPRS GSM Wifi

Bet Industrial Android Bar Code Scanner 1D 2D Reader Printer Terminal PDA with GPRS GSM Wifi
