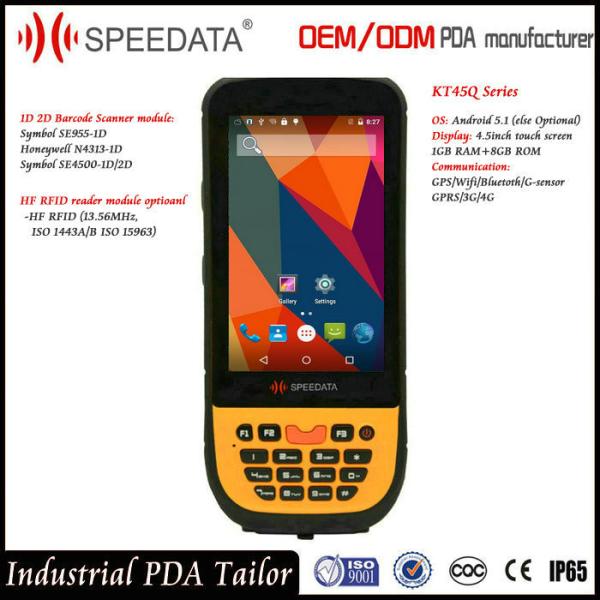

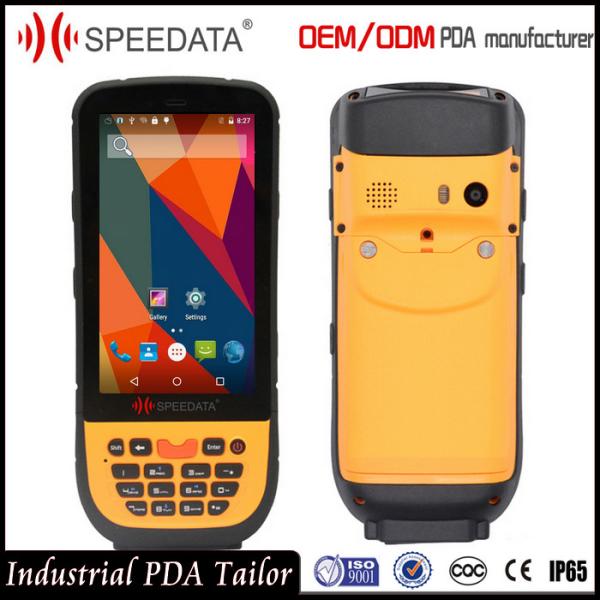

USB RS232 HF Rfid Handheld Scanner , Industrial RFID Reader 13.56Mhz
USB RS232 HF Rfid Handheld Scanner , Industrial RFID Reader 13.56Mhz
USB RS232 HF Rfid Handheld Scanner , Industrial RFID Reader 13.56Mhz
USB RS232 HF Rfid Handheld Scanner , Industrial RFID Reader 13.56Mhz
USB RS232 HF Rfid Handheld Scanner , Industrial RFID Reader 13.56Mhz
USB RS232 HF Rfid Handheld Scanner , Industrial RFID Reader 13.56Mhz
USB RS232 HF Rfid Handheld Scanner , Industrial RFID Reader 13.56Mhz
USB RS232 HF Rfid Handheld Scanner , Industrial RFID Reader 13.56Mhz
Specifications
Brand Name :
Speedata
Model Number :
KT45Q
Certification :
ISO9001/CE/CCC/CQC/IP65
Place of Origin :
Beijing,China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000pcs per month
Delivery Time :
3-7 working days
Packaging Details :
Independent packing with standard carton box, accessories(battery/charger/USB data cable/protection cover/hand strap)
Item Name :
HF RFID Card Reader 13.56Mhz
Camera :
8MP
Display :
4.5inch Touch Screen
Wireless :
3G /4G/ Wifi /Bluetooth
Memory :
1GB RAM+8GB ROM
Battery :
4500mAh 8hours calling time
Option 1 :
HF RFID Card Reader Writer
Option 2 :
Built-in Printer
Option 3 :
Fingerprint Scanner
Description

USB RS232 HF Rfid Handheld Scanner , Industrial RFID Reader 13.56Mhz

USB RS232 HF Rfid Handheld Scanner , Industrial RFID Reader 13.56Mhz

RFID Reader

 option 1 LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX)
option 2 LF RFID(125KHz)
option 3 HF RFID(13.56MHz ISO 1443A/B ISO 15693)
option 4 NFC(include 13.56MHz ISO 1443A/B )
option 5

UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) /

ISO18000-6A,B compatibility in direct mode

--with AS3992 shipset
option 6

UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) /

ISO18000-6A,B compatibility in direct mode--with R2000 shipset, Long distance reader.
option 7

UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2)

-with PR92000 shipset
barcode scanner option 1 NEWLAND:EM1300(1D barcode reader)
option 2 NEWLAND:EM3000(1D/2D barcode reader)
option 3 Symbol:SE955(1D laser barcode reader)
option 4 HoneyWell:N4313 (1D laser barcode reader)
option 5 Symbol: SE4500(1D&2D barcode reader)
UHF RFID antanna1 Circularly polarized Dielectric Ceramics
Antenna model: 40*40*5mm
Frequency Range: 922.5MHz±8MHz
Gain(Typical): 2dBi Based on65×65mm ground plane
Impendence: 50 ohm
UHF RFID antanna2 Circularly polarized Dielectric Ceramics
Antenna model: 40*40*5mm
Frequency Range: 865MHz-868MHz
Gain(Typical): 2dBi Based on65×65mm ground plane
Impendence: 50 ohm
UHF RFID antanna3 Circularly polarized Dielectric Ceramics
Antenna model: 35*35*5mm
Frequency Range: 922.5MHz±8MHz
Gain(Typical): 2dBi Based on35×35mm ground plane
Impendence: 50 ohm

Packaging of KT45Q HF RFID Card Reader 13.56Mhz :

  • Speedata Conventional Packing-1pcs
  • Handheld PDA-1pcs
  • USB Data Cable-1pcs
  • Charger-1pcs
  • Protection Cover-1pcs
  • Hand Strap-1pcs

Fundamental Paraments of KT45Q HF RFID Card Reader 13.56Mhz :

OS Android 5.1 4G Wireless FDD B1B3B7
TDD B38B39B40
WCDMA B1B2B5B8
EVDO BC0
GSM B2B3B5B8
CPU

ARM@Cortex-A53

1.3GHz Quad-core

 WWLAN

GSM/GPRS/EDGE:850/900/1800/

1900mMhz
UMTS/HSPA:850/900/1900/2100MHz
Memory 8GB ROM+1GB RAM Interface

1*MicroSD/TF, 1*Audio Jack,

1*Micro USB, 1*Power Jack
USB Host/RS-232 interface (Customized)
Display

4.5’’ IPS 480 * 854 LCD

Multi-point touch screen

 Camera

Support still image and video capture AF

8MP
Positioning module GPS/AGPS/Ublox8030 Battery 4500mAh/3.7V or 2250mAh/7.4V
Storage Micro SD/TF card max.32GB expansion Quality 3C /FCC /ROHS /IP65 /1.5M drop
Slot 1*PSAM, 2*SIM Function Options 1.Barcode scanner:1D/2D
2.RFID reader:LF/HF/UHF/NFC
4.DGPS/PSAM/433M/Printer
5.IC Card reader/MSR/IR Meter reading
