Touch Screen Wireless Handheld Smart Card Reader for ID Card
Touch Screen Wireless Handheld Smart Card Reader for ID Card
Touch Screen Wireless Handheld Smart Card Reader for ID Card
Touch Screen Wireless Handheld Smart Card Reader for ID Card
Touch Screen Wireless Handheld Smart Card Reader for ID Card
Touch Screen Wireless Handheld Smart Card Reader for ID Card
Touch Screen Wireless Handheld Smart Card Reader for ID Card
Touch Screen Wireless Handheld Smart Card Reader for ID Card
Specifications
Brand Name :
Speedata
Model Number :
KT45Q
Certification :
ISO9001/CE/CCC/CQC/IP65
Place of Origin :
Beijing,China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000pcs per month
Delivery Time :
3-7 working days
Packaging Details :
Independent packing with standard carton box, accessories(battery/charger/USB data cable/protection cover/hand strap)
Item Name :
ID Card Reader & Writer
Camera :
8MP
Display :
4.5inch Touch Screen
Wireless :
3G /4G/ Wifi /Bluetooth
Memory :
1GB RAM+8GB ROM
Battery :
4500mAh 8hours calling time
Option 1 :
IC Card Reader Writer
Option 2 :
Built-in Printer
Option 3 :
Crossmatch Fingerprint Scanner
Description

Touch Screen Wireless Handheld Smart Card Reader for ID Card

Touch Screen Wireless Handheld Smart Card Reader for ID Card

Fundamental Paraments of KT45Q Android ID Card Reader Writer :

Development Environment
Operating System Android 5.1
SDK Software Development Kit
Language Java

Fundamental Characteristics
CPU Quad-core 1.3Ghz ARM® Cortex-A53 (LPDDR2 and LPDDR3)
Memory 1GB DDR3 RAM + 8GB Frash ROM
Storage Micro SD/TF card max.32GB expansion
Display 4.5-inch IPS 480 * 854 Multi-point touch capacitive screen

Communications
4G WWLAN FDD B1B3B7
TDD B38B39B40
WCDMA B1B2B5B8
EVDO BC0
GSM B2B3B5B8
WiFi 2.4Ghz 802.11 b/g/n
G-Sensor Yes
Bluetooth V2.1+EDR / 3.0+HS / V4.0 Low Energy(LE)
GPS Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS
DGPS (please check options)

Physical Characteristics
Dimensions 175 * 76 * 28mm
Weight More 400g (includes main battery)
Expansion Slots 1*PSAM, 2*SIM
Battery rechargeable li-ion battery 4500mAh 3.7V
Or rechargeable li-ion battery 2250mAh 7.4V (if with printer)
500hours standby time, Up to 6hours calling time, 4hours charging time
Camera 8MP Camera
Video Support still image and video capture
Audio 3.5mm 4way plug
Keypad Front 17keys, Side 4keys
Interfaces 1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack
USB Host (Optional), RS-232 interface (Optional)

User Environment
Operating Temp. -10 to 50℃
Humidity 10%RH - 90%RH (Non-condensing)
Protection class IP65
Drop resistance level 1.5M

Multi-Functions of KT45Q Android ID Card Reader Writer :

Data Modules

Barcode scanners (optional )
1D Linear Scanner (Optional)
1D scanner Symbol SE955 (Optional 1)
Newland EM1300 (Optional 2)
Honeywell N4313 (Optional 3)
2D Imager Scanner (Optional)
1D/2D scanner Symbol SE4500 (Optional 1)
Newland EM3000 (Optional 2)

RFID readers
HF RFID reader 13.56MHz, ISO 14443A/B, ISO 15693
NFC reader Include 13.56MHz, ISO 1443A/B

Biometric fingerprint (optional )
Fingerprint Crossmatch TCSIG (meet FBI FIPS201 ) (Optional 1)
Fingerprint Crossmatch TCS1B (meet STQC ) (Optional 2)

Other Modules (optional )
DGPS Ublox LEA-6T (with RTK)
PSAM ISO7816 (SIM)
MSR Compatible with one, two, three track(without PCI, EMV security certification)
IC card reader ISO7816 ID-1
Printer Integrete 2inch Direct thermal line printing

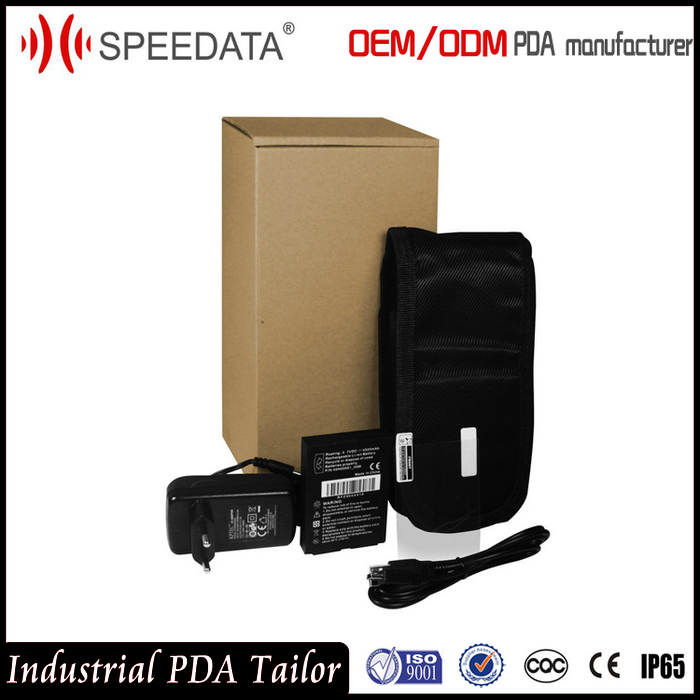

Packaging of KT45Q Android ID Card Reader Writer :

  • Speedata Conventional Packing-1pcs
  • Handheld PDA-1pcs
  • USB Data Cable-1pcs
  • Charger-1pcs
  • Protection Cover-1pcs
  • Hand Strap-1pcs

Touch Screen Wireless Handheld Smart Card Reader for ID Card

Touch Screen Wireless Handheld Smart Card Reader for ID Card

Touch Screen Wireless Handheld Smart Card Reader for ID Card

4.5inch Touch Screen Android Smart Card Reader Wireless Smart ID Card Reader & Writer

4.5inch Touch Screen Android Smart Card Reader Wireless Smart ID Card Reader & Writer
