Specifications
Brand Name :
Speedata
Model Number :
TT45-C5M-M6-IPOR
Certification :
ISO9001/CE/CCC/CQC/IP65
Place of Origin :
Beijing,China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000pcs per month
Delivery Time :
3-7 working days
Packaging Details :
Independent packing with standard carton box, accessories(battery/charger/USB data cable/protection cover/hand strap)
OS :
Windows mobile 6.1/6.5
CPU :
TI3715 A8 1Ghz
Bluetooth :
JORJIN WG7310 Bluetooth
WiFi :
JORJIN WG7310 WiFi (802.11 b/g/n)
GPS :
UBLOX 6010
Battery :
rechargeable Li-ion battery 4500mAh
Description

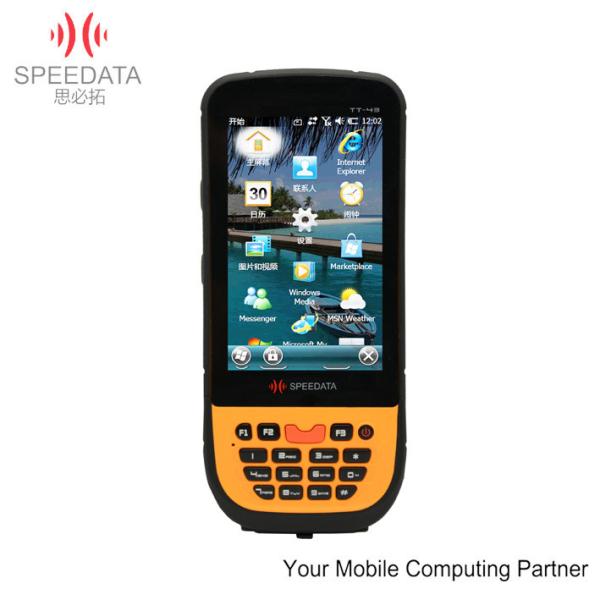

All in One Portable Data Collection Terminal Far Infrared Meter Reading with WIFI GPS

All in One Portable Data Collection Terminal Far Infrared Meter Reading with WIFI GPS

Description:

1, Special structure and external cushion protection design, solid and waterproof body shape

2, Three optional OS to meet your different needs.

3, IP65 Industrial Class, 1.5M drop protection

4, Multiple Functions optional: card reader, printer, fingerprint, infrared reader, temperature, etc

5, Free SDK and technical support for you.

6, Long warranty time and 12 hours service for you.

7, Short time of delivery time.

Specifications:

OS option
OS option 1 Windows mobile 6.1/6.5
option 2 WM CE 6
option 3 Android 4.0
Hardware
Core board
CPU TI3715 A8 1Ghz
WWLAN option 1 without modem
option 2 Huawei MU609 Module: GSM band 850/900/1800/1900MHz, GPRS, EDGE UMTS 850/900/1900/ 2100MHz HSPA )
Phone call &SMS function NA. (Only supports Internet access.)
Memory Flash ROM 512MB
RAM 512MB DDR
Extend Slot Micro SD 32G (SDHC)
EMMC ROM OPTION 4GB ROM
Motherboard
Display 4.5inch IPS 854*480 (Without Transflective screen)
touch screen 4-wire resistive
Form Factor Bar type classical PDA,Industrial appearance
GPS UBLOX 6010
Bluetooth JORJIN WG7310 Bluetooth
WiFi JORJIN WG7310 WiFi (802.11 b/g/n)
External Interface USB HOST/RS232(Customized)
Protection class IP65
Drop resistance level 1.5m
Camera Function Camera 5MP Camera
Video Support still image and video capture
Keypad Front 17
Side 4
Interface Mini-USB connector USB2.0 connection
SIM card slot Yes
TF card slot Yes
power jack Yes
Audio Jack Yes
Battery Type rechargeable Li-ion battery 4500mAh
Standby Time 500hours
Calls Time Up to 6hours
Charging Time 4 hours
Physical Characteristics Dimension 175*76*27mm
Weight >400g with battery (according config)
Extensions
PSAM(Optional) ISO7816 (SIM card interfance)
MSR(Optional) Compatible with one, two, three track. (without PCI, EMV security certification.)
IC card reder(Optional) ISO7816 ID-1
Fingerprint reader option 1 UPEK TCS1 (meet the FBI’s FIPS-201)
option 2 UPEK TCS2SS
Printer(Optional) 2 inch Direct thermal line printing
Far Infrared Meter Reading (Optional) IEC62056-21(IEC1107) communication protocol
zigbee(Optional) 2.4Ghz
Printer Module Specifications
Printing method Direct thermal line printing
Paper width 57mm
Print width 48mm
Resolution Ration 8 dots/mm (384 dots/line )
Life of printing head 5,000,000 -15,000,000 character lines
Printing speed 40-60mm/sec
Character size 8*16dots , 12*24dots
Paper supplied 57mm wide , 22mmø
Interface Serial RS232C/TTL
Operating temperature 0℃--50℃
Storage temperature -20℃ -- 60℃
Operating humidty 10%--80%
Storage humidty 10%--90%

Applications:

We have a strong R&D team for not only hardware but also software, have developed the following solutions for our customers:

  • Cold-chain logistics and transportation tracking
  • Meat product tracking
  • Mobile police service
  • Fixed-Assets management
  • Tickets checking
  • Shop and supermaket payment receipt
  • Member information printing
  • Infrared long meter detection

Values for Clients:

1. Satisfied Service

Before-Sale Service: quick response within ONE working day; patient communication

On-Sale Service: delivery on time,quality and quantity assured

After-Sale Service: 13 months warranty period;

Besides, support complete SDK info and technology service during your project.

2. Real Time Support

Speedata Support Team is at your fingertips and will help you troubleshoot any issues with hardware or software, while answering all your questions or concerns. Our own personal service technician is assigned and readily available, so there is ZERO waiting time for your absolute convenience.

3. R & D technology support

Our R & D team and leaders have extensive experience in OEM ODM.
