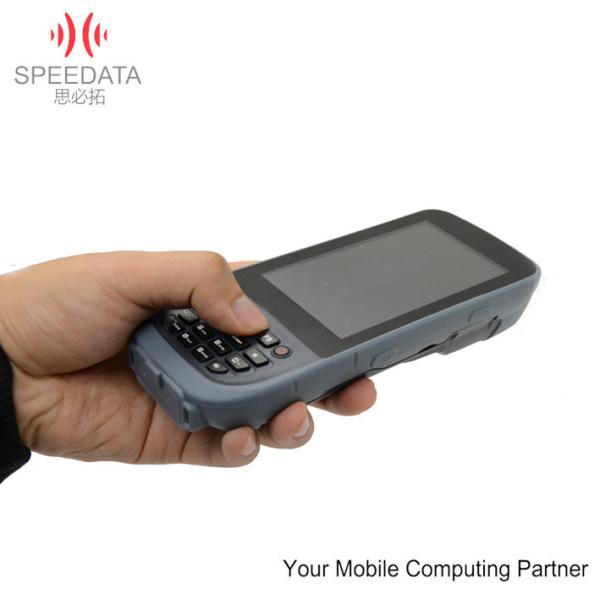

Symbol Laser Barcode Scanner Handheld PDA Devices with Touch Screen 1GB CPU
Symbol Laser Barcode Scanner Handheld PDA Devices with Touch Screen 1GB CPU
Symbol Laser Barcode Scanner Handheld PDA Devices with Touch Screen 1GB CPU
Symbol Laser Barcode Scanner Handheld PDA Devices with Touch Screen 1GB CPU
Symbol Laser Barcode Scanner Handheld PDA Devices with Touch Screen 1GB CPU
Symbol Laser Barcode Scanner Handheld PDA Devices with Touch Screen 1GB CPU
Symbol Laser Barcode Scanner Handheld PDA Devices with Touch Screen 1GB CPU
Symbol Laser Barcode Scanner Handheld PDA Devices with Touch Screen 1GB CPU
Specifications
Brand Name :
Speedata
Model Number :
TT45-C5M-M6-SY
Certification :
ISO9001/CE/CQC/CCC
Place of Origin :
Beijing,China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000pcs per month
Delivery Time :
3-7 working days
Packaging Details :
Independent packing with standard carton box, accessories(battery/charger/USB data cable/protection cover/hand strap)
OS :
Windows mobile 6.1/6.5 Windows CE 6.0
CPU :
TI3715 A8 1Ghz
WWLAN :
Huawei MU609 Module: GSM band 850/900/1800/1900MHz, GPRS, EDGE UMTS 850/900/1900/ 2100MHz HSPA ）
GPS :
UBLOX 6010
Color :
Grey, yellow
Camera :
5MP
Description

Symbol Laser Barcode Scanner Handheld PDA Devices with Touch Screen 1GB CPU

Symbol Laser Barcode Scanner Handheld PDA Devices with Touch Screen 1GB CPU

Quick Details of barcode scanner:

1, Special structure and external cushion protection design, solid and waterproof body shape

2, IP65 Industrial Class, 1.5M drop protection

3, Multiple Functions optional: card reader, printer, fingerprint, infrared reader, temperature, etc

4, An open platform and flexible function configuration.

5, High quality hardware material and experienced software engineers.

Specifications of barcode scanner:

OS option
OS option 1 Windows mobile 6.1/6.5
option 2 WM CE 6
option 3 Android 4.0
Hardware
Core board
CPU TI3715 A8 1Ghz
WWLAN option 1 without modem
option 2 Huawei MU609 Module: GSM band 850/900/1800/1900MHz, GPRS, EDGE UMTS 850/900/1900/ 2100MHz HSPA )
Phone call &SMS function NA. (Only supports Internet access.)
Memory Flash ROM 512MB
RAM 512MB DDR
Extend Slot Micro SD 32G (SDHC)
EMMC ROM OPTION 4GB ROM
Motherboard
Display 4.5inch IPS 854*480 (Without Transflective screen)
touch screen 4-wire resistive
Form Factor Bar type classical PDA,Industrial appearance
GPS UBLOX 6010
Bluetooth JORJIN WG7310 Bluetooth
WiFi JORJIN WG7310 WiFi (802.11 b/g/n)
External Interface USB HOST/RS232(Customized)
Protection class IP65
Drop resistance level 1.5m
Camera Function Camera 5MP Camera
Video Support still image and video capture
Keypad Front 17
Side 4
Interface Mini-USB connector USB2.0 connection
SIM card slot Yes
TF card slot Yes
power jack Yes
Audio Jack Yes
Battery Type rechargeable Li-ion battery 4500mAh
Standby Time 500hours
Calls Time Up to 6hours
Charging Time 4 hours
Physical Characteristics Dimension 175*76*27mm
Weight >400g with battery (according config)
Extensions
PSAM(Optional) ISO7816 (SIM card interfance)
MSR(Optional) Compatible with one, two, three track. (without PCI, EMV security certification.)
IC card reder(Optional) ISO7816 ID-1
Fingerprint reader option 1 UPEK TCS1 (meet the FBI’s FIPS-201)
option 2 UPEK TCS2SS
Printer(Optional) 2 inch Direct thermal line printing
Far Infrared Meter Reading (Optional) IEC62056-21(IEC1107) communication protocol
zigbee(Optional) 2.4Ghz
RFID option 1 LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX)
option 2 LF RFID(125KHz)
option 3 HF RFID(13.56MHz ISO 1443A/B ISO 15693)
option 4 NFC(include 13.56MHz ISO 1443A/B )
option 5 UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset
option 6 UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) with R2000 shipset
barcode scanner option 1 NEWLAND:EM1300(1D barcode reader)
option 2 NEWLAND:EM3000(1D/2D barcode reader)
option 3 Symbol:SE955(1D laser barcode reader)
option 4 HoneyWell:N4313 (1D laser barcode reader)
option 5 Symbol: SE4500(1D&2D barcode reader)

Product Use of barcode scanner:

1. R & D technology support

2. Strong customized capabilities

Speedata serves wide industries and fields,

we pay more attention to design personalized software and hardware products

we supply core board customization, sensors and module development to combine with platform

Advantages of barcode scanner:

As for software integration , We not only support 18 kinds of multiple modules but also supply 3 compatible operating systems. Those Including

1. 1D/2D barcode scanner

2. Thermal Printer

3. 433M

4. Bluetooth /WiFi/GPS

5. Fingerprint Scanner

6. IC card reader

7. ZigBee

8. GPRS/WWLAN

9. LF/HF/NFC/UHF RFID reader

10. PSAM

11. IR Meter reading

12. MSR reader

13. Temperature Reader

14. Camera/Video

Symbol Laser Barcode Scanner Handheld PDA Devices with Touch Screen 1GB CPU

Symbol Laser Barcode Scanner Handheld PDA Devices with Touch Screen 1GB CPU

Windows CE Mobile Symbol Laser Barcode Scanner PDA with Touch Screen 1GB CPU

Windows CE Mobile Symbol Laser Barcode Scanner PDA with Touch Screen 1GB CPU
