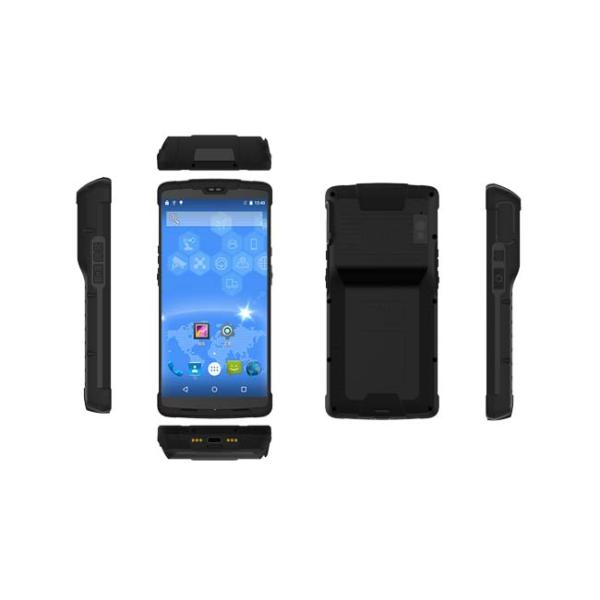

GPS/GPRS/USB 4G LTE Wireless Android UHF RFID Handheld Reader 2D Barcode Scanner
GPS/GPRS/USB 4G LTE Wireless Android UHF RFID Handheld Reader 2D Barcode Scanner
GPS/GPRS/USB 4G LTE Wireless Android UHF RFID Handheld Reader 2D Barcode Scanner
GPS/GPRS/USB 4G LTE Wireless Android UHF RFID Handheld Reader 2D Barcode Scanner
GPS/GPRS/USB 4G LTE Wireless Android UHF RFID Handheld Reader 2D Barcode Scanner
GPS/GPRS/USB 4G LTE Wireless Android UHF RFID Handheld Reader 2D Barcode Scanner
GPS/GPRS/USB 4G LTE Wireless Android UHF RFID Handheld Reader 2D Barcode Scanner
GPS/GPRS/USB 4G LTE Wireless Android UHF RFID Handheld Reader 2D Barcode Scanner
Specifications
Brand Name :
Speedata
Model Number :
SD55UHF
Certification :
CCC、CE、ROHS、FCC、BIS
Place of Origin :
Beijing, China
MOQ :
1pc
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs/Mouth
Delivery Time :
5-8 working days
Packaging Details :
Standard
Name :
UHF reader with barcode scanning
OS :
Android 8.1
Screen Size :
5.5 inches, IPS high light screen
Processor :
Octa-core 2.0GHz
Weight (with battery) :
290g
ROM :
16GB
RAM :
2GB
Bluetooth :
BT4.1 BLE
Prtective Class :
IP65
Touch screen :
5-point capacity touch screen
Description

GPS/ GPRS/ USB 4G LTE Wireless Android Handheld UHF 2D Barcode Scanner with Lower Price from Factory

  • 5.5 inches, 18:9 full screen, large visual area
  • 2GB+16GB, easy to deal with batch data
  • Android 8.1 and Octa-core 2.0GHz processor
  • Excellent protection performance , six side drop test certification from a weight of 1.5m
  • 5800mAh large capacity battery,supporting charging cradle, Type-C and fast charging.
  • Small size, full functions, support high frequency and ultra high frequency
  • NewLand CM60 barcode engine

SD55UHF parameters

OS Android 8.1
CPU Octa-core 2.0GHz
RAM 2GB
ROM 16GB
Camera Rear 13MP AF+High Brightness LED Flash+Front 5MP FF
Size 150*72.5*16.5mm
Display Size/Type 5.5 inches,IPS high light screen
Resolution 720*1440
Touch Screen 5-point capacity touch screen
Weight (with battery) 290g
Keypad 2 volume keys , 2 function keys(left one and right one), 1power key
Battery Capacity 5800mAh
Charging PE Fast charging ,fully charging time< 4 hours
Bluetooth BT4.1 LTE
Wifi IEEE 802.11a/b/g/n 2.4G 5G Dual Frequency
WWLAN FDD-LTE B1/B3/B5/B7/B8
TDD-LTE B38/B39/B40/B41
TDSCDMA B34/B39
WCDMA B1/B2/B5/B8
GSM B2/B3/B5/B8
CDMA1x/CDMA2000 BC0/BC1
GPS GPS+BD+GLONASS
Audio Front dual stereo speakers, Volume 90db±3db (test distance 10cm)
Sensor Geomagnetism, acceleration, optical distance
Interface 2Nano SIM cards
1micro SD card slot up to 128GB
USB-Type C, support fast charging
OTG,Support fast charging5V/9A 1.67,
charging and bottom USB connector
Notification Sound, Vbration,LED prompt
Operating Temperature -20℃ ~ +55℃
Storage Temperature -30℃ ~ +70℃
Working Humidity 5% to 95%
IP Class IP65
Drop Test 6 sides can withstand the impact of a 1.5-meter drop to the concrete floor
ESD ±15kV Air Discharge,±8kV Contact Discharge
Certification CCC,CE,ROHS,FCC,BIS
NFC Support agreement:ISO14443A/B, ISO15693
reading distance: 0~5cm
RFID(ultra high frequency) Protocol standard:ISO18000-6C
Work frequency : China(920-925MHz),
North America (902-928MHz),European
frequency(865-867MHz),Antenna
parameters:ceramic antenna(1.5dBi) ,
Power:working voltage3.6V-5V,
Radio frequency input:5dBM to 30dBM(1W),
1dBM adjustable standby power
consumption about 0.25W, the larger is
4W (typical 3.5W),Scope of
identification:indoors 3 meters or more,
outdoors 1.5 meters or more,
Label speed >30/sec
Code Scanning
Support Code System		 CM60, Support code system:EAN13
EAN8, UPCA, UPCE, Code 128, Code 39
Codabar, UCC/EAN128, RSS,ITF, ITF14
ITF6, ISSN, ISBN, Standard 25, Matrix 25
Industrial 25,Plessey, MSI Plessey, Code 11
Code 93, PDF417, QR Code, DataMatrix
AZTEC, Hanxin Code, Maxicode, Micro QR
Micro PDF417, Composite
Explosion-proof
(optional)		 Sign of explosion-proof:Ex ib IIC T4 GB
Certificate number:CCRI 19.2161
Optional Accessories
DC55 Single Charging base Charging input:5V/9V 1.67A

GPS/GPRS/USB 4G LTE Wireless Android UHF RFID Handheld Reader 2D Barcode Scanner

GPS/GPRS/USB 4G LTE Wireless Android UHF RFID Handheld Reader 2D Barcode Scanner

Application Industry

Logistics & Express Animal tracking & research Electric meter readings
Storage & Distribution Petrochemical inspection Geomatics & Surveying
.Health & pharmaceutical industry Mobile police service Tobacco Logistics
Surveying and mapping Agriculture .Water conservation
Network community management Product tracking Fixed-assets management

why choose us

1. Experienced

More than 9 years experience in Hardware IOT Platform !

R&D and oversea sales, we know how to be your good manufacturer and business partner!!!

2. High Quality Products

CE covers all SPEEDATA product !

Strictly QC Before Delivery !

3. Satisfied Service

Before-Sale Service: quick response within ONE working day; patient communication

On-Sale Service: delivery on time; quality and quantity assured

After-Sale Service: One year warranty period; technology support during your project.

Free SDK fro secondary development

CERTIFICATE INSURRANCE QUANLITY

GPS/GPRS/USB 4G LTE Wireless Android UHF RFID Handheld Reader 2D Barcode Scanner
