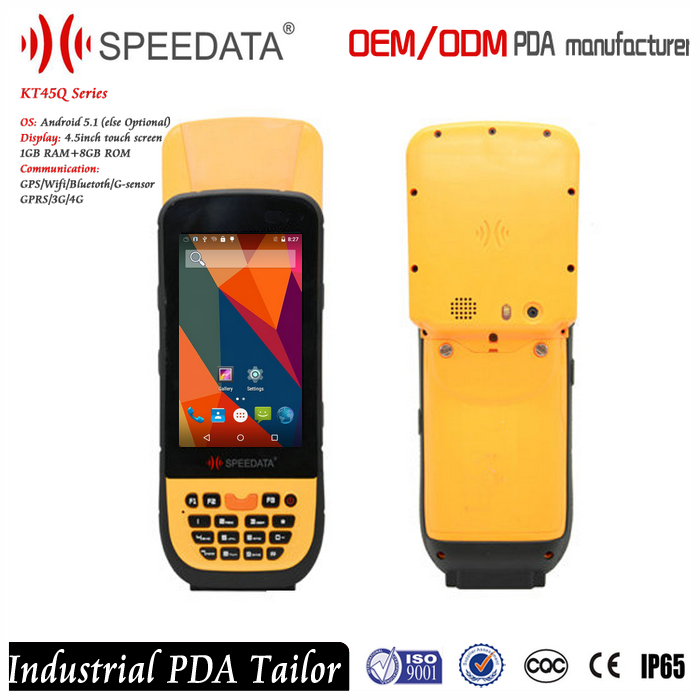

Handheld Industrial Grade Ultra High Frequency Smartphone RFID Reader For Android
Handheld Industrial Grade Ultra High Frequency Smartphone RFID Reader For Android
Handheld Industrial Grade Ultra High Frequency Smartphone RFID Reader For Android
Handheld Industrial Grade Ultra High Frequency Smartphone RFID Reader For Android
Handheld Industrial Grade Ultra High Frequency Smartphone RFID Reader For Android
Handheld Industrial Grade Ultra High Frequency Smartphone RFID Reader For Android
Specifications
Brand Name :
Speedata
Model Number :
KT45Q
Certification :
CE, CCC, FCC, IP65, ISO9001
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T
Supply Ability :
10000 Unit per Month
Delivery Time :
about 5 working days
Packaging Details :
Standard Carton Box
Processor :
Quad-Core 1.3Ghz
Memory :
8GB ROM + 1GB RAM
WWLAN :
4G/3G/2G
Display :
4.5 inch IPS
Camera :
8MP(optional function)
Bluetooth :
v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE)
Wifi :
Dual Band Wifi
RFID :
UHF-860mhz-960mhz
Description

Handheld Industrial Grade Ultra High Frequency Smartphone RFID Reader For Android

Specifications of KT45Q RFID Reader For Android:

  • 4.5inch high-definition 480*854 IPS LCD capacitive touch screen
  • 8MP camera with high definition ,it's easy to collect all kinds of image information
  • Multiple Functions: Support 1D/2D barcode scanning,LF/HF/UHF RFID Reader /fingerprint reader, terminal printer, MSR, PSAM etc
  • Android 5.1 Operation System, More Stable and Reliable,provide complete SDK and technical support to make further app development easily
  • Special structure and external cushion protection design, solid and wearproof body shape
  • Matched with the machine seat charger, to ensure the charging interface durable,it's more quicker and easier
  • IP65 Industrial Class, 1.5M drop protection, ISO9001 Manufacturer.
  • Support OEM/ODM Service with Free SDK and Technical support.

RFID Reader of RFID Reader For Android:

RFID Reader option 1 LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX)
option 2 LF RFID(125KHz)
option 3 HF RFID(13.56MHz ISO 14443A/B ISO 15693)
option 4 NFC(include 13.56MHz ISO 14443A/B )
option 5 UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset
option 6 UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with R2000 shipset, Long distance reader.
option 7 UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) -with PR92000 shipset

Paraments of RFID Reader For Android:

OS Android 5.1
Hardware
Core board CPU Quad-core 1.3GHz
ARM® Cortex-A53 (LPDDR2 and LPDDR3)
WWLAN FDD B1B3B7
TDD B38B39B40
WCDMA B1B2B5B8
EVDO BC0
GSM B2B3B5B8
Flash ROM 8GB
RAM 1GB DDR3

General Configuration of RFID Reader For Android:

Motherboard
Display @ 4.5inch IPS 480*854
touch screen Multi-point touch capacitive screen
Form Factor Bar type classical PDA,Industrial appearance
GPS Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS
DGPS (please check options)
Bluetooth v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE)
WiFi 2.4Ghz 802.11 a/b/g/n
External Interface USB HOST/RS232(Customized)
Protection class IP65
Drop resistance level 1.5m
Camera (optional) Camera 8MP Camera
Video Support still image and video capture
Sensor G-sensor YES

Keypad of RFID Reader For Android:

Keypad Front 17
Side 4

Interface of RFID Reader For Android:

Interface Mini-USB connector USB2.0 connection
SIM card slot *2
TF card slot Yes
power jack Yes
Audio Jack Yes

Battery of RFID Reader For Android:

Battery Type rechargeable Li-ion battery 5200mAh/2600mAh
Standby Time 500hours
Calls Time Up to 6hours
Charging Time 4 hours

Physical Characteristics of RFID Reader For Android:

Physical Characteristics Dimension 175*76*27mm
Weight >400g with battery (according config)

Handheld Industrial Grade Ultra High Frequency Smartphone RFID Reader For Android

Speedata Exhibition

SPEEDATA has successfully taken part in CARTES SECURE CONNEXIONS in France, CeBIT in Germany and ISC West Exhibition in Los Angeles. It went very well and we visited our all European clients around at the same time.Welcome to Visit us! If you want to know more details, contact us!
