Specifications
Brand Name :
Speedata
Model Number :
SD50(F)
Certification :
CE, CCC, FCC, ROHS
Place of Origin :
Beijing, China
MOQ :
1pc
Payment Terms :
T/T, L/C
Supply Ability :
10000 Units per Month
Delivery Time :
5-8 working days
Packaging Details :
Standard
Processor :
Octa-core 2.0GHz
Memory :
16/64GB ROM + 2/4GB RAM
WWLAN :
4G/3G/2G
Display :
5 inch IPS high light screen
Battery :
Master:7000mAh Handle:4000mAh
Camera :
Rear Camera 13MP AF, High Brightness LED Flash ,Front Camera 5MP FF
Bluetooth :
YES
Fingerprint :
Crossmatch FBI Fingerprint Scanner
Description

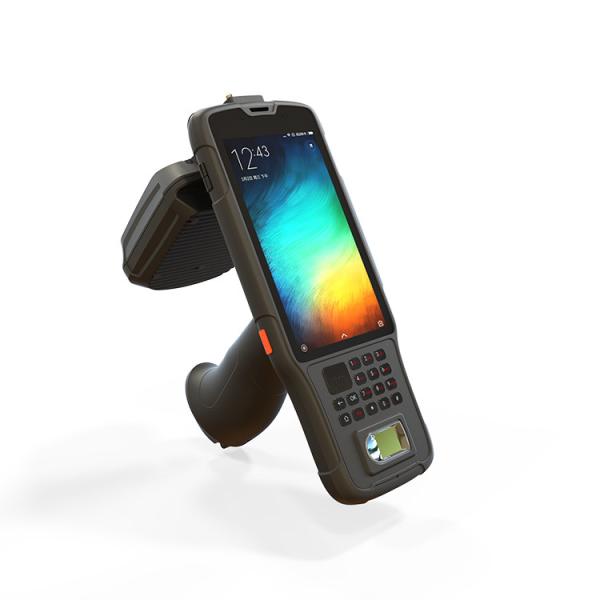

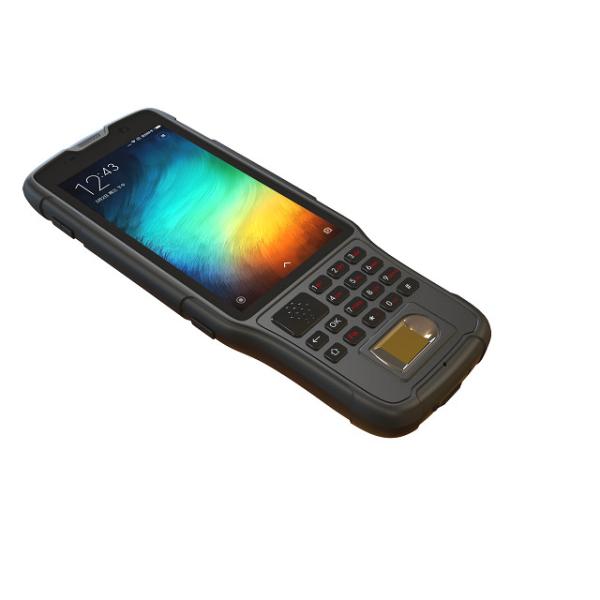

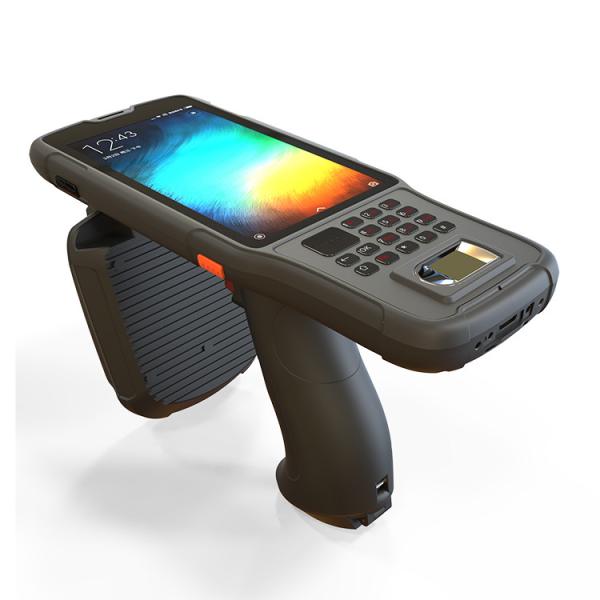

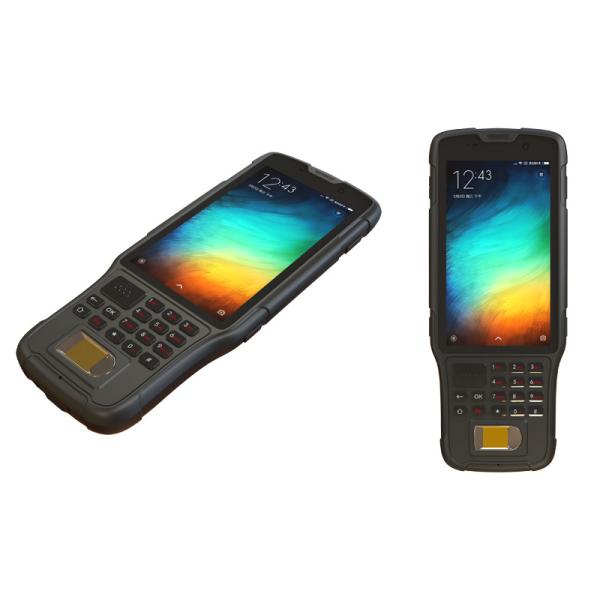

5.0 Inch Screen 13MP Camera Industrial Mobile Portable Biometrics Fingerprint Scanner

Specifications of SD50(F) Industrial Mobile Portable Fingerprint Scanner:

  • 5.0 inch high-definition 720*1280 IPS LCD capacitive touch screen
  • Front 5MP+rear 13MP camera with high definition ,it's easy to collect all kinds of image information
  • Multiple Functions: Support 1D/2D barcode scanning, /HF/UHF RFID Reader /fingerprint reader, PSAM, etc.
  • Android 8.1 Operation System, More Stable and Reliable,provide complete SDK and technical support to make further app development easily
  • Solid and wearproof body shape
  • IP65 Industrial Class, 1.2M drop protection
  • Support OEM/ODM Service with Free SDK and Technical support.
  • With high-performance uhf rfid reader
SD50(F) Basic Parameters
OS Android 8.1
CPU Octa-Core 2.0GHz
RAM 2/4GB
ROM 16/64GB
Expansion Micro SD (TF) card slot up to 128GB
Keypad 35 buttons
Notification Sound/vibration/LED prompt
Audio

Front dual stereo speakers

Volume 90db±3db (test distance 10cm)

Dimentions 207*84*20mm
Weight( with battery) 716g
Camera
Camera Rear 13MP autofocus and flash light,Front Camera 5MP
Focus mode Autofocus ; Fixed focus
Flash Support High Light LED Flash
Display
Display 5.0 Inch IPS
Resolution 720*1280
Touch Panel 5-point capacitive touch screen
Power
Battery Master:7000mAh Handle:4000mAh
Charging PE fast charging, ful charging time<4 hours
Interface 2micro SIM cards,1micro SD card slot up to 128GB,USB-Type C, support fast charging, OTG,Support fast charging5V/9A 1.67,charging and bottom USB connector
Communication
Bluetooth BT4.1 BLE
Wi-fi IEEE 802.11 a/b/g/n 2.4G 5Gdual frequency
WWAN FDD-LTE B1/B3/B7
TDD-LTE B38/B39/B40/B41
TDSCDMA B34/B39
WCDMA B1/B2/B5/B8
GSM B2/B3/B5/B8
CDMA1x/CDMA2000 BC0/BC1
GPS Position Module GPS+BD+GLONASS
Performance
Operation Temperature -20℃ ~55℃
Storage Temperature -30℃ ~+70℃
Humidity 5%~95%(No condensation)
Sealing IP65
Drop Test In the operating range, 6 sides can withstand the impact of 1.2meters drop to the concrete floor
ESD ±15kV Air Discharge, ±8kV Contact Discharge
Certificate CCC,CE, ROHS, FCC
Extensibility
Fingerprint Crossmatch FBI Fingerprint Scanner
UHF RFID Reader Protocol standard:EPG G2/ISO 18000-6C,Work frequency : China(920-925MHz),North America (902-928MHz),European frequency(865-867MHz),Antenna parameters:4dBi four arm spiral,Power:working voltage3.6V-5V,Radio frequency input:5dBM to 33dBM(1W),1dBM adjustable standby power consumption about 0.25W, the larger is 7.5W (typical 7W),Card reading distance:indoors 22 meters or more, outdoors 8 meters or more. Label speed >200/sec
PSAM Support
Sensor Geomagnetism, acceleration, optical distance

13MP Camera Optional NFC HF UHF RFID Barcode 2d Industrial Mobile Portable Biometrics Fingerprint Scanner

13MP Camera Optional NFC HF UHF RFID Barcode 2d Industrial Mobile Portable Biometrics Fingerprint Scanner

13MP Camera Optional NFC HF UHF RFID Barcode 2d Industrial Mobile Portable Biometrics Fingerprint Scanner

Beijing Speedata Technology Co., Ltd (Stock Code:832442)

Speedatagroup is an OEM/ODM manufacturer of IoT (Internet of Things) Devices and a Provider of Handheld PDA terminal in hardware and software solution, focusing PDA on 1D/2D Barcode scanner, Fingerprint reader, Portable Printer, UHF RFID reader, 433M, MSR, ZigBee, PSAM, and IC card reader, MRZ, IRIS Scanner...

For the past years, Speedata has been rapidly growing as a high-tech enterprise of R&D, production and sales, and furthermore, having extensive application experiences in the IOT field. The head office is located in Beijing, with branch offices in Shanghai, Shenzhen and Dalian, as well as India.
we have a factory both in Beijing and Tianjing.
We have over 30 professional Senior engineers in R&D department.
We successfully cooperate with Foxconn in Shenzhen

Speedata Services

As a listed company from china manufacturer, we support you:
Completely Free SDK and technical support for you.
ODM/OEM customization services according to your needs.
13 months warranty for your devices and other parts. and 6 months for the batteries. Exend warranty,it'll cost 0.5% for each per year. Free maintenance of the devices and part of accessories replacement in the warranty .if out of the warranty, you'll have to pay the basic cost for them.

Speedata Exhibition

SPEEDATA has successfully taken part in CARTES SECURE CONNEXIONS in France, CeBIT in Germany and ISC West Exhibition in Los Angeles. It went very well and we visited our all European clients around at the same time.Welcome to Visit us! If you want to know more details, contact us!

FAQ:

Question 1: what's your MOQ?
Answer: the MOQ of speedata barcode scanner handheld PDA is 1 unit.


Question 2: how long is the delivery time?
Answer: The delivery time of barcode scanner goods is different from quantities:
If 1~100 pcs, It's about 5--10 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.


Question 3: Would you like to supply 1 sample for testing?
Answer: Yes, Of course. We can provide 1 sample Terminal PDA for your testing.


Question 4: What's the total price for 1 sample?
Answer: As a manufacturer of barcode scanner terminal PDA.the more you buy,the cheaper it'll be.
the sample price is a little bit higher than the common wholesale price.excluding the freight fee.


Question 5: Are you a manufacturer of Handheld PDA?
Answer: Yes, we are a chinese listed company of R&D and producing industrial PDA Terminal hardware and software solutions with over 8 years' OEM/ODM experience. and also we cooperate with Foxconn.


Question 6: what kind of services do you support?
Answer:

1.We provide you Free SDK and technical support for your barcode scanner.
2.we also provide ODM/OEM customization services according to your needs.
3.We support 13 months Warranty for your devices and other parts. and 6 months for the batteries. Exend warranty,it costs 0.5% for each per year.


Question 7: what's for payment term and delivery term ?
Answer:

1.It's generally 30%-100% TT in advance for all orders for the payment term.
with supporting via bank card, Paypal or West Union.

2. FOB Shenzhen for Delivery term.


Question 8: who are your customers?
Answer: 1.That's quiet a serious question, but our products are sold worldwide in South/North America, Europe, Asia, Africa Mid-east, etc.
2.The market share is increasing quickly every year and we get great feedback from our customers.
