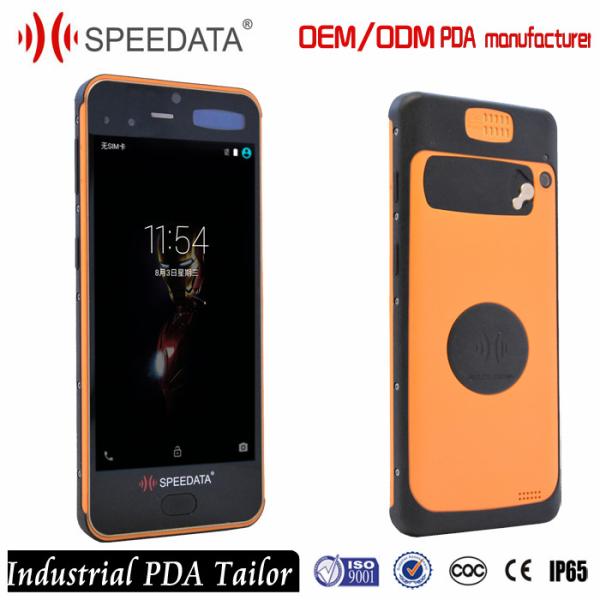

Bluetooth Mobile Phone PDA Industrial with Magnetic Charging , Back Clip Functional Options
Bluetooth Mobile Phone PDA Industrial with Magnetic Charging , Back Clip Functional Options
Bluetooth Mobile Phone PDA Industrial with Magnetic Charging , Back Clip Functional Options
Bluetooth Mobile Phone PDA Industrial with Magnetic Charging , Back Clip Functional Options
Specifications
Brand Name :
Speedata
Model Number :
KT55-S
Certification :
CE,ISO9001,IP65, 3C
Place of Origin :
Beijing,China
MOQ :
1pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs/month
Delivery Time :
5-8working days
Packaging Details :
one device packed in an independent carton box with standard accessories
Name :
5.5 inch Rugged Mobile Phone
OS :
Android 5.1
CPU :
Octa-core 1.3GHz ARM® Cortex-A53
ROM :
16GM
RAM :
2GB
Extensive Memory Slot :
128GB
Main Screen :
5.5 inch OLED 1920*1080 FHD
Sub-Screen :
0.91 OLED
GPS :
Yes
Bluetooth :
Yes
Description

Bluetooth Mobile Phone PDA Industrial with Magnetic Charging , Back Clip Functional Options

Features:


Rugged High Performace Industrial Harware Solutions

Applications of KT55 Android 5.1 Barcode Scanner:

  • Express and Logistics
  • Warehouse & Inventory
  • Mobile Sales Management
  • Retail Chain in Supermarket
  • Cargo Management
  • Information Tracking

Bluetooth Mobile Phone PDA Industrial with Magnetic Charging , Back Clip Functional Options

SPECIFICATION

KT55 Android Device with 2D Barcode
OS Android 5.1
CORE
Core CPU Octa-core 1.3GHz
ARM® Cortex-A53
WWLAN FDD B1B3B7
TDD B38B39B40
WCDMA B1B2B5B8
EVDO BC0
GSM B2B3B5B8
Flash ROM 16GB
RAM 2GB DDR3
General Configuration
Display Main Screen 5.5 inch OLED 1920*1080 FHD
Sub-screen 0.91 OLED
Touch screen Multi-point touch capacitive screen
Fingerprint Yes
GPS Support GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS
Bluetooth v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE)
WiFi 802.11 a/b/g/n
Protection class IP65
Drop resistance level 1.5m
Camera (Yes) Rear camera 13MP Camera
Front camera 5MP Camera
Keypad Front /Side 5 side buttons
Interface Micro-USB connector USB2.0 OTG
SIM card slot 1 standard SIM slot
1 Micro SIM slot
TF card slot Yes
power jack Micro-USB
Audio Jack Yes
External Interface OPTION USB, RS232, SPI, GPIO
Battery Type rechargeable Li-ion battery 6000mAh
Standby Time 600hours
Calls Time Up to 6hours
Charging Time 5 hours (USB charging)
Physical Characteristics Dimension 170*79*13mm
Weight >250g with battery (according config)
Operating temperature -20°C to 50°C / -4°F to 122°F
Storage temperature -30°C to 70°C / -22°F to 158°F
Humidity (non-condensed) Operating 10% to 90% / Storage 5% to 95%
Electrostatic discharge ± 15 kV air discharge, ± 8 kV contact discharge
EMC regulation CE
OPTIONS
Appearance color option various color options
Wireless charging option include Wireless transmitting base.
Far Infrared Meter Reading option IEC62056-21(IEC1107) communication protocol
IRIS recognition option The recognition distance is less than 20cm
PSAM option ISO7816 (SIM card interface)
NFC option NFC(Compatible 13.56MHz ISO 14443A ISO15693)

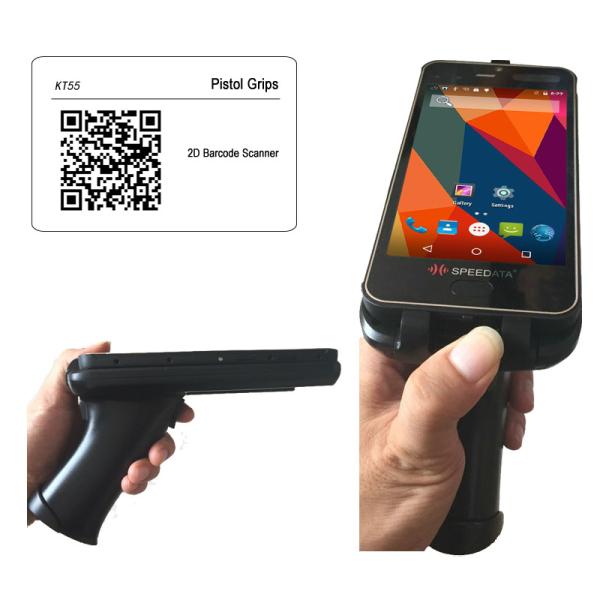

Barcode scanner Yes Honeywell N6603 1D & 2D barcode scanner

Clip device
RFID reader option 1 LF RFID(134.2KHz, ISO11784/11785, FDX-B/HDX) - reading distance 10cm
option 2 LF RFID(125KHz) - reading distance 10cm
option 3 HF RFID(13.56MHz ISO 14443A/B ISO 15693)- reading distance 5cm
option 4 R2000 UHF RFID 860-960MHz ISO18000-6C (EPC Gen2) - reading distance up to 3m-6m
IC card reader(Optional) option ISO7816 ID-1
Printer option 2 inch direct thermal printer
MRZ option ICAO Document 9303 / E13B and OCRB fonts
Fingerprint reader option 1 UPEK TCS1 (meet the FBI’s FIPS-201)
option 2 UPEK TCS2SS
option 3 Customized according to customer needs.
Free Extension Multiple extension interface, such as RS232, GPIO, USB, SPI. You can freely design what you want.

Bluetooth Mobile Phone PDA Industrial with Magnetic Charging , Back Clip Functional Options
