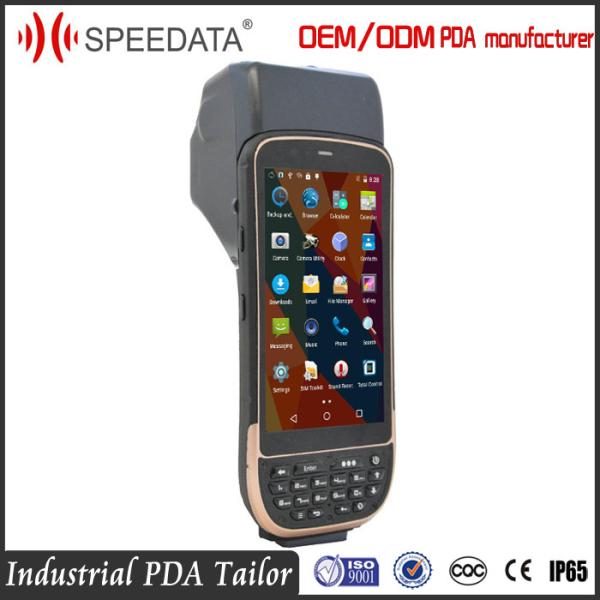

3G Hand Held Mobile Ip65 Barcode Scanner With Portable Thermal Printer Bluetooth
3G Hand Held Mobile Ip65 Barcode Scanner With Portable Thermal Printer Bluetooth
Specifications
Brand Name :
Speedata
Model Number :
KT50-B2-TCS1G-PE48S
Certification :
CE,IP65,3C,ISO9001
Place of Origin :
Beijing China
MOQ :
1pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs/month
Delivery Time :
one week
Packaging Details :
one device packing in a carton box with standard accessory
Name :
Fingerprint Terminal with Thermal Printer
OS :
Android 5.1
Screen Size :
5.0inch IPS 1280*720
CPU :
Quad-core 1.3Ghz ARM® Cortex-A53
Weight :
<300g
Flash ROM :
16GB
RAM :
2GB
Bluetooth :
v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE)
Prtective Class :
IP65
Interface :
USB connection
Description

3G Hand Held Mobile Ip65 Barcode Scanner With Portable Thermal Printer Bluetooth

  • Main Function

Fingerprint Reader

Thermal Printer

Android OS
OS Android 5.1
Hardware
Core board CPU Quad-core 1.3Ghz
ARM® Cortex-A53 (LPDDR2 and LPDDR3)
WWLAN FDD B1B3B7
TDD B38B39B40
WCDMA B1B2B5B8
EVDO BC0
GSM B2B3B5B8
Flash ROM 16GB
RAM 2GB DDR3
Extensive Memory Slot 128 GB
Motherboard
Display @ 5.0inch IPS 1280*720
touch screen Multi-point touch capacitive screen
Form Factor Bar type classical PDA,Industrial appearance
GPS Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS
DGPS (please check options)
Bluetooth v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE)
dual-band WiFi 2.4 and 5Ghz 802.11 a/b/g/n
External Interface USB HOST/RS232(Customized)
Protection class IP65
Drop resistance level 1.5m
Camera Function (Option) Camera 8MP Camera
Video Support still image and video capture
Sensor G-sensor YES
Keypad Front 4
Side 4
Interface Mini-USB connector USB2.0 connection
SIM card slot *2
TF card slot Yes
power jack Yes
Audio Jack Yes
Battery Type rechargeable Li-ion battery 2600mAh, 7.4V , Capacity19.24Wh, equal to 3.7V *5200mAh
Standby Time 500hours
Calls Time Up to 6hours
Charging Time 4 hours
Physical Characteristics Dimension 175*76*27mm
Weight >400g with battery (according config)
OPTIONS
DGPS ublox LEA-6T (with RTK)
MSR(Optional) Compatible with one, two, three track. (without PCI, EMV security certification.)
PSAM(Optional) ISO7816 (SIM card interfance)
IC card reader(Optional) ISO7816 ID-1
Fingerprint reader Yes UPEK TCS1G (meet the FBI’s FIPS-201)
option 2 UPEK TCS2SS
Printer (Yes) 2 inch Direct thermal line printing
Far Infrared Meter Reading (Optional) IEC62056-21(IEC1107) communication protocol
433Mhz module Require customers to provide 433Mhz wireless modules or specifications.
Require customers to provide 433Mhz wireless modules or specifications.
RFID Reader option1 LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX)
option 2 LF RFID(125KHz)
Yes HF RFID(13.56MHz ISO 1443A/B ISO 15693)
option 4 NFC(include 13.56MHz ISO 1443A/B )
none UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset
option 5 UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with R2000 shipset, Long distance reader.
Barcode Scanner option 1 NEWLAND:EM1300(1D barcode reader)
option 2 NEWLAND:EM3095(1D/2D barcode reader)
option 3 Symbol:SE955(1D laser barcode reader)
option 4 HoneyWell:N4313 (1D laser barcode reader)
Yes Symbol: SE4500(1D&2D barcode reader)

3G Hand Held Mobile Ip65 Barcode Scanner With Portable Thermal Printer Bluetooth
