USB Security Checking Handheld Fingerprint Scanner GSM GPRPS 4G Conneticon
USB Security Checking Handheld Fingerprint Scanner GSM GPRPS 4G Conneticon
USB Security Checking Handheld Fingerprint Scanner GSM GPRPS 4G Conneticon
USB Security Checking Handheld Fingerprint Scanner GSM GPRPS 4G Conneticon
USB Security Checking Handheld Fingerprint Scanner GSM GPRPS 4G Conneticon
USB Security Checking Handheld Fingerprint Scanner GSM GPRPS 4G Conneticon
USB Security Checking Handheld Fingerprint Scanner GSM GPRPS 4G Conneticon
USB Security Checking Handheld Fingerprint Scanner GSM GPRPS 4G Conneticon
Specifications
Brand Name :
SPEEDATA
Model Number :
KT80 china fingerprint scanner
Certification :
CE , IP65 , ISO9001, 3C
Place of Origin :
Beijing China
MOQ :
1 piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000 pcs per month
Delivery Time :
5- 8 working days
Packaging Details :
individual carton box per set
OS :
Android 5.1
Screen Size :
8 inch Tablet PC
CPU :
Eight-core 1.3GHz
Flash :
16GB
RAM :
2GB DDR
Battery :
13600mAh
Dimension :
270*176*20mm
Charging :
Micro USB + Magnetic charging
Description

USB Security Checking Handheld Fingerprint Scanner GSM GPRPS 4G Conneticon

Fingerprint Module Specifications
1:1 verification matching speed < 400ms(Feature extraction and fingerprint matching)
1:256 Fingerprint search time < 2s
Resolutions 500DPI
Image Size 256x304 pixels
Security level 5, adjustable
Capacity 1776 fingerprints
FAR <0.001%
FRR <%1.5
Supply power 3.6V-7V
Working current <80mA
Peak current <100mA
Communication interface TTL(RS232)
Communication Baud rate 38400bps,57600bps,115200bps
Working temperature -10°C~50°C
Working humidity 45%RH~85%RH (no dew)
Module dimension 55.0×22×24.5mm (L*W*H)

USB Security Checking Handheld Fingerprint Scanner GSM GPRPS 4G Conneticon

The Specification of KT80 China Fingeprint Scanner

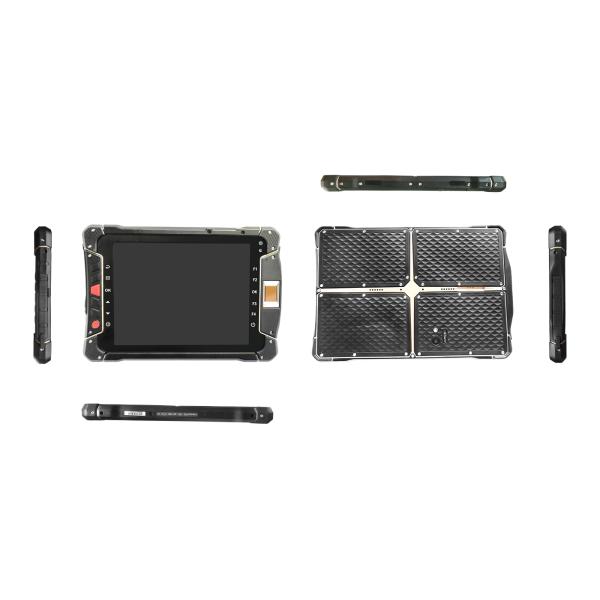

KT80 Rugged Tablet with Fingerprint Reader
OS Android 5.1
CORE
Core CPU Eight-core 1.3GHz
ARM® Cortex-A53
WWLAN FDD B1B3B7
TDD B38B39B40
WCDMA B1B2B5B8
EVDO BC0
GSM B2B3B5B8
Flash ROM 16GB
RAM 2GB DDR3
General Configuration
Display 8 inch IPS 1024*768
touch screen Multi-point touch capacitive screen
GPS Support GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS
Bluetooth v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE)
WiFi 802.11 a/b/g/n
Protection class IP65
Drop resistance level 1.5m
Camera Rear camera 13MP Camera
Front camera 5MP Camera
Keypad Front /Side 12keys
Interface Micro-USB connector USB2.0 OTG
SIM card slot 2 Micro SIM slot
TF card slot *2
charging Micro USB + Magnetic charging
Audio Jack *2
External Interface USB HOST *1
RS232 * 2
Battery Type rechargeable Li-ion battery 6800mAh*2
Standby Time 600hours
Calls Time Up to 6hours
Charging Time 8hours (magnetic charging)
Physical Characteristics Dimension 270*176*20mm
Weight >800g with battery (according config)
Operating temperature -20°C to 50°C / -4°F to 122°F
Storage temperature -30°C to 70°C / -22°F to 158°F
Humidity (non-condensed) Operating 10% to 90% / Storage 5% to 95%
Electrostatic discharge ± 15 kV air discharge, ± 8 kV contact discharge
EMC regulation CE

OPTIONS
Barcode scanner option HoneyWell 1D&2D barcode scanner
NFC option 13.56MHz NFC
IRIS recognition option The recognition distance is less than 20cm
PSAM option ISO7816 (SIM card interfance)
Infrared meter reading option IEC62056-21(IEC1107) communication protocol
Magnetic bracket option Apply to car or desktop fixation
Wrist strap option 360 degree rotation
Stylus option Capacitance touch pen
RFID option 1 LF RFID(134.2KHz, ISO11784/11785, FDX-B/HDX)
option 2 LF RFID(125KHz)
option 3 HF RFID(13.56MHz ISO 14443A/B ISO 15693)
option 4 UHF RFID 860-960MHz ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with R2000 shipset, Long distance reader.
Smart card reader option contact SMART card ISO7816 compliant
Fingerprint Yes crossmatch TCS1(With FBI, FIPS-201 ,ISO19794,ANSI,WSQ)
option2 Other custom fingerprint modules
MRZ
Other customers custom module.

Shipping

Delivery time : Samples 5-8 working days after order confirmation. Bulk order depend on the Quantity

USB Security Checking Handheld Fingerprint Scanner GSM GPRPS 4G Conneticon

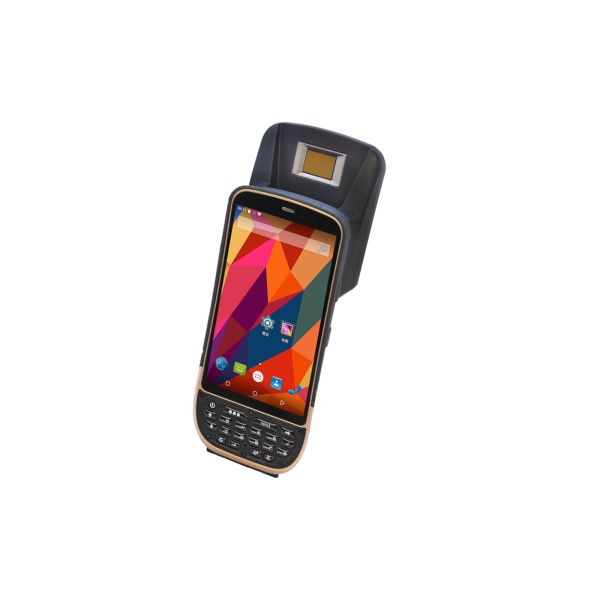

Relative Product KT50 Handheld Fingerprint Reader

USB Security Checking Handheld Fingerprint Scanner GSM GPRPS 4G Conneticon

Why choose us

1. Experienced

More than 9 years experience in Hardware IOT Platform !

R&D and oversea sales, we know how to be your good manufacturer and business partner!!!

2. High Quality Products

  • CE covers all SPEEDATA product !
  • Strictly QC Before Delivery !

4. Satisfied Service

Before-Sale Service: quick response within ONE working day; patient communication

On-Sale Service: delivery on time; quality and quantity assured

After-Sale Service: One year warranty period; technology support during your project.

Free SDK fro secondary development
