Operating System:

Android 2.3/ Windows mobile/ WinCE

Processor Type:

TI3715 A8 1GHz

Screen Size:

3.5 inch

Weight:

>256g

Model Number:

TT35

Place of Origin:

Beijing China
(Mainland)

RFID reader::

LF/ HF/ UHF RFID reader

Interface::

USB 2.0/ RS232

Screen::

Resolution 640*480, sunlight visible,
outside use ok

IP Class::

IP65

Wireless and Communication::

Wifi, GPS, GPRS, GSM, Phone features

Camera::

5M AF

OS option

OS

option 1

Windows mobile 6.1/6.5

option 2

WM CE 6

option 3

Android 4.0

Hardware

Core board

CPU

TI3715 A8 1Ghz

WWLAN

option 1

without modem

option 2

Huawei MU609 Module: GSM band 850/900/1800/1900MHz, GPRS, EDGE
UMTS 850/900/1900/ 2100MHz HSPA )

Memory

Flash ROM

512MB

RAM

512MB DDR

Extend Slot

Micro SD 32G (SDHC)

Motherboard

Display

3.5inch TFT LCD (Transflective screen VGA )

touch screen

4-wire resistive

Form Factor

Bar type classical Pocket PC,Industrial appearance

GPS

UBLOX 6010

Bluetooth

JORJIN WG7310 Bluetooth

WiFi

JORJIN WG7310 WiFi (802.11 b/g/n)

Fingerprint reader(Optional)

SM-621B(Optical fingerprint)

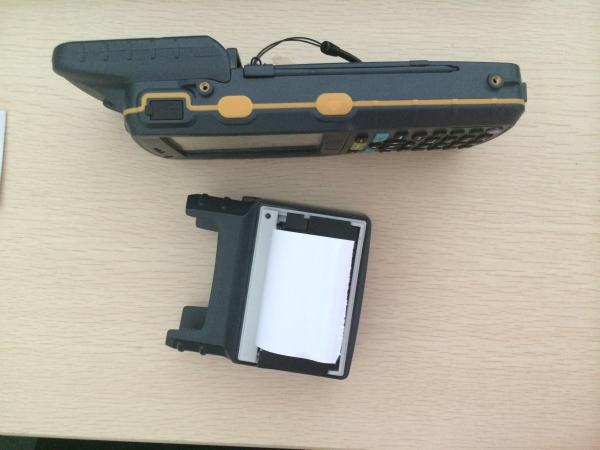

Thermal Printer (Optional )

Direct thermal line printing

Far Infrared Meter Reading (Optional)

IEC62056-21(IEC1107) communication protocol

RFID Reader

option 1

LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX)

option 2

LF RFID(125KHz)

option 3

HF RFID(13.56MHz ISO 14443A/B)

option 4

HF RFID(13.56MHz ISO 1443A/B ISO 15693)

option 5

NFC Reader (only android OS)

option 6

UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) /
ISO18000-6A,B compatibility in direct mode----with AS3992 shipset

option 7

UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) /
ISO18000-6A,B compatibility in direct modee----
with inpinj R2000 shipset

barcode scanner

option 1

NEWLAND:EM1300(1D barcode reader)

option 2

NEWLAND:EM3000(1D/2D barcode reader)

option 3

symbol:SE955(1D laser barcode reader)

option 4

HoneyWell:N4313 (1D laser barcode reader)

option 5

Honeywell:5100(1D/2D barcode reader)

option 6

Symbol: se4500(1D&2D barcode reader)

External Interface

USB HOST/RS232(Customized)

Protection class

IP65

Drop resistance level

1.5m

Camera Function

Camera

5MP Camera

Video

Support still image and video capture

Keypad

Front

30keys

Side

4keys

Interface

Mini-USB connector

USB2.0 connection

SIM card slot

Yes

PSAM card slot*2

option

TF card slot

Yes

power jack

Yes

Audio Jack

Yes
