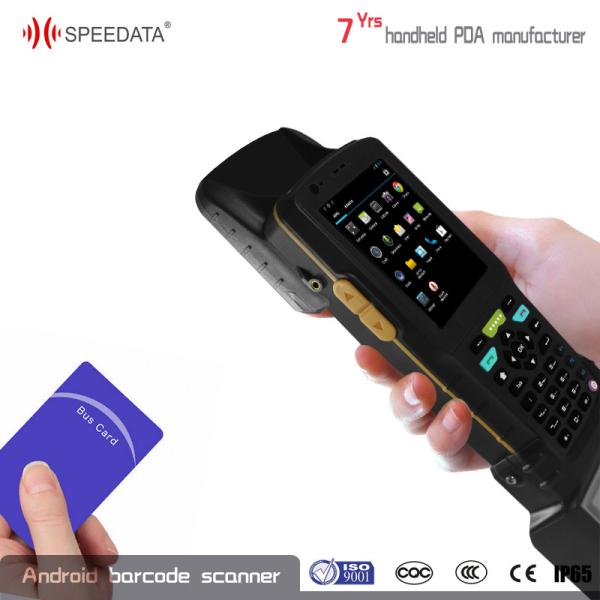

8GB ROM Android Handheld RFID Reader , Rugged UHF Scanner PDA Printer
8GB ROM Android Handheld RFID Reader , Rugged UHF Scanner PDA Printer
8GB ROM Android Handheld RFID Reader , Rugged UHF Scanner PDA Printer
8GB ROM Android Handheld RFID Reader , Rugged UHF Scanner PDA Printer
8GB ROM Android Handheld RFID Reader , Rugged UHF Scanner PDA Printer
8GB ROM Android Handheld RFID Reader , Rugged UHF Scanner PDA Printer
Specifications
Brand Name :
Speedata
Model Number :
TT35
Certification :
3C /FCC /ROHS /IP65 /1.5M drop
Place of Origin :
china
MOQ :
10pcs
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS
Packaging Details :
Normal package
OS :
Android 4.0.3
Memory :
512MB ROM+512MB RAM
Display :
3.5inch IPS 480*640
Battery :
2250mAh/7.4V
Slot :
2*PSAM, 1*SIM
Camera :
Support still image and video capture AF 5MP
Description

8GB ROM Android Handheld RFID Reader , Rugged UHF Scanner PDA Printer

8GB ROM Android Handheld RFID Reader , Rugged UHF Scanner PDA Printer


TT35 handheld terminal has 3 compatible operating systems, especially for State Grid
Corporation, Support Far infrared reading and temperature measuring module in hard and tough
industries environment.

Features of TT35 handheld RFID reader UHF scanner PDA printer

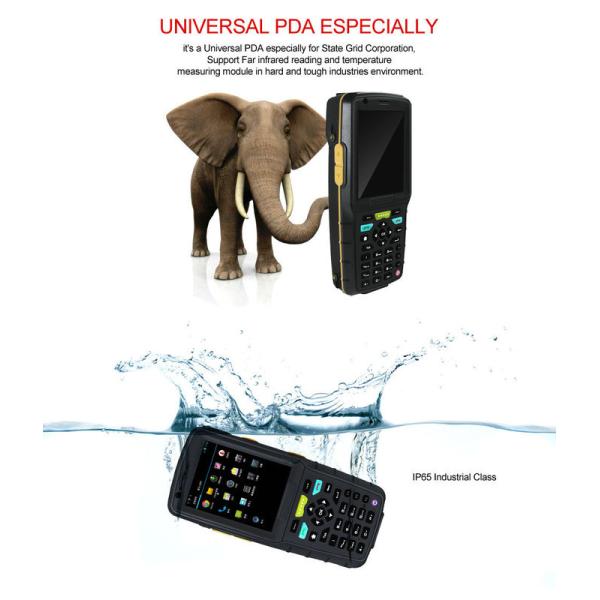

1.it's a Universal PDA especially for State Grid Corporation, Support Far infrared reading and temperature measuring module in hard and tough industries environment.
2. 3.5inch high-definition IPS LCD capacitive touch screen with sunlight visible for cost-effective and high performance

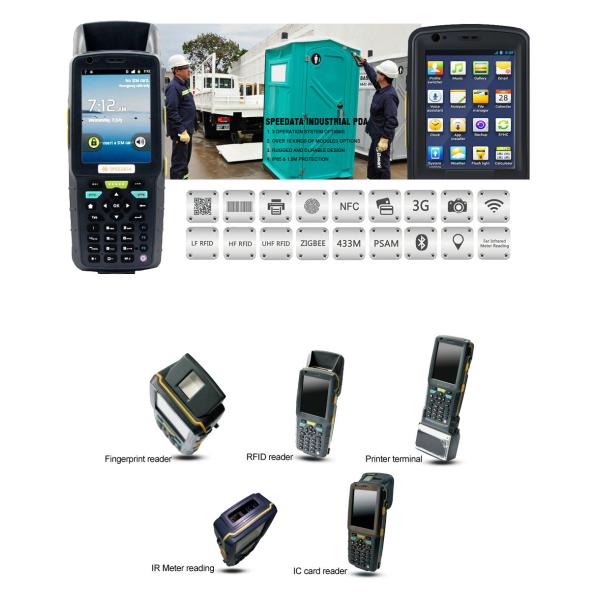

3.Mutiple modules optional for your customization, Support 1D/2D barcode scanning,LF/HF/UHF RFID/fingerprint reading, terminal printer, MSR, PSAM function, Reserved identity recognition, fingerprint identification, infrared measuring temperature, etc. strong and wide extensibility
4.Built-in Ublox/beidou double GPS modules, more accurate positioning


Development Environment of TT35 handheld RFID reader UHF scanner PDA printer

Operating System

Windows Mobile 6.1/6.5 (Optional 1)
Windows CE 6.0 (Optional 2)
Android 4.0.3

SDK

Software Development Kit

Language

C#, java

Tool

Microsoft Visual Studio 2005

Fundamental Characteristics of TT35 handheld RFID reader UHF scanner PDA printer

CPU

TI AM3715 A8 1Ghz

Memory

512MB DDR RAM + 512MB Frash ROM

Storage

Micro SD/TF card max.32GB expansion

Display

3.5-inch TFT LCD (Transflective screen VGA 640*480)
4-wire resistive touch screen


Communications of TT35 handheld RFID reader UHF scanner PDA printer

TT35 handheld RFID reader UHF scanner PDA printer

WWLAN

Without modem (No 3G/GPSR Communication module) (Optional 1)
Huawei MU609 Module: GSM band 850/900/1800/1900MHz,
GPRS, EDGE UMTS 850/900/1900/ 2100MHz HSPA ) (Optional 2)

WiFi

JORJIN WG7310 WiFi (802.11 b/g/n)

Bluetooth

JORJIN WG7310 Bluetooth

GPS

UBLOX 6010


Physical Characteristics of TT35 handheld RFID reader UHF scanner PDA printer

Dimensions

182*82*36mm

Weight

≧400g with battery (according config)

Expansion Slots

2*PSAM, 1*SIM

Battery

rechargeable li-ion battery 4500mAh 3.7V

Or rechargeable li-ion battery 2250mAh 7.4V (if with printer)

500-hours standby time, Up to 6-hours calling time, 4-hours charging time

Camera

5MP Camera

Video

Support still image and video capture

Audio

3.5mm 4way plug

Keypad

Front 30keys, Side 4keys

Interfaces

1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack
USB Host/RS232 interface (Customized)


User Environment of TT35 handheld RFID reader UHF scanner PDA printer

Operating Temp.

-10 to 50℃

Humidity

10%RH - 90%RH (Non-condensing)

Protection class

IP65

Drop resistance level

1.5M


Data Modules of TT35 handheld RFID reader UHF scanner PDA printer
Barcode scanners (optional )

1D Linear Scanner (Optional)

1D scanner

Symbol SE955 (Optional 1)
NEWLAND EM1300 (Optional 2)
HoneyWell N4313 (Optional 3)

2D Imager Scanner (Optional)

1D/2D scanner

NEWLAND EM3000-hardware decoding (Optional 1)
Symbol SE4500-software decoding (Optional 2)


RFID readers of TT35 handheld RFID reader UHF scanner PDA printer

UHF RFID reader

UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset -- reading distance up to 3m



Other Modules (optional ) of TT35 handheld RFID reader UHF scanner PDA printer

Printer

Integrate 2inch Direct thermal line printing



8GB ROM Android Handheld RFID Reader , Rugged UHF Scanner PDA Printer
8GB ROM Android Handheld RFID Reader , Rugged UHF Scanner PDA Printer
8GB ROM Android Handheld RFID Reader , Rugged UHF Scanner PDA Printer
