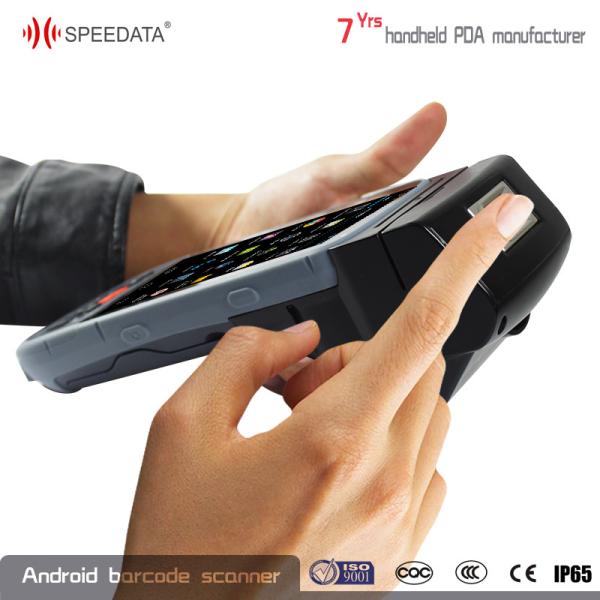

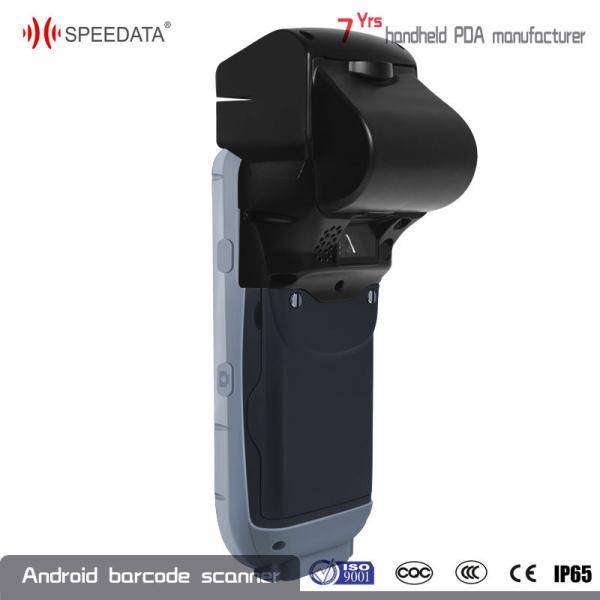

Bluetooth GPS WIFI Android Fingerprint Scanner , Micro Sd Terminal Printer
Bluetooth GPS WIFI Android Fingerprint Scanner , Micro Sd Terminal Printer
Bluetooth GPS WIFI Android Fingerprint Scanner , Micro Sd Terminal Printer
Bluetooth GPS WIFI Android Fingerprint Scanner , Micro Sd Terminal Printer
Bluetooth GPS WIFI Android Fingerprint Scanner , Micro Sd Terminal Printer
Bluetooth GPS WIFI Android Fingerprint Scanner , Micro Sd Terminal Printer
Specifications
Brand Name :
speedata
Model Number :
KT45
Certification :
3C /FCC /ROHS /IP65 /1.5M drop
Place of Origin :
china mainland
MOQ :
10pcs
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Packaging Details :
conventional package
Storage :
Micro SD/TF card max.32GB expansion
Memory :
8GB ROM+1GB RAM
Display :
4.5inch IPS 480 * 854 LCD Multi-point touch screen
Function Options :
1.Barcode scanner:1D/2D 2.RFID reader:LF/HF/UHF/NFC 3.Fingerprint 4.DGPS/PSAM/433M/Printer 5.IC Card reader/MSR/IR Meter reading
Wireless :
1.Bluetooth 2.1/3.0/4.0 2.Wifi 802.11b/g/n 3.GPRS/HSPA
CPU :
A7 1.3GHz Qard-core
Description

Bluetooth GPS WIFI Android Fingerprint Scanner , Micro Sd Terminal Printer

Speedata KT45 is widely used among different areas,including: Logistics, warehouse management, fixed asset management, goods or livestock traceability, 2D barcode reader or other electronic documents, membership management, mobile sales visits, inspection or field personnel management.

Speedata is famous for R&D, Manufacture and marketing of wireless mobile computing datum collector and industrial handheld PDA using in the wide rang of business and industry. It supports the whole mobile computing system solutions for our customers to creat greater value at the same time.

Data Modules of KT45 handheld fingerprint scanner reader terminal PDA printer

Barcode scanners (optional )

1D Linear Scanner (Optional)

1D scanner

Symbol SE955 (Optional 1)

Newland EM1300 (Optional 2)

Honeywell N4313 (Optional 3)

2D Imager Scanner (Optional)

1D/2D scanner

Symbol SE4500 (Optional 1)

Newland EM3000 (Optional 2)

Biometric fingerprint (optional ) of KT45 biometric handheld portable fingerprint scanner

Fingerprint

UPEK TCSI (meet the FBI’s FIPS-201) (Optional 1)

Fingerprint

UPEK TCS2SS (Optional 2)

Other Modules (optional ) of KT45 biometric handheld portable fingerprint scanner

DGPS

Ublox LEA-6T (with RTK)

PSAM

ISO7816 (SIM)

MSR

Compatible with one, two, three track

(without PCI, EMV security certification)

IC card reader

ISO7816 ID-1

Printer

Integrete 2inch Direct thermal line printing

Far Infrared Meter Reading

IEC62056-21 (IEC1107) communication protocol

433Mhz

Require customers to provide 433Mhz wireless modules or specifications

Zigbee

Require customers to provide 433Mhz wireless modules or specifications

Development Environment of KT45 handheld fingerprint scanner reader terminal PDA printer

Operating System

Android 4.4.2

SDK

Software Development Kit

Language

Java

Fundamental Characteristics of KT45 handheld fingerprint scanner reader terminal PDA printer

CPU

ARM® Cortex-A7 MPCoreTM (LPDDR2 and LPDDR3) Quad-core 1.3Ghz

Memory

1GB DDR3 RAM + 8GB Frash ROM

Storage

Micro SD/TF card max.32GB expansion

Display

4.5-inch IPS 480 * 854 Multi-point touch capacitive screen

Communications of KT45 handheld fingerprint scanner reader terminal PDA printer

WWLAN

GSM band 850/900/1800/1900MHz,

Class 12 GPRS,

EDGE UMTS 850/900/1900/2100MHz HSPA

WiFi

2.4Ghz 802.11 b/g/n

Bluetooth

V2.1+EDR / 3.0+HS / V4.0 Low Energy(LE)

GPS

Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN).

Support Full AGPS

DGPS (please check options)

Physical Characteristics of KT45 handheld fingerprint scanner reader terminal PDA printer

Dimensions

175 * 76 * 28mm

Weight

≧400g (includes main battery)

Expansion Slots

1*PSAM, 2*SIM

Battery

rechargeable li-ion battery 4500mAh 3.7V

Or rechargeable li-ion battery 2250mAh 7.4V (if with printer)

500hours standby time, Up to 6hours calling time, 4hours charging time

Camera

8MP Camera

Video

Support still image and video capture

Audio

3.5mm 4way plug

Keypad

Front 17keys, Side 4keys

Interfaces

1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack

USB Host (Optional), RS-232 interface (Optional)

User Environment of KT45 handheld fingerprint scanner reader terminal PDA printer

Operating Temp.

-10 to 50℃

Humidity

10%RH - 90%RH (Non-condensing)

Protection class

IP65

Drop resistance level

1.5M

Specifications of KT45 biometric handheld portable fingerprint scanner

1.Special structure and external cushion protection design with solid and wearproof

bodyframe of 2 colors conbination
2.The incubator and active tags are matched to create a complete cold-chain transport system
3.4.5inch high-definition IPS LCD capacitive touch screen to meet your visual enjoyment
4.800MP camera with high definition ,it's easy to collect all kinds of image information
5.Android 4.4 Operation System, More Stable and Reliable,provide complete SDK and technical

support to make further app development easily

Bluetooth GPS WIFI Android Fingerprint Scanner , Micro Sd Terminal Printer

jjljlBluetooth GPS WIFI Android Fingerprint Scanner , Micro Sd Terminal PrinterBluetooth GPS WIFI Android Fingerprint Scanner , Micro Sd Terminal PrinterBluetooth GPS WIFI Android Fingerprint Scanner , Micro Sd Terminal Printer

Bluetooth GPS WIFI Android Fingerprint Scanner , Micro Sd Terminal PrinterBluetooth GPS WIFI Android Fingerprint Scanner , Micro Sd Terminal Printer
