Orange Windows Wireless PDA Thermal Printer 4.5 Inch High Definition IPS LCD
Orange Windows Wireless PDA Thermal Printer 4.5 Inch High Definition IPS LCD
Orange Windows Wireless PDA Thermal Printer 4.5 Inch High Definition IPS LCD
Orange Windows Wireless PDA Thermal Printer 4.5 Inch High Definition IPS LCD
Orange Windows Wireless PDA Thermal Printer 4.5 Inch High Definition IPS LCD
Orange Windows Wireless PDA Thermal Printer 4.5 Inch High Definition IPS LCD
Orange Windows Wireless PDA Thermal Printer 4.5 Inch High Definition IPS LCD
Orange Windows Wireless PDA Thermal Printer 4.5 Inch High Definition IPS LCD
Specifications
Brand Name :
Speedata
Model Number :
TT43
Certification :
3C /FCC /ROHS /IP65 /1.5M drop
Place of Origin :
china factory direct
MOQ :
1pcs of wireless all in one PDA terminal printer
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs of wireless all in one PDA terminal printer
Delivery Time :
5-8 work days
Packaging Details :
conventional package of wireless all in one PDA terminal printer
OS :
Windows Mobile6.1/6.5 or CE 6.0
CPU :
T1 AM3715 1GHz
Display :
4.5inch IPS 480*800
Camera :
Support still image and video capture AF 5MP
Battery :
4500mAh/3.7V or 2250mAh/7.4V
Quality :
3C /FCC /ROHS /IP65 /1.5M drop
Memory :
512MB ROM+512MB RAM
color :
orange
Storage :
Micro SD/TF card max.32GB expansion
Function Options :
1.Barcode scanner:1D/2D 2.RFID reader:LF/HF/UHF/NFC 3.Fingerprint 4.DGPS/PSAM/433M/Printer 5.IC Card reader/MSR/IR Meter reading
Description

Orange Windows Wireless PDA Thermal Printer 4.5 Inch High Definition IPS LCD

Orange Windows Wireless PDA Thermal Printer 4.5 Inch High Definition IPS LCD



Specifications of TT43 windows wireless all in one PDA terminal printer
1. 4.5inch high-definition IPS LCD capacitive touch screen to meet your visual enjoyment
2. 500MP camera with high definition ,it's easy to collect all kinds of image information
3. Support 1D/2D barcode scanning,LF/HF/UHF RFID/fingerprint reading, terminal printer, MSR, PSAM function etc.
4. 3 compatible operating systems , not only to support the market's most fiery Android system,

but also to meet with the Windows CE/Mobile systems, as well as secondary development. Customers

can update the OS of the device to meet their needs and also can support compatibility function.

Development Environment
Operating System Windows Mobile 6.1/6.5 (Optional 1)
Windows CE 6.0 (Optional 2)
Android 4.0.3
SDK Software Development Kit
Language C#, java
Tool Microsoft Visual Studio 2005
Fundamental Characteristics
CPU TI AM3715 A8 1Ghz
Memory 512MB DDR RAM + 512MB Frash ROM
Storage Micro SD/TF card max.32GB expansion
Display 4.5-inch IPS 854*480 (Without Transflective screen)
4-wire resistive touch screen
Communications
WWLAN Without modem (Optional 1)

Huawei MU609 Module: GSM band 850/900/1800/1900MHz,

GPRS, EDGE

UMTS 850/900/1900/ 2100MHz HSPA ) (Optional 2)
WiFi JORJIN WG7310 WiFi (802.11 b/g/n)
Bluetooth JORJIN WG7310 Bluetooth
GPS UBLOX 6010
Physical Characteristics
Dimensions 175*76*28mm
Weight ≧400g with battery (according config)
Expansion Slots 2*PSAM, 1*SIM
Battery rechargeable li-ion battery 4500mAh 3.7V
Or rechargeable li-ion battery 2250mAh 7.4V (if with printer)
500-hours standby time, Up to 6-hours calling time, 4-hours charging time
Camera 5MP Camera
Video Support still image and video capture
Audio 3.5mm 4way plug
Keypad Front 17keys, Side 4keys
Interfaces 1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack
USB Host/RS232 interface (Customized)
User Environment
Operating Temp. -10 to 50℃
Humidity 10%RH - 90%RH (Non-condensing)
Protection class IP65
Drop resistance level 1.5M


Multiple Functions of TT43 windows wireless all in one PDA terminal printer

Data device Modules
Barcode scanners (optional )
1D Linear Scanner (Optional)
1D scanner Symbol SE955 (Optional 1)
NEWLAND EM1300 (Optional 2)
Symbol SE4500 (Optional 3)
2D Imager Scanner (Optional)
1D/2D scanner NEWLAND EM3000 (Optional 1)
Symbol SE4500 (Optional 2)
RFID readers
LF RFID reader (134.2khz, ISO11784/11785, FDX-B/HDX) (Optional 1)
(125KHz) (Optional 2)
HF RFID reader (13.56MHz ISO 14443A/B ISO 15693)
NFC reader (include 13.56MHz ISO 14443A ISO 15693)
UHF RFID reader

UHF RFID 860-960MHZ ISO

18000-6C (EPC Gen2) /ISO18000-6A,B

compatibility in direct mode----with AS3992 shipset

UHF RFID 860-960MHZ ISO

18000-6C (EPC Gen2) with PR9200 shipset
Biometric fingerprint (optional )
Fingerprint UPEK TCS1 (meet the FBI’s FIPS-201) (Optional 1)
Fingerprint UPEK TCS2SS (Optional 2)
Other Modules (optional )
DGPS Ublox LEA-6T (with RTK)
PSAM ISO7816 (SIM card interfance)
MSR Compatible with one, two, three track. (without PCI, EMV security certification)
IC card reader ISO7816 ID-1
Printer Integrate 2 inch Direct thermal line printing
Far Infrared Meter Reading IEC62056-21 (IEC1107) communication protocol
433Mhz Require customers to provide 433Mhz wireless modules or specifications
Zigbee Require customers to provide 433Mhz wireless modules or specifications

Orange Windows Wireless PDA Thermal Printer 4.5 Inch High Definition IPS LCD

Orange Windows Wireless PDA Thermal Printer 4.5 Inch High Definition IPS LCD


Orange Windows Wireless PDA Thermal Printer 4.5 Inch High Definition IPS LCD

Orange Windows Wireless PDA Thermal Printer 4.5 Inch High Definition IPS LCD

Orange Windows Wireless PDA Thermal Printer 4.5 Inch High Definition IPS LCD

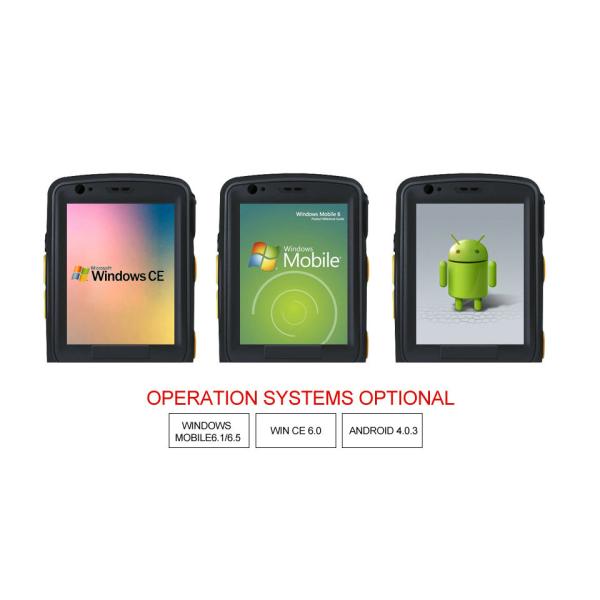

TT43 orange windows wireless all in one PDA terminal printer with 4 colors and 3 OS options
