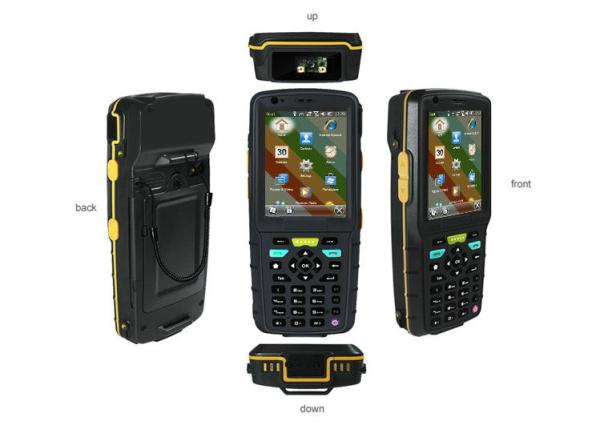

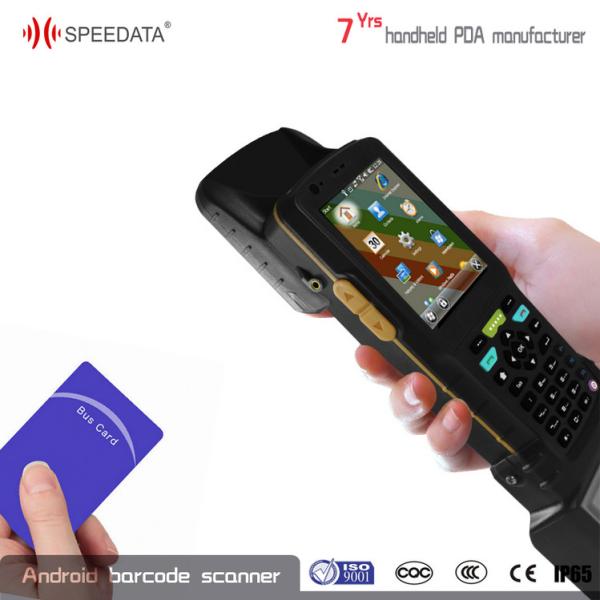

3.5 Inch Display PDA Thermal Printer Portable T1 AM3715 1GHz
3.5 Inch Display PDA Thermal Printer Portable T1 AM3715 1GHz
3.5 Inch Display PDA Thermal Printer Portable T1 AM3715 1GHz
3.5 Inch Display PDA Thermal Printer Portable T1 AM3715 1GHz
3.5 Inch Display PDA Thermal Printer Portable T1 AM3715 1GHz
3.5 Inch Display PDA Thermal Printer Portable T1 AM3715 1GHz
3.5 Inch Display PDA Thermal Printer Portable T1 AM3715 1GHz
3.5 Inch Display PDA Thermal Printer Portable T1 AM3715 1GHz
Specifications
Brand Name :
Speedata
Model Number :
TT35
Certification :
3C /FCC /ROHS /IP65 /1.5M drop
Place of Origin :
china factory direct
MOQ :
1pcs of best all in one PDA terminal printer
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs of PDA terminal printer
Delivery Time :
5-8 work days
Packaging Details :
conventional package of best all in one PDA terminal printer
Storage :
Micro SD/TF card max.32GB expansion
CPU :
T1 AM3715 1GHz
OS :
Windows Mobile6.1/6.5 or CE 6.0
Wireless :
1.Bluetooth 2.Wifi 3.GPRS
Memory :
512MB ROM+512MB RAM
Display :
3.5inch IPS 480*640
Battery :
4500mAh/3.7V or 2250mAh/7.4V
Positioning module :
Ublox The 7th Generation
Description

3.5 Inch Display PDA Thermal Printer Portable T1 AM3715 1GHz

3.5 Inch Display PDA Thermal Printer Portable T1 AM3715 1GHz

Advantages of TT35 best all in one PDA terminal printer

1.Universal product, Support extending corresponding module according to customers'demands

2.Both ultra-sensitive resistive screen, durable and suitable for complex industrial environments.

3.3 Operation Systems optional: Android, Mobile CE/Mobile

4.Both ultra sensitive resistive screen and rugged design with durable and suitable for complex industrial environments.

Specifications of TT35 best all in one PDA terminal printer

Development Environment
Operating System Windows Mobile 6.1/6.5 (Optional 1)
Windows CE 6.0 (Optional 2)
Android 4.0.3
SDK Software Development Kit
Language C#, java
Tool Microsoft Visual Studio 2005
Fundamental characteristics
CPU TI AM3715 A8 1Ghz
Memory 512MB DDR RAM + 512MB Frash ROM
Storage Micro SD/TF card max.32GB expansion
Display 3.5-inch TFT LCD (Transflective screen VGA 640*480)
4-wire resistive touch screen
Communications
WWLAN Without modem (No 3G/GPSR Communication module) (Optional 1)

Huawei MU609 Module: GSM band 850/900/1800/1900MHz,

GPRS, EDGE

UMTS 850/900/1900/ 2100MHz HSPA ) (Optional 2)
WiFi JORJIN WG7310 WiFi (802.11 b/g/n)
Bluetooth JORJIN WG7310 Bluetooth
GPS UBLOX 6010
Physical Characteristics
Dimensions 182*82*36mm
Weight ≧400g with battery (according config)
Expansion Slots 2*PSAM, 1*SIM
Battery rechargeable li-ion battery 4500mAh 3.7V
Or rechargeable li-ion battery 2250mAh 7.4V (if with printer)
500-hours standby time, Up to 6-hours calling time, 4-hours charging time
Camera 5MP Camera
Video Support still image and video capture
Audio 3.5mm 4way plug
Keypad Front 30keys, Side 4keys
Interfaces 1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack
USB Host/RS232 interface (Customized)
User Environment
Operating Temp. -10 to 50℃
Humidity 10%RH - 90%RH (Non-condensing)
Protection class IP65
Drop resistance level 1.5M

Multiple modular options of TT35 best all in one PDA terminal printer

Data Modules
Barcode scanners (optional )
1D Linear Scanner (Optional)
1D scanner Symbol SE955 (Optional 1)
NEWLAND EM1300 (Optional 2)
HoneyWell N4313 (Optional 3)
2D Imager Scanner (Optional)
1D/2D scanner NEWLAND EM3000-hardware decoding (Optional 1)
Symbol SE4500-software decoding (Optional 2)
RFID readers
LF RFID reader (134.2khz, ISO11784/11785, FDX-B/HDX) (Optional 1)
(125KHz) (Optional 2)
HF RFID reader (13.56MHz ISO 14443A/B ISO 15693)
NFC reader (include 13.56MHz ISO 14443A ISO 15693)
UHF RFID reader

UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) /

ISO18000-6A,B compatibility in direct mode

----with AS3992 shipset -- reading distance up to 3m
Biometric fingerprint (optional )
Fingerprint SM-621B (optical fingerprint) (Optional 1)
Other Modules (optional )
DGPS Ublox LEA-6T (with RTK)
PSAM ISO7816 (SIM card interfance)
MSR

Compatible with one, two, three track.

(without PCI, EMV security certification)
IC card reader ISO7816 ID-1
Printer Integrate 2inch Direct thermal line printing
Far Infrared Meter Reading IEC62056-21 (IEC1107) communication protocol
433Mhz Require customers to provide 433Mhz wireless modules or specifications
Zigbee Require customers to provide 433Mhz wireless modules or specifications

3.5 Inch Display PDA Thermal Printer Portable T1 AM3715 1GHz3.5 Inch Display PDA Thermal Printer Portable T1 AM3715 1GHz

3.5 Inch Display PDA Thermal Printer Portable T1 AM3715 1GHz

3.5 Inch Display PDA Thermal Printer Portable T1 AM3715 1GHz

3.5 Inch Display PDA Thermal Printer Portable T1 AM3715 1GHz
