Specifications
Brand Name :
SPEEDATA
Model Number :
SD60RT
Certification :
IP65/CE/ISO9001/3C/CTA//FCC
Place of Origin :
Beijing China
MOQ :
1 piece
Payment Terms :
Western Union, L/C, T/T, MoneyGram, Western Union
Supply Ability :
10000pcs/month
Delivery Time :
3-10 days
Packaging Details :
Standard Independent Carton Box with Accessories
Name :
RFID Handheld Terminal
OS :
Android 8.1
CPU :
Quad-Core 2.0GHz
RAM :
2GB or 4GB
ROM :
16GB or 64GB
Expansion :
2Nano SIM cards,1micro SD card slot up to 128GB,USB-Type C, support fast charging, OTG，Support fast charging5V/9A 1.67A、charging and bottom USB connector
Camera :
Rear camera 13MP AF, High brightness LED flash ,Front Camera 5MP FF
Display :
6.0 inches,IPS high light screen , 2160*1080
Communication :
4G/WiFi/GPS/Bluetooth
Battery :
Li-ion 6000mAh, Rechargeable Removable
Certificate :
CCC/CTA/CE/FCC/ISO9001/IP65
Sealing :
IP67
Operation Temperature :
-20℃ ~+55℃
Humidity :
5%~95%（No condensation）
NFC RFID Reader :
NFC(PN547) ; ISO 14443A/B; ISO 15693 MIFARE
Barcode Scanner :
NewLand CM 60
PSAM :
Support
Dimentions :
160*80*15.8mm(handle length 110mm
Weight( with battery) :
600g
Description

Android 8.1 Quad-Core 2.0GHz 2GB + 4GB RAM 16GB+64GB ROMIP65 NewLand CM 60 Honeywell N6603 Handheld UHF RFID Reader Pistol Grip

Android 8.1 Quad-Core 2.0GHz 2GB or 4GB RAM 16GB + 64GB ROM IP65Android 8.1 Quad-Core 2.0GHz 2GB or 4GB RAM 16GB + 64GB ROM IP65Android 8.1 Quad-Core 2.0GHz 2GB or 4GB RAM 16GB + 64GB ROM IP65

Products Introduction

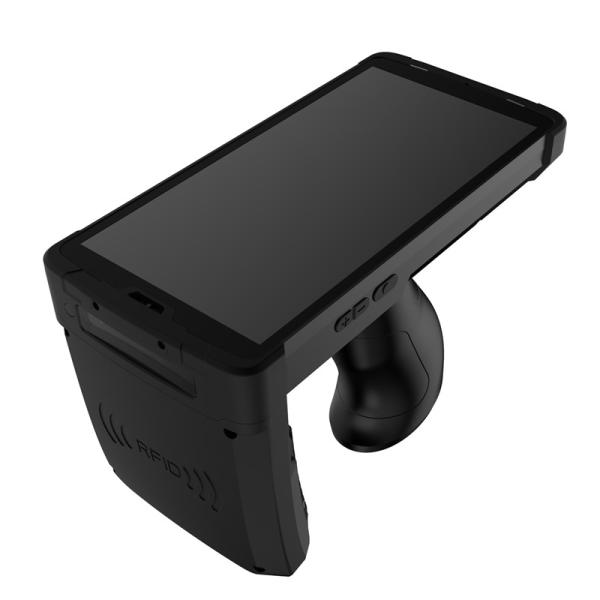

SD60RT is a handheld UHF RFID Reader Data Collection Terminal for Warehouse inventory, Asset management,Shoes and clothing management and Jewellery management . Unique Pistol Grip Design makes it comfortable and suitable to hand held for Workers and Operators.

It has High Performance for reading long distance : indoor > 18m;Outdoor environment >8m; Group read rate > 200 tags per second.

  • R2000 UHF modes, easily competent inventory task.
  • Reliable heat dissipation design guarantees high power and high recognition rate, and is prefect for inventory application.
  • Fuselage 6000mAh large capacity battery + handle 4000mAh standby battery, double protection.

  • New worldCM60/ HonewellN6703 Scanning module.

  • Supporting high frequency and ultra high frequency double frequency functions.

Prducts Features:

1. Integrated Printable Handheld Terminal

Industry-level Printable handheld terminal which adopts ergonomic design and is compact and flexible.


2. Convenient Appearance Design

Slim and ergonomics design, it is convenient and comfortable for holding and carrying. 6.0”FHD Screen (2160*1080) Work even with water or Gloves.


3. High-speed Operation Performance

With Android 8.1 Operating System, matching Octa-Core 2.0GHz High Speed Processor with prefect compatibility and computing capability, high-speed operating efficiency is suitable for strict application requirement.

4. Industrial Grade Durability

IP67 industrial grade, solid and light body can bear the height of 1.5m dropping and 1000 times tumbled within the scope of 0.5m. 600g thin and light design, waterproof,dustproof provide long time using without fatiguet.


5. Excellent Identification Ability

Fully support 1D and 2D code scanning with ultra-strong decoding capability and quick identification ability, easy read the damaged and bend low quality code.


6. HD Camera

Rear Camera 13MP AF；Front Camera 5MP FF Autofocus Camera, is convenient for client to collect all kind of images and video.


7. Multiple Extensions

Support GPS , AGPS and Beidou compass navigation.


8. Always-available Wireless Connection

Supports 802.11 a/b/g/n full-band wireless communications and maintains real-time connection with the system to ensure high efficient operation.

Specifications

SD60RT Basic parameters

CPU Quad-core 2.0GHz
OS Android 8.1
RAN 2GB or 4GB
ROM 16GB or 64GB
camera Rear camera 13MP AF, High brightness LED flash ,Front Camera 5MP FF
Display size /type 6.0 inches,IPS high light screen
Resolution 2160*1080
Touch Screen 5-point capacity touch screen
Size 160*80*15.8mm(handle length 110mm)
Weight(with battery) 600g
Battery capacity Master:6000mAh Handle:4000mAh
Charging PE fast charging, full charged time<4 hours
Bluetooth BT4.1 BLE
Wi-Fi IEEE 802.11 a/b/g/n 2.4G 5Gdual frequency
WWLAN FDD-LTE B1/B3/B7 ,TDD-LTE B38/B39/B40/B41,TDSCDMA B34/B39,WCDMA B1/B2/B5/B8,GSM B2/B3/B5/B8,CDMA1x/CDMA2000 BC0/BC1
GPS positioning module GPS+BD+GLONASS
Audio Front dual stereo speakers, Volume 90db±3db(test distance 10cm)
Sensor Geomagnetism, acceleration, optical distance
Expansion 2Nano SIM cards,1micro SD card slot up to 128GB,USB-Type C, support fast charging, OTG,Support fast charging5V/9A 1.67A,charging and bottom USB connector
Keypad 2 audio buttons+2 function buttons(One on the left and one on the right)+ 1 power button+1 handle button
Notification Sound, Vibration, LED prompt
Operating temperature -20℃ to +55℃
Storage temperature -30℃ to +70℃
Working Humidity 5% to 95%
IP Class IP65
Drop test 6 sides can withstand the impact of 1.2 meters drop to the concrete floor
ESD ±15kV Air Discharge, ±8kV Contact Discharge
Certificate CCC,CE,ROHS,FCC
NFC

Support agreement:ISO14443A/B, ISO15693

reading distance: 0~5cm

RFID

( ultra high frequency )

 Protocol standard: EPC G2/ISO 18000-6C;
Working frequency: China (920-925MHz);
North America (902-928MHz);
Euro frequency (865-867MHz);
Antenna parameters: 4dBi four-arm spiral;
Power: working voltage 3.6V-5V,RF output 5dBm to 33dBm(1W), 1dBm adjustable;
Standby power consumption is about 0.25W, maximum 7.5W (typical 7W);
Card reading distance: indoor > 18m;Outdoor environment >8m;
Group read rate > 200 tags per second;
code scanning,Support code system CM60 or N6703,Support code system:EAN13, EAN8, UPCA, UPCE, Code 128, Code 39, Codabar, UCC/EAN128, RSS,ITF, ITF14, ITF6, ISSN, ISBN, Standard 25, Matrix 25,Industrial 25,Plessey, MSI Plessey, Code 11, Code 93, PDF417, QR Code, DataMatrix, AZTEC, Hanxin Code, Maxicode, Micro QR,Micro PDF417, Composite
Explosion-proof(optional) Sign of explosion-proof:Ex ib IIC T4 GB,Certificate number:CCRI 19.2161
Optional Accessories

DC60RT

Single charging base

 input: 9V 2A

Products Details

Android 8.1 Quad-Core 2.0GHz 2GB or 4GB RAM 16GB + 64GB ROM IP65

Android 8.1 Quad-Core 2.0GHz 2GB or 4GB RAM 16GB + 64GB ROM IP65

Android 8.1 Quad-Core 2.0GHz 2GB or 4GB RAM 16GB + 64GB ROM IP65

Android 8.1 Quad-Core 2.0GHz 2GB or 4GB RAM 16GB + 64GB ROM IP65

Speedata Services

Android 8.1 Quad-Core 2.0GHz 2GB or 4GB RAM 16GB + 64GB ROM IP65

Android 8.1 Quad-Core 2.0GHz 2GB or 4GB RAM 16GB + 64GB ROM IP65

Android 8.1 Quad-Core 2.0GHz 2GB or 4GB RAM 16GB + 64GB ROM IP65

As a listed company from china manufacturer, we support you:

Completely Free SDK and technical support for you.

ODM/OEM customization services according to your needs.

13 months warranty for your devices and other parts. and 6 months for the batteries. Exend warranty,it'll cost 0.5% for each per year.

Free maintenance of the devices and part of accessories replacement in the warranty .if out of the warranty, you'll have to pay the basic cost for them.

Android 8.1 Quad-Core 2.0GHz 2GB or 4GB RAM 16GB + 64GB ROM IP65

FAQ

Question 1: What's your MOQ?

The MOQ of barcode scanner handheld PDA is 1 piece.

Question 2: How long is the delivery time?

The delivery time of barcode scanner goods is different from quantities:
If 1~100 pcs, It's about 5--10 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.

Question 3: Would you like to supply 1 sample for testing?


Yes, Of course. We can provide 1 sample Terminal PDA for your testing.

Question 4: What's the total price for 1 sample?


As a manufacturer of barcode scanner terminal PDA,the more you buy, the cheaper it'll be.
The sample price is a little bit higher than the common wholesale price excluding the freight fee.

Question 5: Are you a manufacturer of Handheld PDA?

Yes, we are a R&D orientation China Listed Company, mainly producing industrial PDA Terminal Hardware and as a software solutions supplier with over 8 years' OEM/ODM experience. We are also cooperating with Foxconn Factory.

Question 6: What kind of services do you support ?


We provide you Free SDK and Technical Support for your Barcode Scanner.
We also provide ODM/OEM Customization Services based to your demands.
We support 13 months Warranty for all the device and 6 months for the batteries. Exend warranty, it costs 10% at the first year, and 15% for the second year.

Question 7: What's for payment term and delivery term ?


It's generally 30%-100% TT in advance for all orders. Meanwhile, Paypal or West Union is acceptable.
FOB Shenzhen as Trade Term.

Question 8: Who are your customers?


Our products have been sold to worldwide,especially market in South/North America, Europe, Asia, Africa Mid-east, etc.
The market share is increasing quickly every year and we get more and more positive feedbacks from our customers.
