10 Ton VD LRF Steel Making For Molten Steel Refining
10 Ton VD LRF Steel Making For Molten Steel Refining
Specifications
Brand Name :
Yushun
Model Number :
Customized
Certification :
ISO 9001
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
Negotiated
Delivery Time :
30 days
Packaging Details :
normal package naked or pack it according to customers' request
Name :
VD Ladle Refining Furnace
Power :
1000KW
Voltage :
220-660V
Frequency :
100-200khz
Usage :
Induction smelting furnace
Condition :
New
Material :
Aluminum shell/steel shell/Copper
Capacity :
10-50ton
Description

VD Ladle Refining Furnace

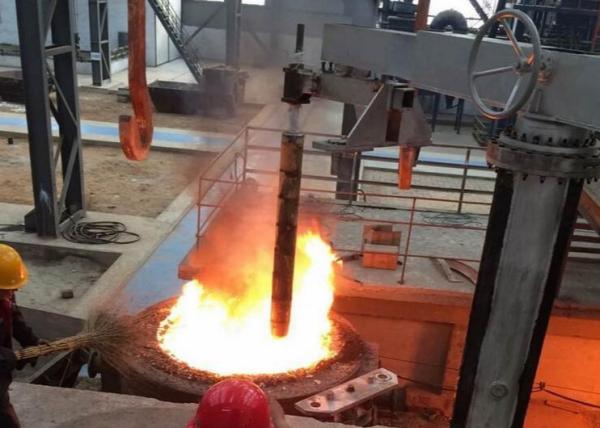

10 Ton VD LRF Steel Making For Molten Steel Refining

Ladle refining furnace is used for molten steel refining. The structure type is divided into heating bridge, fourth column, transverse arm rotation and large package rotary table for users to choose.

The equipment of ladle refining furnace is composed of ladle, ladle truck and towing cable, furnace cover, electrode lifting mechanism, short net, water cooling system, hydraulic system, argon system, furnace transformer, high voltage cabinet, low voltage electric and automatic control system, etc. The tonnage of furnace is from 10 tons to 300 tons.

LF Performance

Item Unit Parameters
Rated refining capacity T 10-12
Rated transformer power KVA 2000
Tap to tap time min 45
Molten steel heating rate min ≧3
Power consumption ℃/min ≦0.6-0.7
Electrode consumption KWh/t*℃ ≦12-15g

Component Parameters

Transformer
Rated Power KVA 2000 Overload 20%
Primary Voltage KV 20
Secondary Voltage V 160-100 5 speed
Ladle
Max diameter of ladle mm Φ1920
Spare height mm 500
Large current system
Impedance unbalance ％ ≦4
Theoretical value resistance
Electrode system
Electrode diameter mm Φ200 Graphite diameter
Electrode distribution mm Φ460
Lifting speed M/min Up/down:4/3
Electrode lifting height mm 1600
Ladle car
Weight of load T 50
Drive mode motor Frequency control
Speed m 2-16
Water cooling system
Flow rate M3/h 80
Inlet pressure Mpa 0.4-0.6
Hydraulic station
Rated pressure 17.5

10 Ton VD LRF Steel Making For Molten Steel Refining

Application

Ladle refining furnace belongs to the secondary refining equipment, which typically to be used

follows the primary melting furnace. Its main function is to remove sulfur, impurity from molten steel

and adjust chemical components, thereby, improve quality of molten steel. LF is mainly used in

high-quality carbon steel, stainless steel, manganess steel and other metal smelting.


10 Ton VD LRF Steel Making For Molten Steel Refining

10 Ton VD LRF Steel Making For Molten Steel Refining

10 Ton VD LRF Steel Making For Molten Steel Refining

10 Ton VD LRF Steel Making For Molten Steel Refining

10 Ton VD LRF Steel Making For Molten Steel Refining

10 Ton VD LRF Steel Making For Molten Steel Refining

10 Ton VD LRF Steel Making For Molten Steel Refining

10 Ton VD LRF Steel Making For Molten Steel Refining

Selling Units: Single item

Single package size: 150*100*170cm

Single gross weight: 100,000kg

Package Type: Safety Seaworthy Package

Lead Time:

Quantity (Tons) 1-100 >100
Est. Time(Days) 60 To be negotiated
