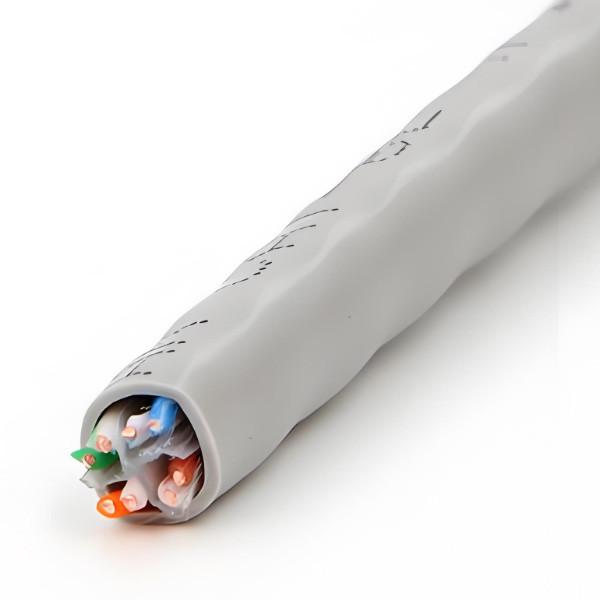

CMR PVC 23AWG Outdoor UTP Cable CAT6 Gray High Speed Network Lan Cable 1000FT
CMR PVC 23AWG Outdoor UTP Cable CAT6 Gray High Speed Network Lan Cable 1000FT
CMR PVC 23AWG Outdoor UTP Cable CAT6 Gray High Speed Network Lan Cable 1000FT
CMR PVC 23AWG Outdoor UTP Cable CAT6 Gray High Speed Network Lan Cable 1000FT
CMR PVC 23AWG Outdoor UTP Cable CAT6 Gray High Speed Network Lan Cable 1000FT
CMR PVC 23AWG Outdoor UTP Cable CAT6 Gray High Speed Network Lan Cable 1000FT
Specifications
Place of Origin :
shenzhen
Brand Name :
ITI-LINK
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Model Number :
ITI-Ct6u-005
MOQ :
1000pcs
Packaging Details :
Color Box+Packing Box 36*36*21cm
Delivery Time :
15-45Days
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Color :
GRAY
Data Transfer Rate :
1000 Mbps
Length :
1000 ft
Jacket Material :
PVC
Frequency :
100 MHz
Application :
100Base-TX/100Base-T4/100VG-AnyLan/ATM
Cable Type :
UTP
Conductor Size :
23 AWG
Certifications :
UL, ETL, RCM, CPR, CSA
Conductor aMaterial :
Bare Copper
Description

Cat6 UTP Cable 23AWG CMR PVC High Speed Network Lan Cable 1000FT

Quick Detail:

· Bare solid copper conductor

· 250MHz

· Jacket PVC, 60P, -20~75℃

· Rate temperature:60℃ 75℃

· InstallationTemperature: -30℃-+50℃

· CompliestoANSI/TIA-568-B.2&IS0/EC11801

· CE, RoHS, TUV, UL compliant, CPR, ETL, RCM, ISO9001

Description:

1. This Cat6 CMR Cable Provide 250MHz bandwidth within a distance of 90 meters. The typical application rate is 1000Mbps.

2. The Cat6 CMR cables have certain flame retardant properties and are usually used in vertically laid communication trunk line systems, such as vertical wiring channels in high-rise buildings.

3. This Category 6 cable sheath is made of CMR grade flame-retardant material, which will automatically extinguish when burned, producing a small amount of smoke and less toxic gases, suitable for places that require higher fire safety standards.

4. The structure of CMR flame-retardant Category 6 network cables includes insulation outer sheath, anti tear rope, fireproof filling layer, cross insulation filling layer, thermal insulation sleeve, insulation inner sheath, and core. These structures endow the network cable with excellent insulation and fire resistance, extending its service life and ensuring the safety and stability of signal transmission.

Specifications:

Product Description: Cat 6 UTP Cable 4 X 2 X 23AWG (CMR)
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19-24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 23 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 1.01 ± 0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.22 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ±15 Ω

2p: white + 2 orange stripes &

orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=18.5 mm (26%) tensile strength before aging ≥12 MPa
2p: S=15.5 mm (21%) elongation after aging ≥ 150 %
3p: S=20.5 mm (30%) tensile strength after aging ≥10.5 MPa
4p: S=14.0 mm (19%)

jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa

Inner Assemble

 Lay S=90±5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
Filler cross member 4.8X4.8X0.5mmT Packing
OD / Inner Box NA
Filler Material Ripcord Master Carton NA
Construction 300D

Outside Shield

 Shield /
Construction /
Material /
Coverage /

Jacket

 Material PVC, Rated 60 or 75℃
Hardness 81 ±3
OD 6.0 ± 0.2
Average THK 0.55~0.60

Color

 GRAY

Marking Color

BLACK
Marking

according to the customer's

requirements

Electrical Properties
Conductor Resistance at 20°C

UL 444 & CSA

C22.2 No. 214

 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

No breakdown

Insulation Resistance at 20°C after 2min of electrification under a DC voltage

between 100 & 500V

 >1500 MΩ / 100m
Mutual capacitance 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m
Characteristic impedance at 100MHz 100 ± 15 Ω
Spark Test 2000 ± 250VOC

Transmission Properties
CAT 6 UTP CABLE

No.

Frequency

Attenuation (Max)

 Propagation Delay (MAX) Propagation Delay Skew (MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 3.78 552 45 23.01 66.27 63.27 55.96 52.96
2 8 5.32 546.73 45 24.52 61.75 58.75 49.94 46.94
3 10 5.95 545.38 45 25 60.3 57.3 48 45
4 16 7.55 543 45 25 57.24 54.24 43.92 40.92
5 20 8.47 542.05 45 25 55.78 52.78 41.98 38.98
6 25 9.51 541.2 45 24.32 54.33 51.33 40.04 37.04
7 31.25 10.67 540.44 45 23.64 52.88 49.88 38.1 35.1
8 50 13.66 539.09 45 22.21 49.82 46.82 34.02 31.02
9 62.5 15.38 538.55 45 21.54 48.36 45.36 32.08 29.08
10 100 19.8 537.6 45 20.11 45.3 42.3 28 25
11 125 22.36 537.22 45 19.43 43.85 40.85 26.06 23.06
12 200 28.98 536.55 45 18 40.78 37.78 21.98 18.98
13 250 32.85 536.28 45 17.32 39.33 36.33 20.04 17.04
14
15
16
17
18
Remarks: ＊ are the reference values.

Notices:

Please follow the following steps to check and install the product to ensure it is correct, stable, and meets network connectivity requirements:

1. Open box inspection: After opening the packaging, please carefully inspect the product to confirm that there is no damage, missing parts, or non-compliance with specifications.


2. Wiring specifications: During construction, please strictly follow the wiring standards, avoid bundling or excessive bending of network cables, ensure that the lines are unobstructed, and guarantee optimal performance.


3. RJ45 connector production: When making Ethernet RJ45 connectors, please follow the T568B or T568A standards to ensure the correct wiring sequence and avoid unstable network connections or line disconnections.


4. Network cable usage suggestion: It is recommended to use a single network cable and ensure that its length does not exceed 100 meters to maintain optimal transmission performance.


By following the above steps, you will be able to install the product correctly and ensure its stable operation to meet your network connectivity needs.

Applications:

1. ITI Category 6 unshielded CMR flame-retardant cable is a comprehensive cabling cable with good flame-retardant performance and stable transmission performance. Widely used in places with high fire safety requirements. Such as office buildings, schools, office spaces, laboratories, computer rooms, large shopping malls, etc.

2. CMR flame-retardant Category 6 network cables are designed specifically for high demand network environments, integrating high performance and security. Adopting advanced flame-retardant materials that comply with CMR (Vertical Combustion Test) standards, it can effectively prevent the spread of fire even under extreme conditions, providing additional security for data centers, offices, residential buildings, and other places. This Ethernet cable supports Gigabit Ethernet transmission and complies with the Cat6 standard, making it easy to meet the needs of big data, high-definition video streaming, and complex network applications, ensuring high-speed and stable data transmission. Its unique cross shaped skeleton design effectively reduces signal interference, improves transmission efficiency and accuracy. Whether building high-speed enterprise networks or optimizing home network experiences, CMR flame-retardant Category 6 Ethernet cables are the ideal choice to safeguard your digital life.

CMR PVC 23AWG Outdoor UTP Cable CAT6 Gray High Speed Network Lan Cable 1000FT

FAQ

UL/CE/RoHS/ETL/CPR Certificate Lan cable Cat6 UTP 23AWG CMR PVC Bare Solid Copper

Q1. Can I order samples of Lan cables?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: 3-5 days for Sample preparing ,15-45 days for mass production.

Q3. Do you have a minimum order quantity limit for network cable orders?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea, which usually takes about 7 days to arrive.

Q5. How to proceed an order for network cable?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6.Is it OK to print my logo on network cable product?

A: Yes. Please inform us formally before our production.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 10 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, for individual defective products, we will remedy them as soon as possible and send them to you, or we can discuss solutions based on the actual situation to achieve 100% satisfaction for you.
