250MHz UTP CAT6 Cable Gray PVC 23AWG POE Power Supply 1000FT
250MHz UTP CAT6 Cable Gray PVC 23AWG POE Power Supply 1000FT
250MHz UTP CAT6 Cable Gray PVC 23AWG POE Power Supply 1000FT
250MHz UTP CAT6 Cable Gray PVC 23AWG POE Power Supply 1000FT
250MHz UTP CAT6 Cable Gray PVC 23AWG POE Power Supply 1000FT
250MHz UTP CAT6 Cable Gray PVC 23AWG POE Power Supply 1000FT
Specifications
Place of Origin :
shenzhen
Brand Name :
ITI-LINK
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Model Number :
ITI-CT6U-001
MOQ :
1000pcs
Packaging Details :
Color Box+Packing Box 40X40X22cm
Delivery Time :
15-45Days
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Color :
GRAY
Data Transfer Rate :
1000 Mbps
Length :
1000 ft
Jacket Material :
PVC
Frequency :
250 MHz
Application :
100Base-TX/100Base-T4/100VG-AnyLan/ATM/1000Base-
Cable Type :
U/UTP
Conductor Size :
23 AWG
Certifications :
UL, ETL, RCM, CPR, CSA
Conductor aMaterial :
Bare Copper
Description

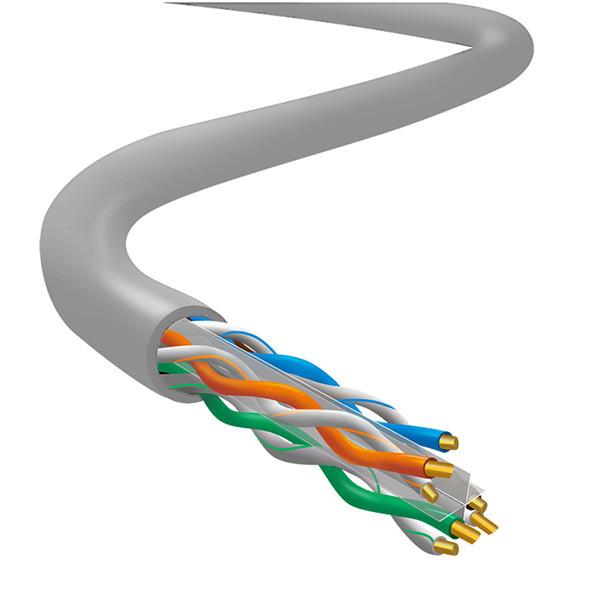

Cat6 UTP Cable 250MHz Gray PVC 23AWG POE Power Supply 1000FT

Quick Detail:

· Bare solid copper conductor

· 250MHz

· Jacket PVC, 60P, -20~75℃

. POE power supply

· Rate temperature:60℃ 75℃

· InstallationTemperature: -30℃-+50℃

· CompliestoANSI/TIA-568-B.2&IS0/EC11801

· CE, RoHS, TUV, UL compliant, CPR, ETL, RCM, ISO9001

Description:

We are proud to introduce this high-performance CAT6 UTP PoE Ethernet cable, designed specifically for modern network applications to meet your dual needs for high-speed data transmission and convenient power supply. Adopting the advanced CAT6 standard, this Ethernet cable not only supports a bandwidth of up to 1Gbps (gigabits per second), but also is perfectly compatible with 10/100/1000Mbps Ethernet, ensuring stable, fast, and efficient network connections.

[Core Features]

1. High speed transmission: Complies with ANSI/TIA-568-C-2 standards, supports transmission frequencies up to 250MHz, ensuring high-speed and lossless transmission of data over long distances.


2. PoE power supply technology: integrates PoE function, allowing data and power to be provided to network devices (such as IP cameras, wireless access points, VoIP phones, etc.) simultaneously through the same Ethernet cable, simplifying wiring and reducing costs.


3. High quality materials: pure copper conductor and high quality PVC sheath are used to ensure the purity and stability of signal transmission, while providing excellent wear resistance, anti-aging performance and extending service life.


4. Wide compatibility: Perfectly compatible with various Ethernet devices, it can easily handle home networks, office environments, and complex industrial network deployments.


5. Flexible and durable: The Cat6 network cable design is flexible, easy to bend and install, suitable for various complex wiring scenarios. At the same time, the outer material enhances the tensile strength, ensuring reliability under long-term use.

Specifications:

Product Description: Cat 6 UTP POE CABLE 4 X 2 X 23AWG
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19-24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 23 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 1.01 ± 0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.22 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ±15 Ω
2p: white + 2 orange stripes & orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=18.5 mm (26%) tensile strength before aging ≥12 MPa
2p: S=15.5 mm (21%) elongation after aging ≥ 150 %
3p: S=20.5 mm (30%) tensile strength after aging ≥10.5 MPa
4p: S=14.0 mm (19%)

jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa

Inner Assemble

 Lay S=90±5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
Filler cross member 4.8X4.8X0.5mmT Packing
OD / Inner Box NA
Filler Material Ripcord Master Carton NA
Construction 300D

Outside Shield

 Shield /
Construction /
Material /
Coverage /

Jacket

 Material PVC, 50P, -20~75℃
Hardness 81 ±3
OD 6.0 ± 0.15
Average THK 0.55~0.60

Color

 GRAY
Marking Color black
Marking

according to the customer's

requirements

Electrical Properties
Conductor Resistance at 20°C NF EN 50289-1-2 / IEC 60189-1 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair NF EN 50289-1-2/ IEC 60708 ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

NF EN 50289-1-3 / IEC 61196-1-105

No breakdown

Insulation Resistance at 20°C after 2min of electrification under a DC voltage

between 100 & 500V

 NF EN 50289-1-4 / IEC 60885-1 >1500 MΩ / 100m
Mutual capacitance NF EN 50289-1-5 /IEC 60189-1 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz NF EN 50289-1-5 / IEC 60189-1 ≤ 160 pF / 100m
Characteristic impedance at 100MHz NF EN 50289-1-11/ IEC 61156-1 100 ± 15 Ω
Spark Test UL444 2000 ± 250VOC

Transmission Properties
CAT 6 ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013

No.

Frequency

Attenuation (Max)

 Propagation Delay (MAX) Propagation Delay Skew (MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 3.78 552 45 23.01 66.27 63.27 55.96 52.96
2 8 5.32 546.73 45 24.52 61.75 58.75 49.94 46.94
3 10 5.95 545.38 45 25 60.3 57.3 48 45
4 16 7.55 543 45 25 57.24 54.24 43.92 40.92
5 20 8.47 542.05 45 25 55.78 52.78 41.98 38.98
6 25 9.51 541.2 45 24.32 54.33 51.33 40.04 37.04
7 31.25 10.67 540.44 45 23.64 52.88 49.88 38.1 35.1
8 50 13.66 539.09 45 22.21 49.82 46.82 34.02 31.02
9 62.5 15.38 538.55 45 21.54 48.36 45.36 32.08 29.08
10 100 19.8 537.6 45 20.11 45.3 42.3 28 25
11 125 22.36 537.22 45 19.43 43.85 40.85 26.06 23.06
12 200 28.98 536.55 45 18 40.78 37.78 21.98 18.98
13 250 32.85 536.28 45 17.32 39.33 36.33 20.04 17.04
14
15
16
17
18
Remarks: ＊ are the reference values.

Notices:

1. Open the packaging, check the products carefully, and take them gently.

2. Please strictly follow the wiring standards during construction, and do not tie or excessively bend the network cables.

3. When making RJ45 network cable connectors, please follow the T568B or T568A standards to ensure the correct wire sequence and avoid problems such as disconnected lines or unstable network connections.

4.It is best to use a single network cable at a distance of no more than 100 meters to ensure optimal transmission performance.

5. Ensure that the shielded network cable is grounded during installation.

Applications:

Tailored for your PoEapplication scenario, we have launched this high-performance Category 6 (CAT6) Ethernet cable. This Ethernet cable not only meets the modern network's demand for high-speed data transmission, but also perfectly integrates PoE power supply technology, providing a one-stop solution for your network equipment.

1. Smart Home: Providing stable power and data transmission for smart security devices, creating a safe and intelligent living environment.


2. Enterprise network: Simplify office wiring, improve management efficiency, reduce operation and maintenance costs, and inject momentum into enterprise development.


3. Retail and commercial venues: support high-definition monitoring and wireless coverage, enhance customer experience, and improve business operation efficiency.


4. Education and medical institutions: achieve seamless connection between multimedia classrooms and remote medical equipment, and promote the intelligent development of education and medical services.

250MHz UTP CAT6 Cable Gray PVC 23AWG POE Power Supply 1000FT

FAQ

UL/CE/RoHS/ETL/CPR Certificate Lan cable Cat6 U/UTP 23AWG Extend To 550MHZ PVC Bare Solid Copper

Q1. Can I order samples of Lan cables?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: 3-5 days for Sample preparing ,8-10 working days for mass production.

Q3. Do you have a minimum order quantity limit for network cable orders?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea, which usually takes about 7 days to arrive.

Q5. How to proceed an order for network cable?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6.Is it OK to print my logo on network cable product?

A: Yes. Please inform us formally before our production.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 10 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, for individual defective products, we will remedy them as soon as possible and send them to you, or we can discuss solutions based on the actual situation to achieve 100% satisfaction for you.
