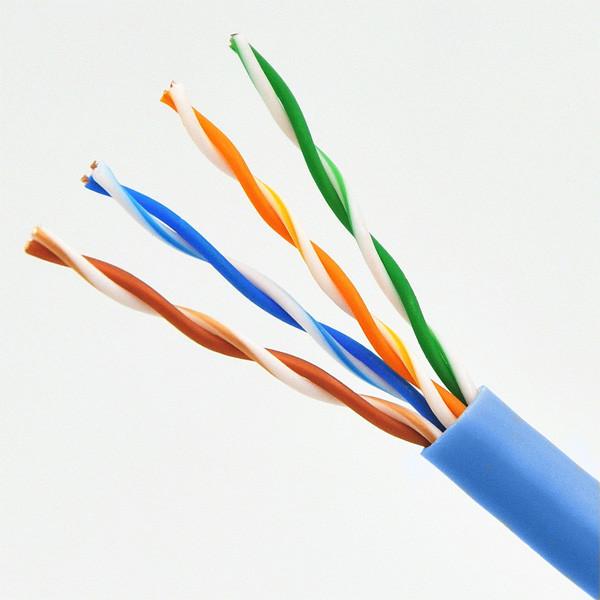

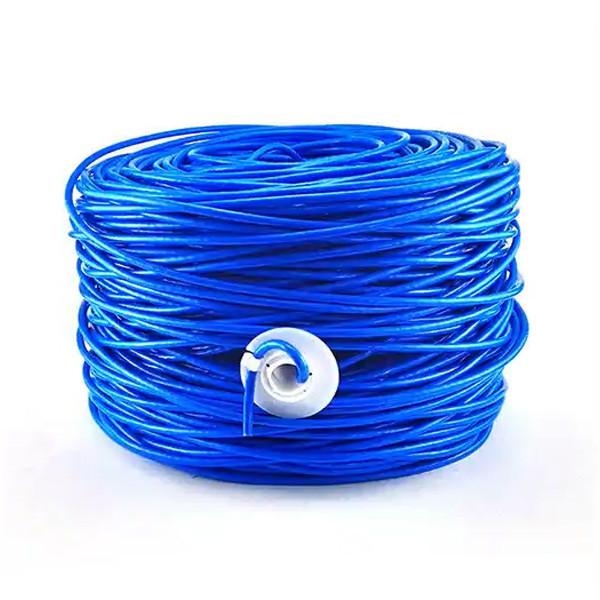

500ft CAT 6 Ethernet Cable 250MHz 23AWG 4 Pairs Blue Network Cable
500ft CAT 6 Ethernet Cable 250MHz 23AWG 4 Pairs Blue Network Cable
500ft CAT 6 Ethernet Cable 250MHz 23AWG 4 Pairs Blue Network Cable
500ft CAT 6 Ethernet Cable 250MHz 23AWG 4 Pairs Blue Network Cable
500ft CAT 6 Ethernet Cable 250MHz 23AWG 4 Pairs Blue Network Cable
500ft CAT 6 Ethernet Cable 250MHz 23AWG 4 Pairs Blue Network Cable
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT6U-0017
Place of Origin :
shenzhen
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
MOQ :
1000pcs
Packaging Details :
40X40X22CM
Delivery Time :
15-45Days
Supply Ability :
2000pcs/day
Payment Terms :
T/T
Compatibility :
Ethernet
Certifications :
UL, CSA, ETL, CPR, TUV, RCM, CE, RoHS
Color :
Blue
Bandwidth :
250MHz
Conductor Size :
23AWG
Transmission Speed :
1Gbps
Length :
1000ft
Category :
CAT6
Description

CAT6 Ethernet Cable 250MHz 23AWG 4Pairs Blue ITI-LINK Network Cable 500ft

Product Description:

1. One of the key features of the UTP CAT6 CABLE is its certifications. This cable has been certified by UL, CSA, ETL, CPR, TUV, RCM, CE, and RoHS, ensuring that it meets the highest standards of quality and safety. These certifications mean that you can trust this cable to provide reliable and consistent performance, even in demanding environments.

2. The UTP CAT6 CABLE is part of the CAT6 family of cables, which are designed for use in high-speed networks. These cables are compatible with all CAT6 equipment, making them an ideal choice for network administrators who need to upgrade their infrastructure. Whether you're building a new network or upgrading an existing one, the UTP CAT6 CABLE is a great choice.

3. One of the key advantages of the UTP CAT6 CABLE is its conductor size. This cable features 23AWG conductors, which are larger than those found in many other CAT6 cables. This means that the UTP CAT6 CABLE can provide better signal quality and lower attenuation, resulting in faster and more reliable data transmission.

4. In summary, the UTP CAT6 CABLE is a high-quality CAT6 NETWORK CABLE that is ideal for high-speed networks. With a bandwidth of 250MHz, certifications from UL, CSA, ETL, CPR, TUV, RCM, CE, and RoHS, and a conductor size of 23AWG, this CAT 6 CABLE is capable of transmitting data at speeds of up to 1Gbps, making it perfect for high-speed internet connections, video streaming, and other bandwidth-intensive applications.

5. We conduct strict quality inspections on every product to ensure a 99.9% pass rate.

Technical Parameters:

Compatibility Ethernet
Category CAT6 LAN CABLE
Shielding Unshielded
Certifications UL, CSA, ETL, CPR, TUV, RCM, CE, RoHS
Transmission Speed 1Gbps
Bandwidth 250MHz
Jacket Material PVC
Length 500ft
Color Blue
Conductor Size 23AWG

Specifications:

Product Description: CAT6 UTP 23AWG Solid Blue PVC Cable 500ft
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 23 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 1.14 ± 0.05 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.29 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω

2p: white + 2 orange stripes &

orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥16 MPa
2p: S=17.5 mm (24%)) elongation after aging ≥ 150 %
3p: S=22.0 mm (32%) tensile strength after aging ≥10.5 MPa
4p: S=15.5 mm (21%)

jacket

 elongation before aging ≥350%
OD / tensile strength before aging ≥9.7MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥263%
Direction according to the drawing tensile strength after aging ≥7.3MPa
Filler / Packing
OD / Inner Box NA
Filler Material Ripcord Master Carton NA
Construction 300D

Outside Shield

 Shield /
Construction /
Material /
Coverage /

Jacket

 Material Inner Jacket: PVC + Outside Jacket: PE
Hardness /
OD 5.8 / 7.2
Average THK /

Color

 blue

Marking Color

 black

Marking

 according to the customer's requirements

Electrical Properties
Conductor Resistance at 20°C UL 444 & CSA C22.2 No. 214 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
Mutual capacitance 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m
Characteristic impedance at 100MHz 100 ± 15 Ω
Spark Test 2000 ± 250VOC

Transmission Properties
CAT 6 UTP Cable

No.

Frequency

Attenuation (Max)

 Propagation Delay (MAX) Propagation Delay Skew (MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 3.78 552 45 23.01 66.27 63.27 55.96 52.96
2 8 5.32 546.73 45 24.52 61.75 58.75 49.94 46.94
3 10 5.95 545.38 45 25 60.3 57.3 48 45
4 16 7.55 543 45 25 57.24 54.24 43.92 40.92
5 20 8.47 542.05 45 25 55.78 52.78 41.98 38.98
6 25 9.51 541.2 45 24.32 54.33 51.33 40.04 37.04
7 31.25 10.67 540.44 45 23.64 52.88 49.88 38.1 35.1
8 50 13.66 539.09 45 22.21 49.82 46.82 34.02 31.02
9 62.5 15.38 538.55 45 21.54 48.36 45.36 32.08 29.08
10 100 19.8 537.6 45 20.11 45.3 42.3 28 25
11 125 22.36 537.22 45 19.43 43.85 40.85 26.06 23.06
12 200 28.98 536.55 45 18 40.78 37.78 21.98 18.98
13 250 32.85 536.28 45 17.32 39.33 36.33 20.04 17.04
14
15
16
17
18
Remarks: ＊ are the reference values.

Applications:

The UTP CAT6 CABLE is a high-performance network cable that supports transmission speeds of up to 1Gbps. With its unshielded shielding, this cable is ideal for use in areas with low electromagnetic interference. The conductor size of this cable is 23AWG and is made of PVC jacket material.

The CAT6 UTP cable is perfect for a variety of applications and scenarios, such as:

  • Home and office network installations
  • Data center installations
  • Video conferencing and streaming applications
  • Security and surveillance systems
  • Audio and video systems

With the ITI-CT6U-017 CAT6 CABLE, you can be confident in its ability to provide high-speed and reliable data transmission. Its certification ensures that it meets industry standards for safety and performance.

500ft CAT 6 Ethernet Cable 250MHz 23AWG 4 Pairs Blue Network Cable

FAQ:

Q1: What is the brand name of this product?

A1: The brand name of this product is ITI-LINK.

Q2: What is the model number of this product?

A2: The model number of this product is ITI-CT6U-0017.

Q3: What is the place of origin of this product?

A3: The place of origin of this product is SHENZHEN.

Q4: What certifications does this product have?

A4: This product has UL, ETL, CSA, RCM, TUV, CPR, CE, and RoHS certifications.

Q5: What is the minimum order quantity for this product?

A5: The minimum order quantity for this product is 1000PCS.

Q6: What are the packaging details of this product?

A6: The packaging details of this product are 40X40X22CM.

Q7: What is the delivery time for this product?

A7: The delivery time for this product is 15DAYS.

Q8: What is the supply ability of this product?

A8: The supply ability of this product is 1500PCS/DAY.
