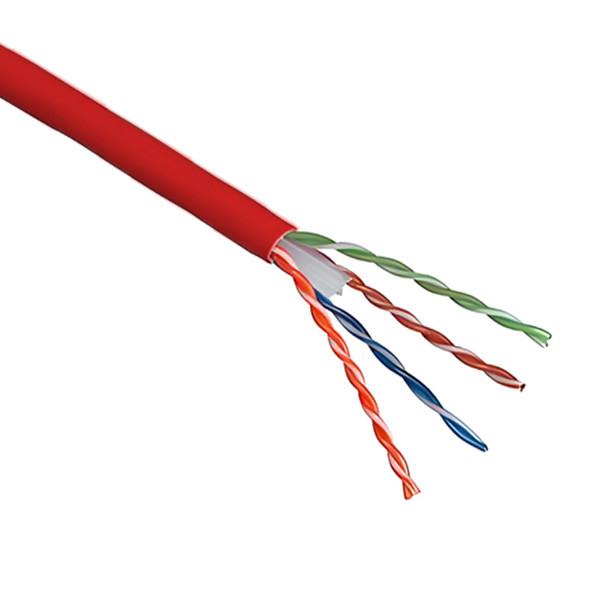

250MHz Red UTP CAT6 Cable 23AWG 1000FT Ethernet Network Cable
250MHz Red UTP CAT6 Cable 23AWG 1000FT Ethernet Network Cable
250MHz Red UTP CAT6 Cable 23AWG 1000FT Ethernet Network Cable
250MHz Red UTP CAT6 Cable 23AWG 1000FT Ethernet Network Cable
250MHz Red UTP CAT6 Cable 23AWG 1000FT Ethernet Network Cable
250MHz Red UTP CAT6 Cable 23AWG 1000FT Ethernet Network Cable
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT6U-0020
Place of Origin :
shenzhen
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
MOQ :
1000pcs
Packaging Details :
40X40X22CM
Delivery Time :
15-45Days
Supply Ability :
2000pcs/day
Payment Terms :
T/T
Length :
1000ft
Bandwidth :
250MHz
Shielding :
Unshielded
Compatibility :
Ethernet
Color :
Blue
Certifications :
UL, CSA, ETL, CPR, TUV, RCM, CE, RoHS
Transmission Speed :
1Gbps
Category :
CAT6
Description

Cat6 UTP Cable 250MHz Red 23AWG Ethernet Network Cable 1000ft

Product Description:

1. With a bandwidth capacity of up to 250MHz, this CAT6 cable is capable of transmitting large amounts of data at high speeds, making it perfect for use in a variety of settings. Whether you're using it to connect to a local area network or to set up a home office, this cable will provide you with a reliable, high-speed connection that won't let you down.

2. The UTP CAT6 CABLE is designed to provide fast and efficient transmission speeds of up to 1Gbps, making it ideal for those who require high-speed internet access. Whether you're streaming videos, downloading large files, or simply browsing the web, this cable will provide you with a reliable, high-speed connection that you can count on.

3. This CAT6 cable features a conductor size of 23AWG, which ensures that it can handle high-speed data transmission without any loss of quality. This makes it perfect for use in demanding settings such as data centers, where reliable and efficient data transmission is critical.

4. The UTP CAT6 CABLE is fully compatible with Ethernet, making it easy to integrate into your existing network setup. Whether you're setting up a new network or upgrading an existing one, this cable will provide you with the high-speed connectivity that you need.

5. In summary, UTP CAT6 cable is a reliable high-speed Ethernet cable that is highly suitable for use in various environments. With its unshielded design, 250MHz bandwidth capacity, 1Gbps transmission speed, 23AWG wire size, and Ethernet compatibility, it is the perfect choice for office workers who need fast and efficient data transmission without lagging.

Technical Parameters:

Certifications UL, CSA, ETL, CPR, TUV, RCM, CE, RoHS
Color Red
Compatibility Ethernet
Bandwidth 250MHz
Jacket Material PVC
Length 1000ft
Category CAT6
Shielding Unshielded
Conductor Size 23AWG
Transmission Speed 1Gbps

250MHz Red UTP CAT6 Cable 23AWG 1000FT Ethernet Network Cable

Structural description:

1 --------- Solid Copper

2 --------- HDPE

3 --------- Seperator

4 --------- Jacket PVC

5 --------- Ripcord

Specifications:

Product Description: CAT6 UTP 23AWG Solid Copper Red Cable
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19-24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 23 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 0.95 ± 0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.22 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ±15 Ω

2p: white + 2 orange stripes &

orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=18.5 mm (26%) tensile strength before aging ≥12 MPa
2p: S=15.5 mm (21%) elongation after aging ≥ 150 %
3p: S=20.5 mm (30%) tensile strength after aging ≥10.5 MPa
4p: S=14.0 mm (19%)

jacket

 elongation before aging ≥350%
OD / tensile strength before aging ≥9.7MPa

Inner Assemble

 Lay S=90±5 mm elongation after aging ≥263%
Direction according to the drawing tensile strength after aging ≥7.3MPa
Filler cross member 4.5X4.5X0.4mmT Packing
OD / Inner Box NA

Filler

 Material Ripcord Master Carton NA
Construction 300D

Fill the glue gel

Outside Shield

 Shield /
Construction /
Material /
Coverage /

Jacket

 Material LDPE
Hardness 81 ±3
OD 6.1 ± 0.2
Average THK 0.55~0.60

Color

 RED

Marking Color

 BLACK
Marking

according to the customer's

requirements

Electrical Properties
Conductor Resistance at 20°C

UL 444 & CSA C22.2

No. 214

 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

No breakdown

Insulation Resistance at 20°C after 2min of electrification under a DC voltage

between 100 & 500V

 >1500 MΩ / 100m
Mutual capacitance 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m
Characteristic impedance at 100MHz 100 ± 15 Ω
Spark Test 2000 ± 250VOC

Transmission Properties
CAT 6 UTP OUTDOOR CABLE

No.

Frequency

Attenuation (Max)

 Propagation Delay (MAX) Propagation Delay Skew (MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 3.78 552 45 23.01 66.27 63.27 55.96 52.96
2 8 5.32 546.73 45 24.52 61.75 58.75 49.94 46.94
3 10 5.95 545.38 45 25 60.3 57.3 48 45
4 16 7.55 543 45 25 57.24 54.24 43.92 40.92
5 20 8.47 542.05 45 25 55.78 52.78 41.98 38.98
6 25 9.51 541.2 45 24.32 54.33 51.33 40.04 37.04
7 31.25 10.67 540.44 45 23.64 52.88 49.88 38.1 35.1
8 50 13.66 539.09 45 22.21 49.82 46.82 34.02 31.02
9 62.5 15.38 538.55 45 21.54 48.36 45.36 32.08 29.08
10 100 19.8 537.6 45 20.11 45.3 42.3 28 25
11 125 22.36 537.22 45 19.43 43.85 40.85 26.06 23.06
12 200 28.98 536.55 45 18 40.78 37.78 21.98 18.98
13 250 32.85 536.28 45 17.32 39.33 36.33 20.04 17.04
14
15
16
17
18
Remarks: ＊ are the reference values.

Applications:

1. The ITI-LINK ITI-CT6U-0020 CAT6 Network Cable is a high-quality Ethernet cable that is ideal for use in a wide range of applications. This cable is designed to provide reliable and fast data transfer speeds, making it perfect for use in both residential and commercial environments.

2. Whether you are looking to set up a home network, connect your office computers, or install a large-scale network infrastructure, the ITI-CT6U-0020 CAT6 LAN Cable is the perfect choice. This cable is made from high-quality materials and is built to last, ensuring that you get the best possible performance and reliability from your network.

3. With a bandwidth of 250MHz, this CAT6 cable is capable of handling even the most demanding network applications, including streaming video, online gaming, and large file transfers. The unshielded design of this cable makes it easy to install and use, while the PVC jacket provides excellent protection against environmental factors such as moisture and heat.

4. The ITI-CT6U-0020 CAT6 Network Cable is certified by UL, ETL, CSA, RCM, TUV, CPR, CE, and RoHS, ensuring that it meets the highest standards of quality and safety. This cable has a minimum order quantity of 1000PCS and comes packaged in a 40X40X22CM box. Delivery time is 15-45 days, and the supply ability is 1500PCS/DAY.

5. Whether you are setting up a new network or upgrading an existing one, the ITI-CT6U-0020 CAT6 LAN Cable is the perfect choice. With its high-quality construction, fast data transfer speeds, and reliable performance, this cable is sure to provide years of trouble-free use.

250MHz Red UTP CAT6 Cable 23AWG 1000FT Ethernet Network Cable

FAQ:

Q1: What is the brand name of this product?

A1: The brand name of this product is ITI-LINK.

Q2: What is the model number of this product?

A2: The model number of this product is ITI-CT6U-0020.

Q3: Where is this product made?

A3: This product is made in SHENZHEN.

Q4: What certifications does this product have?

A4: This product has UL, ETL, CSA, RCM, TUV, CPR, CE, and RoHS certifications.

Q5: What is the minimum order quantity for this product?

A5: The minimum order quantity for this product is 1000PCS and it comes in 40X40X22CM packaging. The delivery time is 15-45DAYS and the supply ability is 1500PCS/DAY.
