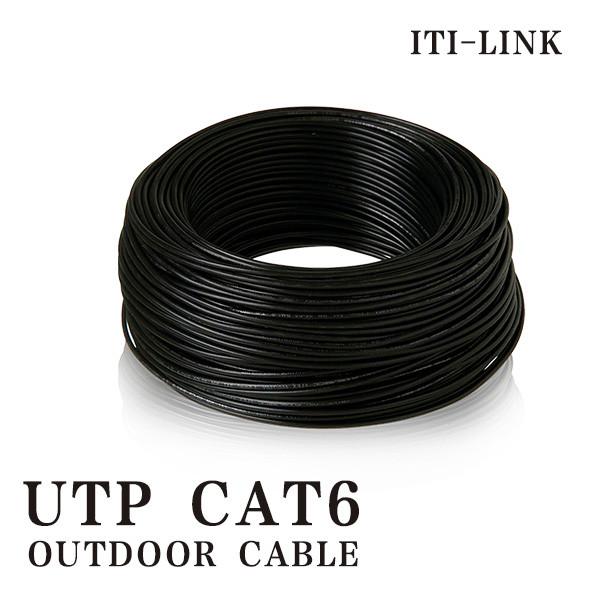

High Speed UTP CAT6 Cable Network Cable 23AWG Solid Outdoor PE Filling Glue
High Speed UTP CAT6 Cable Network Cable 23AWG Solid Outdoor PE Filling Glue
High Speed UTP CAT6 Cable Network Cable 23AWG Solid Outdoor PE Filling Glue
High Speed UTP CAT6 Cable Network Cable 23AWG Solid Outdoor PE Filling Glue
High Speed UTP CAT6 Cable Network Cable 23AWG Solid Outdoor PE Filling Glue
High Speed UTP CAT6 Cable Network Cable 23AWG Solid Outdoor PE Filling Glue
Specifications
Place of Origin :
shenzhen
Brand Name :
ITI-LINK
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Model Number :
ITI-CT6OUT-004
MOQ :
1000pcs
Price :
$50-100/pcs
Delivery Time :
15-45Days
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Data Transfer Rate :
1Gbps
Length :
1000 ft
Jacket Material :
PE
Frequency :
250 MHz
Application :
100Base-TX/100Base-T4/100VG-AnyLan/ATM
Cable Type :
UTP
Conductor Size :
23 AWG
Certifications :
UL, ETL, RCM, CPR, CSA
Conductor aMaterial :
Bare Copper
Compatibility :
Ethernet
Description

1000FT Cat6 UTP 23AWG Extend To 550MHz Solid Outdoor PE Filling Glue High Speed Network Lan Cable

Quick Detail:

· Bare solid copper conductor

· 250MHz

· Jacket PE, 60P, -20~75℃

· Rate temperature:60℃ 75℃

· InstallationTemperature: -30℃-+50℃

· CompliestoANSI/TIA-568-B.2&IS0/EC11801

· CE, RoHS, TUV, UL compliant, CPR, ETL, RCM, ISO9001

Description:

>Cat 6 OUTDOOR CABLE Provide 250MHz bandwidth within a distance of 90 meters, Can be extended to 550MHz. The typical application rate is 1Gbps.

>Cat 6 Cable is filled with glue inside, which can enhance the waterproof performance of the cable and fix the internal structure.Suitable for use in outdoor environments.

>Cat6 UTP Cables have been widely used in fields such as computer networks, telephone systems, and security monitoring. They can support different network transmission rates, such as 100Mbps Ethernet and 1000Mbps Ethernet.

>Cat6 outdoor cable is suitable for outdoor environments and has good weather resistance, waterproof performance, and ultraviolet resistance. It can be used for a long time under harsh outdoor conditions.

>The product selects high-quality oxygen-free copper as the transmission conductor. At the same time, cat6 cable adopts the design of a central cross-shaped PE skeleton to separate four individual pairs. The electrical transmission performance is reliable and excellent, reaching and exceeding the Category 6 system indicators, providing abundant margin support for the system link. It is convenient and fast for construction and laying.

High Speed UTP CAT6 Cable Network Cable 23AWG Solid Outdoor PE Filling Glue

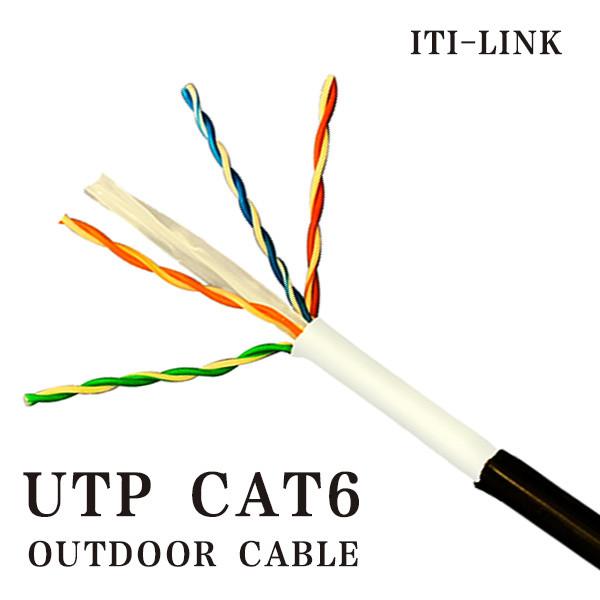

Structural description
❶ Inner Conductor Composition : Solid Bare Copper (BC)
Diameter : See table below
❷ Insulation Composition : High density Polyethylene (HDPE)
Diameter : See table below
❸ Filler Type of filler : Cross-Member
Composition : High density Polyethylene (HDPE)
❹ Filler Type of filler : Ripcord
Composition : Polyester

❺ Jacket

 Composition : LDPE
Dimensions : See table below
color : according to the customer’s requirements

Specifications:

Product Description: CAT6 UTP 23AWG Solid Outdoor PE Cable
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19-24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 23 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 0.95 ± 0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.22 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ±15 Ω

2p: white + 2 orange stripes &

orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=18.5 mm (26%) tensile strength before aging ≥12 MPa
2p: S=15.5 mm (21%) elongation after aging ≥ 150 %
3p: S=20.5 mm (30%) tensile strength after aging ≥10.5 MPa
4p: S=14.0 mm (19%)

jacket

 elongation before aging ≥350%
OD / tensile strength before aging ≥9.7MPa

Inner Assemble

 Lay S=90±5 mm elongation after aging ≥263%
Direction according to the drawing tensile strength after aging ≥7.3MPa
Filler cross member 4.5X4.5X0.4mmT Packing
OD / Inner Box NA

Filler

 Material Ripcord Master Carton NA
Construction 300D

Fill the glue gel

Outside Shield

 Shield /
Construction /
Material /
Coverage /

Jacket

 Material LDPE
Hardness 81 ±3
OD 6.1 ± 0.2
Average THK 0.55~0.60

Color

 according to the customer's requirements

Marking Color

according to the customer's

requirements
Marking

according to the customer's

requirements

Construction ltem Description

Electrical Properties
Conductor Resistance at 20°C

UL 444 & CSA C22.2

No. 214

 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

No breakdown

Insulation Resistance at 20°C after 2min of electrification under a DC voltage

between 100 & 500V

 >1500 MΩ / 100m
Mutual capacitance 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m
Characteristic impedance at 100MHz 100 ± 15 Ω
Spark Test 2000 ± 250VOC

Transmission Properties
CAT 6 UTP OUTDOOR CABLE

No.

Frequency

Attenuation (Max)

 Propagation Delay (MAX) Propagation Delay Skew (MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 3.78 552 45 23.01 66.27 63.27 55.96 52.96
2 8 5.32 546.73 45 24.52 61.75 58.75 49.94 46.94
3 10 5.95 545.38 45 25 60.3 57.3 48 45
4 16 7.55 543 45 25 57.24 54.24 43.92 40.92
5 20 8.47 542.05 45 25 55.78 52.78 41.98 38.98
6 25 9.51 541.2 45 24.32 54.33 51.33 40.04 37.04
7 31.25 10.67 540.44 45 23.64 52.88 49.88 38.1 35.1
8 50 13.66 539.09 45 22.21 49.82 46.82 34.02 31.02
9 62.5 15.38 538.55 45 21.54 48.36 45.36 32.08 29.08
10 100 19.8 537.6 45 20.11 45.3 42.3 28 25
11 125 22.36 537.22 45 19.43 43.85 40.85 26.06 23.06
12 200 28.98 536.55 45 18 40.78 37.78 21.98 18.98
13 250 32.85 536.28 45 17.32 39.33 36.33 20.04 17.04
14
15
16
17
18
Remarks: ＊ are the reference values.

Notices:

1. Open the packaging, check the products carefully, and take them gently.

2. Please strictly follow the wiring standards during construction, and do not tie or excessively bend the network cables.

3. When making RJ45 network cable connectors, please follow the T568B or T568A standards to ensure the correct wire sequence and avoid problems such as disconnected lines or unstable network connections.

4.It is best to use a single network cable at a distance of no more than 100 meters to ensure optimal transmission performance.

5. Ensure that the shielded network cable is grounded during installation.

Applications:

Widely used in office buildings, schools, research institutions, airports, high-speed trains, hospitals, hotels, industries, shopping malls, supermarkets, etc.

High Speed UTP CAT6 Cable Network Cable 23AWG Solid Outdoor PE Filling Glue

FAQ

UL/CE/RoHS/ETL/CPR Certificate Lan cable Cat6 UTP 23AWG Extend to 550MHz Solid Copper Outdoor PE High Speed Lan Cable Filling glue

Q1. Can I order samples of Lan cables?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: 3-5 days for Sample preparing ,8-10 working days for mass production.

Q3. Do you have a minimum order quantity limit for network cable orders?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea, which usually takes about 7 days to arrive.

Q5. How to proceed an order for network cable?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6.Is it OK to print my logo on network cable product?

A: Yes. Please inform us formally before our production.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 10 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, for individual defective products, we will remedy them as soon as possible and send them to you, or we can discuss solutions based on the actual situation to achieve 100% satisfaction for you.
