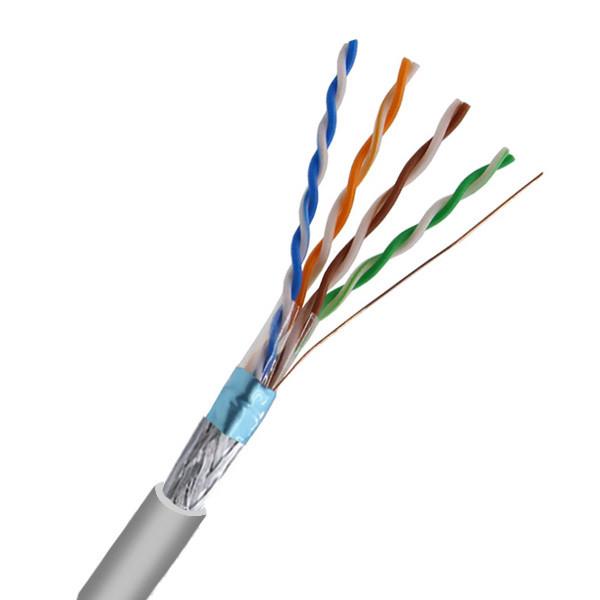

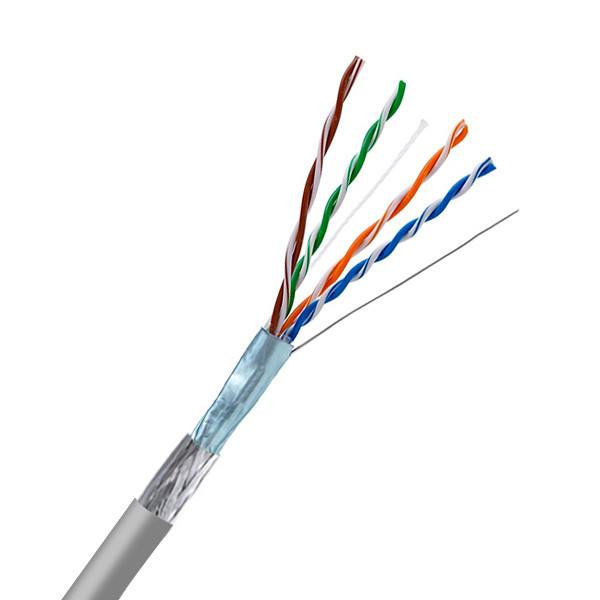

CAT5E SFTP Gray LSZH Jacket 24AWG 100 MHz Ethernet Cable 328FT
CAT5E SFTP Gray LSZH Jacket 24AWG 100 MHz Ethernet Cable 328FT
CAT5E SFTP Gray LSZH Jacket 24AWG 100 MHz Ethernet Cable 328FT
CAT5E SFTP Gray LSZH Jacket 24AWG 100 MHz Ethernet Cable 328FT
CAT5E SFTP Gray LSZH Jacket 24AWG 100 MHz Ethernet Cable 328FT
CAT5E SFTP Gray LSZH Jacket 24AWG 100 MHz Ethernet Cable 328FT
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT5SF-012
Place of Origin :
SHENZHEN
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
MOQ :
1000pcs
Packaging Details :
Color Box+Packing Box 28*28*12cm
Delivery Time :
15-45Days
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Jacket Material :
PVC
Cable Shielding :
SFTP
Cable Length :
328FT
Cable Type :
CAT5E
Jacket Color :
Gray
Conductor Material :
Copper
Conductor Gauge :
24 AWG
Frequency :
100MHz
Description

CAT5E SFTP Gray LSZH Jacket 24AWG 100Hz Ethernet Cable 328FT

Product Description:

1.Our CAT5E SFTP 24AWG 328FT 100Hz Gray LSZH Jacket Ethernet Cable is engineered to fulfill the top - tier standards of quality and performance, making it the optimal choice for exacting networking applications. With a length of 500FT, this cable has sufficient reach to cover even the farthest areas of your network, and its 24 AWG conductor gauge guarantees reliable data transmission consistently.


2.A crucial feature of our CAT5E SFTP cable is its state - of - the - art shielding technology. Unlike standard UTP (unshielded twisted pair) cables that are prone to electromagnetic interference and crosstalk, our SFTP (shielded and foiled twisted pair) cable offers excellent protection against these common problems. This enables you to achieve faster and more reliable data transfer, even in noisy or congested network environments.


3.Our CAT5E SFTP 24AWG 328FT 100Hz Gray LSZH Jacket Ethernet Cable also features a high - frequency rating of 100Hz, which makes it perfect for high - speed networks and multimedia applications. Whether you're streaming video, transferring large files, or running sophisticated software, this cable provides the speed and performance required to complete the task.


4.Another significant aspect of our CAT5E SFTP cable is its high - quality copper conductor material. Copper is renowned for its outstanding conductivity, durability, and resistance to corrosion, ensuring that your data is transmitted with maximum efficiency and reliability. With our CAT5E SFTP 24AWG 500FT 100Hz Gray LSZH Jacket Ethernet Cable, you can be confident that your network is always operating at its peak.


5.In conclusion, if you require a reliable and high - performance networking cable for your business or home network, our CAT5E SFTP cable is the ideal option. With its advanced shielding technology, high - frequency rating, and high - quality copper conductor material, this cable offers fast and secure data transfer you can rely on. So don't hesitate. Order your CAT5E SFTP cable for data transfer today and enjoy the best in networking performance!

Technical Parameters:

Product Attribute Value
Cable Length 328FT
Conductor Material Copper
Jacket Material LSZH
Cable Shielding SFTP
Cable Type CAT5E
Conductor Gauge 24 AWG
Frequency 100MHz
Jacket Color Gray

Product Description:

CAT5E SFTP Gray LSZH Jacket 24AWG 100Hz Ethernet Cable 328FT
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 1.05 ± 0.02 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.24 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω
2p: white + 2 orange stripes & orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥12 MPa
2p: S=17.5 mm (24%)) elongation after aging ≥ 150 %
3p: S=22.0 mm (32%) tensile strength after aging ≥10.5 MPa
4p: S=15.5 mm (21%)

jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
Filler / Packing
OD / Drum NA
Filler Ripcord 300D Master Carton NA
Drain Wire Tinned Copper

Outside Shield

 Shield Shield
Construction /
Material Polyester film/Aluminium Foil (PET/ALU)
Coverage ≥ 115%

Jacket

 Material LSZH, 60P, -20~75℃
Hardness 81 ± 3
OD 6.5 ± 0.2
Average THK 0.50 ~ 0.60

Color

 Gray
Marking Color

BLACK
Marking

according to the customer's

requirements

Electrical Properties
Conductor Resistance at 20°C NF EN 50289-1-2 / IEC 60189-1 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair NF EN 50289-1-2/ IEC 60708 ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

NF EN 50289-1-3 / IEC 61196-1-105

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

NF EN 50289-1-4 / IEC 60885-1

>1500 MΩ / 100m
Mutual capacitance NF EN 50289-1-5 /IEC 60189-1 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz NF EN 50289-1-5 / IEC 60189-1 ≤ 160 pF / 100m
Characteristic impedance at 100MHz NF EN 50289-1-11/ IEC 61156-1 100 ± 15 Ω
Spark Test UL444 2000 ± 250VOC

Transmission Properties
CAT5e ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013

No.

Frequency

Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11
12
13
14
Remarks: ＊ are the reference values

Applications:

1.This cable is 328FT long, ensuring that you have sufficient cable to connect your devices smoothly. The CAT5E cable type and 24 AWG copper conductor gauge make this cable perfect for use in a broad range of applications, such as LAN networking, data centers, and home networks.


2.The CAT5E SFTP 24AWG 328FT 100Hz Gray LSZH Jacket Ethernet Cable features a shielded twisted - pair design that offers excellent protection against electromagnetic interference, guaranteeing stable and reliable data transmissions. This makes it an ideal option for use in environments where interference is an issue, like industrial settings or areas with high - level electromagnetic activity.


3.The ITI - CT5SF - 001 CAT5E SFTP 24AWG 328FT 100Hz Gray LSZH Jacket Ethernet Cable is also highly versatile and can be used in various scenarios. For instance, it can be used to connect your computer to a router or switch, link a printer to a computer, or even connect a gaming console to the internet.


4.Overall, the ITI - LINK CAT5E SFTP 24AWG 328FT 100Hz Gray LSZH Jacket Ethernet Cable is a reliable and high - quality networking cable suitable for a wide array of applications. Its shielded design, high - quality copper conductor, and long length make it an excellent choice for any business or home network.

CAT5E SFTP Gray LSZH Jacket 24AWG 100 MHz Ethernet Cable 328FT

Packing and Shipping:

Product Packaging:

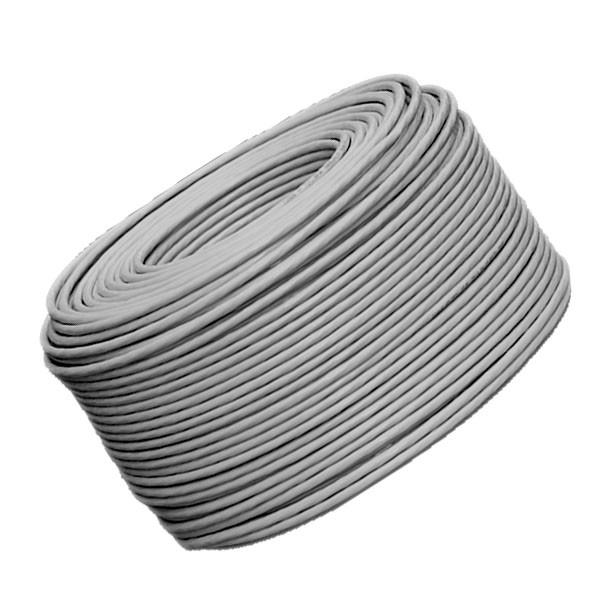

The SFTP CAT5E CABLE is packaged in a sturdy cardboard box to protect it during shipping. The cable is coiled neatly inside the box to prevent tangling and damage during transport.

Shipping:

The cable is shipped via standard shipping and typically arrives within 15-45 business days. For expedited shipping, please contact our customer service team for pricing and availability.

FAQ:

Q: What is the brand name of this SFTP CAT5E cable?

A: The brand name of this cable is ITI-LINK.

Q: What is the model number of this SFTP CAT5E cable?

A: The model number of this cable is ITI-CT5SF-012.

Q: Where is this SFTP CAT5E cable manufactured?

A: This cable is manufactured in Shenzhen.

Q: Is this SFTP CAT5E cable shielded?

A: Yes, this cable is shielded with SFTP (Shielded Foiled Twisted Pair) technology.

Q: What is the maximum transmission distance of this SFTP CAT5E cable?

A: The maximum transmission distance of this cable is 100 meters.
