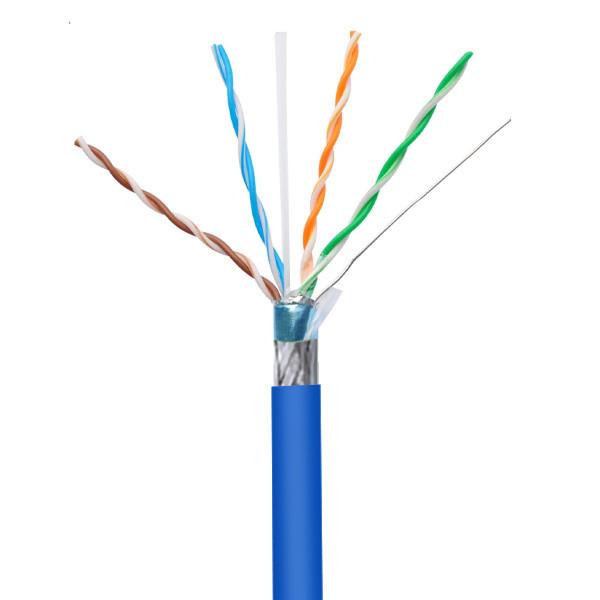

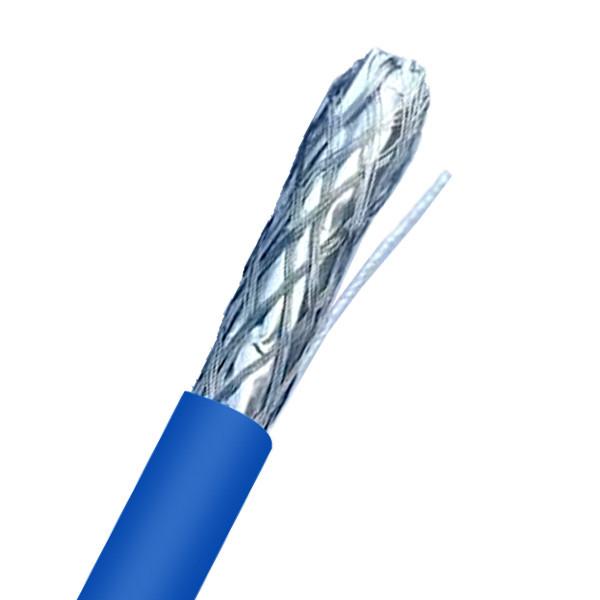

SFTP Cat5e 24AWG Expend To 350Hz 1000Ft Blue PVC Jacket Cable Pass Fluke
SFTP Cat5e 24AWG Expend To 350Hz 1000Ft Blue PVC Jacket Cable Pass Fluke
SFTP Cat5e 24AWG Expend To 350Hz 1000Ft Blue PVC Jacket Cable Pass Fluke
SFTP Cat5e 24AWG Expend To 350Hz 1000Ft Blue PVC Jacket Cable Pass Fluke
SFTP Cat5e 24AWG Expend To 350Hz 1000Ft Blue PVC Jacket Cable Pass Fluke
SFTP Cat5e 24AWG Expend To 350Hz 1000Ft Blue PVC Jacket Cable Pass Fluke
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT5SF-007
Place of Origin :
SHENZHEN
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
MOQ :
1000pcs
Packaging Details :
Color Box+Packing Box 38*38*24cm
Delivery Time :
15-45Days
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Cable Type :
CAT5E
Cable Length :
1000ft
Jacket Material :
PVC
Conductor Gauge :
24 AWG
Cable Shielding :
SFTP
Conductor Material :
Copper
Jacket Color :
Blue
Frequency :
100MHz
Description

Cat5e SFTP 24AWG Expend to 350Hz 1000Ft Blue PVC Jacket Cable Pass Fluke

Product Description:

1.The Cat5e SFTP 24AWG cable with a 1000Ft blue PVC jacket and expandable to 350Hz is made of high - quality materials. The PVC jacket provides wear - resistance and an appealing look. The 24 AWG copper conductors ensure great conductivity and signal strength, suitable for high - speed networks.


2.This Cat5e SFTP cable is highly versatile for applications like data transfer, networking, and internet connections. It's designed for reliable performance and durability even in harsh conditions.


3.The shielded construction of the Cat5e SFTP cable for data transfer protects against interference, making it an ideal choice for high - speed networks where reliable transfer is crucial.


4.The Cat5e SFTP 24AWG 1000Ft blue PVC jacket cable is a great networking cable for many applications. Its shielding mechanism prevents interference and ensures reliable data transfer, fitting high - speed networks well.


5.With a 1000Ft (approx. 305m) length, this Cat5e SFTP cable is adaptable to various scenarios, from compact offices to industrial environments, guaranteeing reliable performance and durability. Its 350Hz operation ability enhances high - speed data transmission.

Technical Parameters:

Technical Parameter Value
Jacket Material PVC
Conductor Gauge 24 AWG
Frequency 100MHz
Cable Shielding SFTP
Conductor Material Copper
Cable Length 305m
Jacket Color Blue
Cable Type CAT5E

Product Description:

Cat5e SFTP 24AWG Expend to 350Hz 1000Ft Blue PVC Jacket Cable Pass Fluke
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 0.90 ± 0.02 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.20 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω
2p: white + 2 orange stripes & orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥12 MPa
2p: S=17.5 mm (24%)) elongation after aging ≥ 150 %
3p: S=22.0 mm (32%) tensile strength after aging ≥10.5 MPa
4p: S=15.5 mm (21%)

jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
Filler / Packing
OD / Drum NA
Filler Ripcord 300D Master Carton NA
Drain Wire Tinned Copper

Outside Shield

 Shield Shield
Construction /
Material Polyester film/Aluminium Foil (PET/ALU)
Coverage ≥ 115%

Jacket

 Material PVC, 50P, -20~75℃
Hardness 81 ± 3
OD 6.5 ± 0.2
Average THK 0.50 ~ 0.60

Color

 Blue
Marking Color

according to the customer's

requirements
Marking

according to the customer's

requirements

Electrical Properties
Conductor Resistance at 20°C NF EN 50289-1-2 / IEC 60189-1 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair NF EN 50289-1-2/ IEC 60708 ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

NF EN 50289-1-3 / IEC 61196-1-105

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

NF EN 50289-1-4 / IEC 60885-1

>1500 MΩ / 100m
Mutual capacitance NF EN 50289-1-5 /IEC 60189-1 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz NF EN 50289-1-5 / IEC 60189-1 ≤ 160 pF / 100m
Characteristic impedance at 100MHz NF EN 50289-1-11/ IEC 61156-1 100 ± 15 Ω
Spark Test UL444 2000 ± 250VOC

Transmission Properties
CAT5e ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013

No.

Frequency

Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11
12
13
14
Remarks: ＊ are the reference values

Applications:

1.The Cat5e SFTP 24AWG Expend to 350Hz 1000Ft Blue PVC Jacket Cable's shielding guarantees secure data transmission and protection from electromagnetic interference. This makes it great for outdoor use with high interference risks. The copper conductors resist corrosion and have excellent conductivity.


2.The blue PVC jacket of this cable helps in easy identification among many cables. With a 24 AWG conductor gauge, it's compatible with most Ethernet - using devices and suitable for high - speed data transfer like video streaming, online gaming, and file sharing.


3.The Cat5e SFTP 24AWG Expend to 350Hz 1000Ft Blue PVC Jacket Cable is versatile for various applications, both indoors and outdoors. It's ideal for large commercial buildings, SMBs, and homes, and can connect computers, printers, routers, switches, etc.


4.In conclusion, this cable is reliable with high - speed data transfer and secure connectivity. Its shielding ensures interference - free data transmission, making it suitable for outdoor use and versatile for different network applications in commercial and home settings.

SFTP Cat5e 24AWG Expend To 350Hz 1000Ft Blue PVC Jacket Cable Pass Fluke

FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is ITI-LINK.

Q: What is the model number of this product?

A: The model number of this product is ITI-CT5SF-007.

Q: Where is this product manufactured?

A: This product is manufactured in SHENZHEN.

Q: What is the maximum transfer speed of this cable?

A: The maximum transfer speed of this cable is 1 Gbps.

Q: Is this cable shielded?

A: Yes, this cable is shielded.

Q: Do you offer guarantee for the products?
A: Yes, we offer 10 years warranty to our products.
