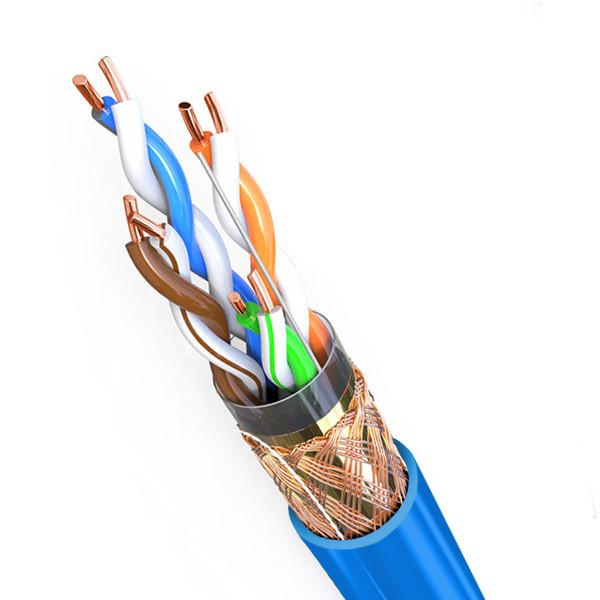

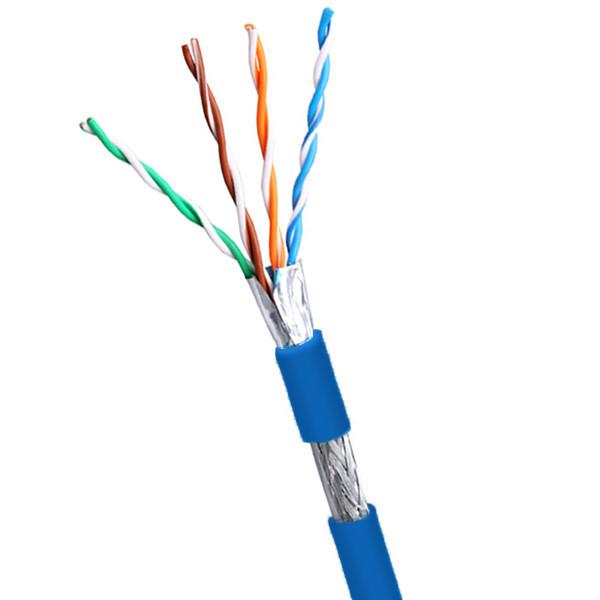

LSZH Jacket SFTP CAT5E Cable 100MHz Frequency Blue 0.510mm Copper Shielded Cable
LSZH Jacket SFTP CAT5E Cable 100MHz Frequency Blue 0.510mm Copper Shielded Cable
LSZH Jacket SFTP CAT5E Cable 100MHz Frequency Blue 0.510mm Copper Shielded Cable
LSZH Jacket SFTP CAT5E Cable 100MHz Frequency Blue 0.510mm Copper Shielded Cable
LSZH Jacket SFTP CAT5E Cable 100MHz Frequency Blue 0.510mm Copper Shielded Cable
LSZH Jacket SFTP CAT5E Cable 100MHz Frequency Blue 0.510mm Copper Shielded Cable
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT5SF-014
Place of Origin :
SHENZHEN
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
MOQ :
1000pcs
Packaging Details :
Color Box+Packing Box 28*28*12cm
Delivery Time :
15-45Days
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Cable Shielding :
SFTP
Conductor Material :
Copper
Jacket Color :
Blue
Conductor Gauge :
24 AWG
Frequency :
100MHz Expend to 350Hz
Cable Length :
500Ft
Jacket Material :
PVC
Cable Type :
CAT5E
Description

Cat5e SFTP LSZH Jacket 100MHz Frequency Blue 0.510mm Copper Shielded Cable

Product Description:

1.The jacket material of this Cat5e SFTP 100MHz Frequency Blue LSZH Jacket 0.510mm Copper SHIELDED CABLE is low - smoke zero - halogen (LSZH), which not only provides excellent protection against abrasion, moisture, and other environmental factors like traditional PVC but also has remarkable fire - retardant properties with low smoke emission during combustion. This ensures that the cable remains durable and reliable even in harsh conditions such as in case of a fire emergency. The LSZH material also enhances the flexibility of the cable, making it easier to install and work with.


2.The cable shielding of this Cat5e SFTP cable ensures that your data is protected from electromagnetic interference and radio - frequency interference. This allows for faster and more reliable data transfer, which is essential for high - performance networks. The use of SFTP shielding also provides better protection against external noise and crosstalk, resulting in a cleaner and more stable signal. Moreover, the SFTP shielding in combination with the LSZH jacket offers enhanced safety by reducing the risk of fire spreading caused by cable issues in data centers or other network - intensive environments.


3.The conductor gauge of this cable is 24 AWG with a 0.510mm copper conductor, which is ideal for high - speed data transfer. This allows for faster transmission of data over longer distances, making it ideal for use in large - scale networks. The cable also has a frequency rating of 100MHz, which ensures that it can handle high - bandwidth applications with ease.


4.In summary, the Cat5e SFTP 100MHz Frequency Blue LSZH Jacket 0.510mm Copper SHIELDED CABLE is a high - quality, reliable, and flexible cable that is perfect for Ethernet cabling needs. Its LSZH jacket material, SFTP shielding, 24 AWG conductor gauge, and 100MHz frequency rating make it an ideal choice for any network installation. Whether you are setting up a small home network or a large - scale commercial installation, this cable will provide you with the performance and reliability you need, along with the added safety benefits of being a low - smoke zero - halogen cable.

Features:

  • Product Name: Cat5e SFTP 100MHz Frequency Blue LSZH Jacket 0.510mmCopper SHIELDED CABLE
  • Cable Shielding: SFTP
  • Cable Length: 500Ft
  • Cable Type: CAT5E
  • Jacket Material: LSZH
  • Frequency: 100MHz

This Cat5e SFTP 100MHz Frequency Blue LSZH Jacket 0.510mm Copper SHIELDED CABLE is perfect for high - speed data transfer. It is a Cat5e SFTP ETHERNET CABLE that provides a reliable and secure connection. The cable's shielding effectively reduces electromagnetic and radio - frequency interference, making it ideal for use in noisy environments. The 100MHz frequency capability enables it to handle high - bandwidth applications with ease. The 0.510mm copper conductor within the cable ensures stable and efficient data transmission over long distances. The blue LSZH jacket not only gives the cable a professional appearance but also offers enhanced safety features as it is low - smoke and zero - halogen.

Technical Parameters:

Technical Parameter Description
Cable Type CAT5E
Cable Shielding SFTP
Conductor Material Copper
Cable Length 500Ft
Jacket Material LSZH
Jacket Color Blue
Conductor Gauge 24 AWG
Frequency 100MHz Expend to 350Hz

Product Description: Cat5e SFTP 100MHz Frequency Blue LSZH Jacket 0.510mmCopper SHIELDED CABLE
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 1.05 ± 0.02 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.24 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω
2p: white + 2 orange stripes & orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥12 MPa
2p: S=17.5 mm (24%)) elongation after aging ≥ 150 %
3p: S=22.0 mm (32%) tensile strength after aging ≥10.5 MPa
4p: S=15.5 mm (21%)

jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
Filler / Packing
OD / Drum NA
Filler Ripcord 300D Master Carton NA
Drain Wire Tinned Copper

Outside Shield

 Shield Shield
Construction /
Material Polyester film/Aluminium Foil (PET/ALU)
Coverage ≥ 115%

Jacket

 Material LSZH, 60P, -20~75℃
Hardness 81 ± 3
OD 6.5 ± 0.2
Average THK 0.50 ~ 0.60

Color

 Blue
Marking Color

according to the customer's

requirements
Marking

according to the customer's

requirements

Electrical Properties
Conductor Resistance at 20°C NF EN 50289-1-2 / IEC 60189-1 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair NF EN 50289-1-2/ IEC 60708 ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

NF EN 50289-1-3 / IEC 61196-1-105

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

NF EN 50289-1-4 / IEC 60885-1

>1500 MΩ / 100m
Mutual capacitance NF EN 50289-1-5 /IEC 60189-1 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz NF EN 50289-1-5 / IEC 60189-1 ≤ 160 pF / 100m
Characteristic impedance at 100MHz NF EN 50289-1-11/ IEC 61156-1 100 ± 15 Ω
Spark Test UL444 2000 ± 250VOC

Transmission Properties
CAT5e ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013

No.

Frequency

Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11
12
13
14
Remarks: ＊ are the reference values

Applications:

1.With SFTP shielding, this Cat5e SFTP 100MHz Frequency Blue LSZH Jacket 0.510mm Copper SHIELDED CABLE provides outstanding protection against external electromagnetic interference, ensuring stable and fast data transmission. The low - smoke zero - halogen (LSZH) jacket material not only makes it durable and flexible for easy installation but also offers enhanced safety features. The blue jacket is easily distinguishable and complements most network equipment.


2.The copper conductor material ensures excellent conductivity and minimizes signal loss. With a frequency rating of 100MHz, this cable can handle high - speed data transfer up to Gigabit Ethernet speeds.


ITI - LINK Cat5e SFTP 100MHz Frequency Blue LSZH Jacket 0.510mm Copper SHIELDED CABLE is suitable for various data transfer scenarios, including but not limited to:

  • SFTP CAT5E LAN PATCH CORD: The cable can be used to connect computers, printers, routers, switches, and other network devices in a local area network (LAN) environment. Thanks to the SFTP shielding, it provides extra security and reliability for data transfer.
  • CABLE SFTP CAT5E DATA TRANSFER: The cable can be used to transfer data between different devices, such as between a computer and a printer, between a camera and a recorder, or between a router and a modem. Its high - speed and stable data transfer capabilities ensure efficient and smooth workflows.


SFTP ETHERNET NETWORK CABLE: The cable can be used to build an Ethernet network for various purposes, such as gaming, streaming, browsing, and file sharing. With its ability to handle high - speed data transfer, it ensures a fast and reliable network connection.
In summary, ITI - LINK Cat5e SFTP 100MHz Frequency Blue LSZH Jacket 0.510mm Copper SHIELDED CABLE is a versatile and reliable product that can meet various data transfer needs. With high - quality materials and manufacturing, it ensures stable and efficient data transfer in different scenarios.

LSZH Jacket SFTP CAT5E Cable 100MHz Frequency Blue 0.510mm Copper Shielded Cable

Packing and Shipping:

Product Packaging:

  • One SFTP CAT5E Cable
  • Fixed Packaging

Shipping:

  • Ships within 15-45 business days
  • Standard shipping

FAQ:

Here are some frequently asked questions about ITI-LINK's SFTP CAT5E CABLE:

Q: What is the brand name of this product?

A: The brand name of this product is ITI-LINK.

Q: What is the model number of this product?

A: The model number of this product is ITI-CT5SF-014.

Q: Where is this product manufactured?

A: This product is manufactured in Shenzhen.

Q: What is the difference between SFTP and UTP?

A: SFTP (Shielded Foiled Twisted Pair) cable has an additional layer of shielding to protect against electromagnetic interference, while UTP (Unshielded Twisted Pair) cable does not have this shielding. SFTP cable is typically used in environments with high levels of electromagnetic interference.

Q: What is the maximum length of this cable?

A: The maximum length of this cable is 1000Ft.
