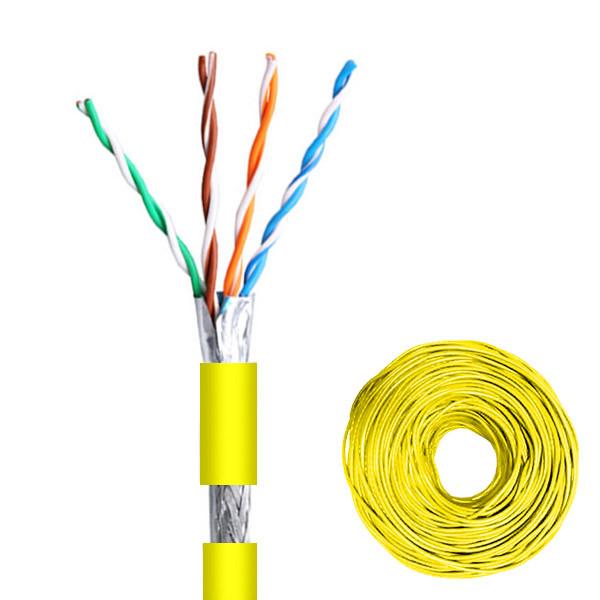

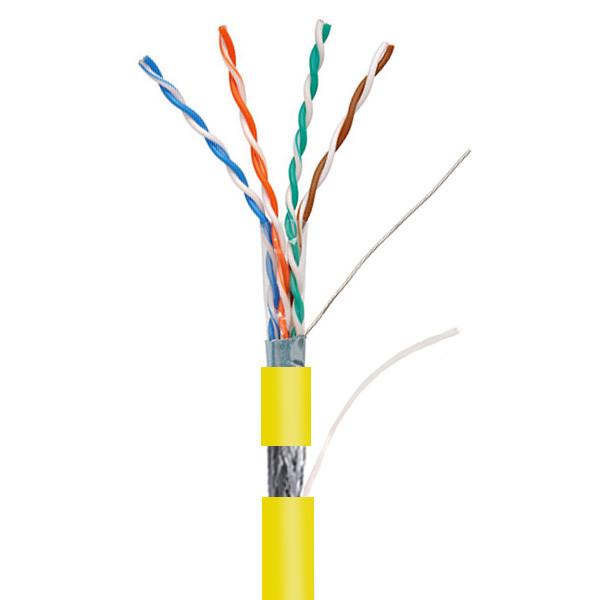

Yellow PVC Ethernet Cable 100MHz 0.51mm Pure Copper 1000FT SFTP CAT5E Cable
Yellow PVC Ethernet Cable 100MHz 0.51mm Pure Copper 1000FT SFTP CAT5E Cable
Yellow PVC Ethernet Cable 100MHz 0.51mm Pure Copper 1000FT SFTP CAT5E Cable
Yellow PVC Ethernet Cable 100MHz 0.51mm Pure Copper 1000FT SFTP CAT5E Cable
Yellow PVC Ethernet Cable 100MHz 0.51mm Pure Copper 1000FT SFTP CAT5E Cable
Yellow PVC Ethernet Cable 100MHz 0.51mm Pure Copper 1000FT SFTP CAT5E Cable
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT5SF-005
Place of Origin :
SHENZHEN
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
MOQ :
1000pcs
Packaging Details :
Color Box+Packing Box 30*30*12cm
Delivery Time :
15-45Days
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Jacket Color :
Yellow
Jacket Material :
PVC
Cable Shielding :
SFTP
Cable Type :
CAT5E
Frequency :
100MHz
Cable Length :
1000Ft
Conductor Material :
Copper
Conductor Gauge :
24 AWG
Description

Cat5e SFTP Yellow PVC Lan Cable 100MHz 0.51mm Pure Copper 1000FT

Product Description:

1.With a length of 1000Ft (approximately 305m), the Cat5e SFTP 24AWG 0.510mm Copper 1000Ft Yellow PVC Lan Cable is perfect for large - scale network installations. It provides enough length for connecting devices over a large area. The 24AWG copper conductors with a diameter of 0.510mm ensure reliable performance and durability under heavy usage.


2.This Cat5e SFTP cable is designed to offer excellent shielding against interference and crosstalk, making it ideal for noisy environments. Its shielded structure prevents signal loss and maintains consistent performance, even in areas with high - level electromagnetic interference.
The yellow PVC jacket of the cable enables easy identification and differentiation from other cables in the network, simplifying cable management and maintenance. You can quickly identify and solve any potential issues.


3.In summary, the Cat5e SFTP 24AWG 0.510mm Copper 1000Ft Yellow PVC Lan Cable is a high - quality data - transfer cable for Ethernet networks. Its construction provides outstanding shielding against interference and crosstalk, suitable for noisy environments. With its length and conductor specifications, it's great for large - scale network installations. The yellow jacket facilitates cable management and maintenance.

Technical Parameters:

Cable Type: CAT5E
Cable Shielding: SFTP
Conductor Gauge: 24 AWG
Conductor Material: Copper
Jacket Material: PVC
Jacket Color: Yellow
Cable Length: 305m
Frequency: 100MHz

Product Description:

Cat5e SFTP Yellow PVC Lan Cable 100MHz 0.51mm Pure Copper 1000FT
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 0.90 ± 0.02 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.20 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω
2p: white + 2 orange stripes & orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥12 MPa
2p: S=17.5 mm (24%)) elongation after aging ≥ 150 %
3p: S=22.0 mm (32%) tensile strength after aging ≥10.5 MPa
4p: S=15.5 mm (21%)

jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
Filler / Packing
OD / Drum NA
Filler Ripcord 300D Master Carton NA
Drain Wire Tinned Copper

Outside Shield

 Shield Shield
Construction /
Material Polyester film/Aluminium Foil (PET/ALU)
Coverage ≥ 115%

Jacket

 Material PVC, 50P, -20~75℃
Hardness 81 ± 3
OD 6.5 ± 0.2
Average THK 0.50 ~ 0.60

Color

 Yellow
Marking Color

black
Marking

according to the customer's

requirements

Electrical Properties
Conductor Resistance at 20°C NF EN 50289-1-2 / IEC 60189-1 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair NF EN 50289-1-2/ IEC 60708 ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

NF EN 50289-1-3 / IEC 61196-1-105

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

NF EN 50289-1-4 / IEC 60885-1

>1500 MΩ / 100m
Mutual capacitance NF EN 50289-1-5 /IEC 60189-1 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz NF EN 50289-1-5 / IEC 60189-1 ≤ 160 pF / 100m
Characteristic impedance at 100MHz NF EN 50289-1-11/ IEC 61156-1 100 ± 15 Ω
Spark Test UL444 2000 ± 250VOC

Transmission Properties
CAT5e ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013

No.

Frequency

Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11
12
13
14
Remarks: ＊ are the reference values

Applications:

1.The Cat5e SFTP 24AWG 0.510mm Copper 1000Ft Yellow PVC Lan Cable is highly suitable for various scenarios and applications. It's an excellent choice for small - to medium - sized enterprises and home networks alike. This cable offers a dependable and speedy connection for all your devices such as computers, printers, and routers.


2.The Cat5e SFTP Ethernet Network Cable provides a secure and stable connection for your network equipment. With a frequency of 100MHz and a length of 1000Ft (approximately 305m when converted), it's perfect for larger - scale networks. Its PVC jacket material serves as an additional safeguard against wear and tear.


3.The Cat5e SFTP Ethernet Patch Cord is also great for industrial settings. The shielding of this cable ensures protection from electromagnetic interference, which is often an issue in industrial environments. It offers a reliable and stable connection for all your industrial devices, including Programmable Logic Controllers (PLCs) and sensors.


4.Overall, the Cat5e SFTP 24AWG 0.510mm Copper 1000Ft Yellow PVC Lan Cable is a versatile and reliable option, ideal for a wide range of applications. Whether you're using it in a business or an industrial environment, this cable will provide a fast and reliable connection for all your devices.

Yellow PVC Ethernet Cable 100MHz 0.51mm Pure Copper 1000FT SFTP CAT5E Cable

Packing and Shipping:

Product Packaging:

  • 1 SFTP CAT5E Cable
  • Box packaging
  • Product label

Shipping:

  • Ships within 15-45 business days
  • Tracking number provided

FAQ:

1.What is the length of the ITI-LINK ITI-CT5SF-005 SFTP CAT5E CABLE?

The ITI-LINK ITI-CT5SF-001 SFTP CAT5E CABLE comes in a standard length of 305 meter (1000feet).

2.What is the difference between SFTP and UTP CAT5E cables?

SFTP (Shielded Foiled Twisted Pair) cables have an extra layer of shielding to reduce electromagnetic interference, while UTP (Unshielded Twisted Pair) cables do not have this added layer of protection. SFTP cables are recommended for high-performance networks with heavy data traffic and for use in areas with high levels of electromagnetic interference.

3.Where is the ITI-LINK ITI-CT5SF-005 SFTP CAT5E CABLE manufactured?

The ITI-LINK ITI-CT5SF-005 SFTP CAT5E CABLE is manufactured in Shenzhen, China.

4.Can the ITI-LINK ITI-CT5SF-005 SFTP CAT5E CABLE be used for outdoor installations?

No, the ITI-LINK ITI-CT5SF-005 SFTP CAT5E CABLE is designed for indoor use only. Outdoor installations require cables with special jackets and coatings to protect against weather and environmental factors.

5.Is the ITI-LINK ITI-CT5SF-005 SFTP CAT5E CABLE compatible with PoE (Power over Ethernet) devices?

Yes, the ITI-LINK ITI-CT5SF-005 SFTP CAT5E CABLE is fully compatible with PoE devices and can provide both data and power transmission to compatible devices.
