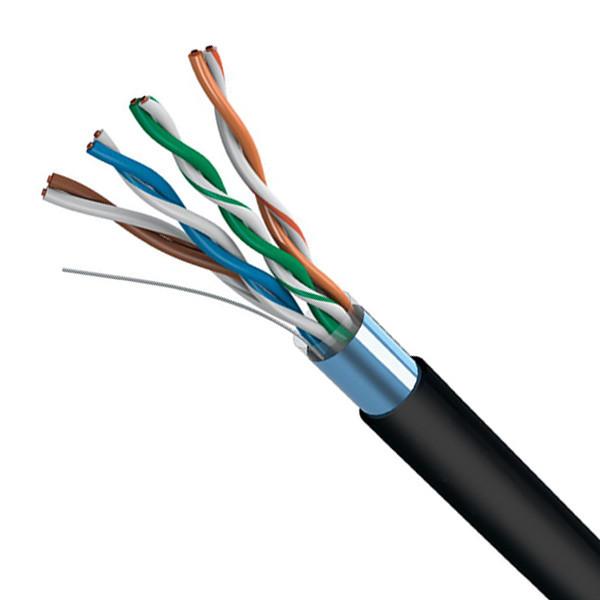

1000FT Cat5e FTP Outdoor PE 24AWG 100% Copper High Speed Network Cable
1000FT Cat5e FTP Outdoor PE 24AWG 100% Copper High Speed Network Cable
1000FT Cat5e FTP Outdoor PE 24AWG 100% Copper High Speed Network Cable
1000FT Cat5e FTP Outdoor PE 24AWG 100% Copper High Speed Network Cable
1000FT Cat5e FTP Outdoor PE 24AWG 100% Copper High Speed Network Cable
1000FT Cat5e FTP Outdoor PE 24AWG 100% Copper High Speed Network Cable
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT5F-005
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Place of Origin :
shenzhen
MOQ :
1000pcs
Price :
$60-70 pcs
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Delivery Time :
15-45Days
Packaging Details :
34x34x21cm
Color :
Red
Length :
1000 ft
Jacket Material :
PE
Frequency :
100 MHz
Cable Type :
FTP
Conductor Size :
24 AWG
Certifications :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Conductor Material :
Bare Copper
Conductor Gauge :
24 AWG
Description

Cat5e FTP Outdoor PE 24AWG 100% Copper High Speed Network Cable 1000FT

Quick Detail:

· Bare solid copper conductor

· 100MHz

· Aluminum foil shielding

· Jacket PE

· Ratetemperature:

· InstallationTemperature:

· CompliestoANSI/TIA-568-B.2&IS0/EC11801

· CE, RoHS, TUV, UL compliant, CPR, ETL, RCM, ISO9001

Description:

1. This outdoor single-layer Cat5e FTP shielded Ethernet cable can effectively reduce external electromagnetic interference, ensuring the stability and reliability of signal transmission.

2. The Cat5e FTP network cable uses solid copper conductors as the core wire, which has good conductivity and can ensure high-speed data transmission.

3. The Cat5e outdoor FTP network cable is designed with a PE sheath specifically for outdoor use, providing excellent protection and suitable for various harsh outdoor environments.

4. This Cat5e network cable has a length of 1000 feet and can effectively meet daily cabling needs.

Specifications:

Product Description: CAT5E F/UTP 24AWG Solid Outdoor PE Cable
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 0.88 ± 0.05 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.21 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω

2p: white + 2 orange stripes &

orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥16 MPa
2p: S=17.5 mm (24%)) elongation after aging NA
3p: S=22.0 mm (32%) tensile strength after aging NA
4p: S=15.5 mm (21%)

jacket

 elongation before aging ≥350%
OD / tensile strength before aging ≥9.7MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥263%
Direction according to the drawing tensile strength after aging ≥7.3MPa
Filler / Packing
OD / Inner Box NA
Filler Material Ripcord Master Carton NA
Construction 250D*3

Outside Shield

 Shield Shield
Construction /
Material Polyester/Aluminium (PET/ALU)
Coverage ≥ 115%

Jacket

 Material Jacket: PE
Hardness 30
OD 5.2 ± 0.2
Average THK 0.45 ~ 0.55

Color

 black

Marking Color

 white
Marking according to the customer's requirements

Transmission Properties
CAT5e F/UTP OUTDOOR CABLE

No.

Frequency

Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11
12
13
14
Remarks: ＊ are the reference values

Electrical Properties
Conductor Resistance at 20°C

UL 444 & CSA C22.2

No. 214

 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
Mutual capacitance 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m
Characteristic impedance at 100MHz 100 ± 15 Ω
Spark Test 2000 ± 250VOC

Transmission Properties
CAT5e F/UTP

No.

Frequency

Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11
12
13
14
Remarks: ＊ are the reference values

Notices:

1. Open the packaging, check the products carefully, and take them gently.

2. Please strictly follow the wiring standards during construction, and do not tie or excessively bend the network cables.

3. When making RJ45 network cable connectors, please follow the T568B or T568A standards to ensure the correct wire sequence and avoid problems such as disconnected lines or unstable network connections.

4.It is best to use a single network cable at a distance of no more than 100 meters to ensure optimal transmission performance.

5. Ensure that the shielded network cable is grounded during installation.

Applications:

Cat5e outdoor shielded network cables play an important role in multiple scenarios due to their excellent anti-interference ability, stable transmission performance, and wide applicability. Here are several typical application scenarios:

1. Data center and computer room:
>Data centers and data centers often have a large number of electromagnetic interference sources, such as servers, storage devices, power supplies, etc. Cat5e outdoor FTP shielded network cables can effectively shield these external electromagnetic interferences, ensuring the stability and reliability of data transmission.
>It supports high-speed network applications such as Gigabit Ethernet (1000BASE-T), meeting the data center's demand for high bandwidth and low latency.

2. In the fields of finance and healthcare:
>The financial and healthcare industries have extremely high requirements for data security, ensuring that data transmission is not stolen or tampered with.
>Category 5e outdoor shielded network cables can effectively shield electromagnetic signals, prevent information leakage and eavesdropping, and provide secure data transmission guarantees for these fields.

3. Outdoor network deployment:
>In outdoor environments, network cables may be affected by various adverse weather conditions and physical damage. Category 5e outdoor shielded network cables have high durability and protection levels, which can withstand these adverse factors and ensure the continuity of data transmission.
>Its shielding layer can effectively isolate external electromagnetic interference, ensuring the quality of data transmission in complex environments.

4. Industrial and Automation Control:
>The stability and real-time performance of data transmission are crucial in industrial and automation control systems.
>Cat5e outdoor shielded network cables can provide stable data transmission services while resisting electromagnetic interference and physical damage in industrial environments, ensuring the accuracy and reliability of automation control.

5. In the field of scientific research and education:
>Research and educational institutions typically need to process large amounts of data and information, and have high requirements for network performance.
>Cat5e outdoor shielded network cables can meet the needs of these institutions for high-speed and stable data transmission, supporting applications such as high-definition streaming media transmission and video conferencing.

1000FT Cat5e FTP Outdoor PE 24AWG 100% Copper High Speed Network Cable

FAQ

UL/CE/RoHS/ETL/CPR Certificate Shielded Lan cable F/UTP 24AWG Solid Outdoor PE Bare Solid Copper

Q1. Can I order samples of Lan cables?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: 3-5 days for Sample preparing ,8-10 working days for mass production.

Q3. Do you have a minimum order quantity limit for network cable orders?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea, which usually takes about 15-45 days to arrive.

Q5. How to proceed an order for network cable?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6.Is it OK to print my logo on network cable product?

A: Yes. Please inform us formally before our production.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 10 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, for individual defective products, we will remedy them as soon as possible and send them to you, or we can discuss solutions based on the actual situation to achieve 100% satisfaction for you.
