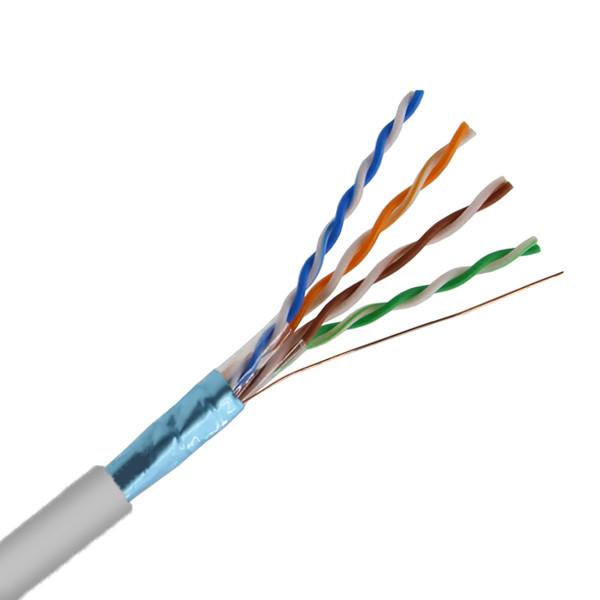

0.515mm Bare Copper Gray Jacket LSZH Cable Pass Fluke 24AWG FTP CAT5E Cable
0.515mm Bare Copper Gray Jacket LSZH Cable Pass Fluke 24AWG FTP CAT5E Cable
0.515mm Bare Copper Gray Jacket LSZH Cable Pass Fluke 24AWG FTP CAT5E Cable
0.515mm Bare Copper Gray Jacket LSZH Cable Pass Fluke 24AWG FTP CAT5E Cable
0.515mm Bare Copper Gray Jacket LSZH Cable Pass Fluke 24AWG FTP CAT5E Cable
0.515mm Bare Copper Gray Jacket LSZH Cable Pass Fluke 24AWG FTP CAT5E Cable
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT5F-014
Place of Origin :
shenzhen
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
MOQ :
1000pcs
Delivery Time :
15-45Days
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Packaging Details :
Color Box+Packing Box 36*36*21cm
Cable Type :
FTP
Jacket Material :
LSZH
Length :
1000ft
Frequency :
100MHz
Conductor Material :
Copper
Color :
Gray
Conductor Size :
24 AWG
Certifications :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Description

Cat5e FTP 24AWG 0.515mm Bare Copper Gray Jacket LSZH Cable Pass Fluke

Product Description:

1.One of the crucial aspects of the Cat5e FTP 24AWG 0.515mm Bare Copper Gray Jacket LSZH Cable Pass Fluke is its certifications. This remarkable cable is UL - certified, signifying that it has undergone thorough testing and verification to fulfill stringent safety requirements. Moreover, it holds an ETL - certification, indicating that it has been examined for compliance with electrical safety norms. Additionally, this cable is RoHS - certified, which implies that it is devoid of any hazardous substances that could potentially damage the environment.


2.The Cat5e FTP 24AWG 0.515mm Bara Copper Gray Jacket LSZH Cable Pass Fluke features an elegant gray color. This sleek design makes it effortless to blend with other cables and hardware. With a length of 1000ft, this cable is an ideal choice for office buildings, data centers, and various large - scale networking environments. Whether you are linking computers, routers, switches, or other networking equipment, the Cat5e FTP 24AWG 0.515mm Bara Copper Gray Jacket LSZH Cable Pass Fluke offers reliable and high - performance connectivity.

Technical Parameters:

Product Name Cat5e FTP 24AWG 0.515mm Bare Copper Gray Jacket LSZH Cable Pass Fluke
Length 1000ft
Color Gray
Frequency 100MHz
Conductor Size 24 AWG
Jacket Material PVC
Conductor Material Copper
Cable Type FTP
Certifications UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Product Description:

Cat5e FTP 24AWG 0.515mm Bare Copper Gray Jacket LSZH Cable Pass Fluke
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 0.90 ± 0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.20 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω
2p: white + 2 orange stripes & orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥12 MPa
2p: S=17.5 mm (24%)) elongation after aging ≥ 150 %
3p: S=22.0 mm (32%) tensile strength after aging ≥10.5 MPa
4p: S=15.5 mm (21%)

jacket

 elongation before aging ≥ 125 %
OD / tensile strength before aging ≥ 12 MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 100 %
Direction according to the drawing tensile strength after aging ≥ 100 MPa
Filler / Packing
OD / Drum NA
Filler Ripcord 300D Master Carton NA
Drain Wire Tinned Copper

Outside Shield

 Shield Shield
Construction /
Material Polyester/Aluminium (PET/ALU)
Coverage ≥ 115%

Jacket

 Material LSZH, 60P, -20~75℃
Hardness 81 ± 3
OD 5.2 ± 0.15
Average THK 0.45 ~ 0.55

Color

 Gray
Marking Color black
Marking

according to the customer's

requirements

Electrical Properties
Conductor Resistance at 20°C NF EN 50289-1-2 / IEC 60189-1 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair NF EN 50289-1-2/ IEC 60708 ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

NF EN 50289-1-3 / IEC 61196-1-105

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

NF EN 50289-1-4 / IEC 60885-1

>1500 MΩ / 100m
Mutual capacitance NF EN 50289-1-5 /IEC 60189-1 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz NF EN 50289-1-5 / IEC 60189-1 ≤ 160 pF / 100m
Characteristic impedance at 100MHz NF EN 50289-1-11/ IEC 61156-1 100 ± 15 Ω
Spark Test UL444 2000 ± 250VOC

Transmission Properties
CAT5e ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013

No.

Frequency

Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11
12
13
14
Remarks: ＊ are the reference values

Applications:

1.The Cat5e FTP 24AWG 0.515mm Bare Copper Gray Jacket LSZH Cable Pass Fluke is highly suitable for a wide range of settings. Offices, schools, and homes can all benefit from its use. It serves as an excellent medium for connecting computers, servers, switches, routers, and other devices to a network. Thanks to its shielded design, interference and noise are significantly reduced, thus ensuring the clear and accurate transmission of data.


2.This cable is also perfect for applications demanding high - security levels, such as those in government agencies, financial institutions, and healthcare facilities. The shielding of the Cat5e FTP 24AWG 0.515mm Bare Copper Gray Jacket LSZH Cable Pass Fluke effectively prevents data from being intercepted or compromised.


3.The Cat5e FTP 24AWG 0.515mm Bare Copper Gray Jacket LSZH Cable Pass Fluke is certified by UL, ETL, and RoHS, which guarantees that it adheres to the highest quality and safety standards. Whether you are establishing a new network or enhancing an existing one, this cable is an outstanding option. Its high - quality construction and reliable performance make it a reliable choice for any data transfer requirements.


4.To sum up, the Cat5e FTP 24AWG 0.515mm Bare Copper Gray Jacket LSZH Cable Pass Fluke is an excellent choice for anyone seeking a reliable, high - performance data cable. Whether you are setting up a new network or upgrading an old one, this cable will undoubtedly meet your needs. Its shielded design, high - quality construction, and certifications make it a dependable solution for any application.

0.515mm Bare Copper Gray Jacket LSZH Cable Pass Fluke 24AWG FTP CAT5E Cable

FAQ

UL/CE/RoHS/ETL/CPR Certificate Shielded Lan cable Cat5e F/UTP 24AWG LSZH Bare Pass Fluke

Q1: What is the model number of the cable?

A: The model number of the cable is ITI-CT5F-014.

Q2. Can I order samples of Lan cables?

A: Yes, we welcome sample order to test and check quality.

Q3. What about the lead time?

A: 3-5 days for Sample preparing ,15-45 days for mass production.

Q4: What is the maximum length of the cable?

A: The maximum length of the cable is about 305 meters.

Q5. Do you have a minimum order quantity limit for network cable orders?

A: Low MOQ, 1000PCS for sample checking is available.

Q6. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea, which usually takes about 7 days to arrive.

Q7. How to proceed an order for network cable?

A: 1. Firstly let us know your requirements or application.

2. Secondly We quote according to your requirements or our suggestions.

3. Thirdly customer confirms the samples and places deposit for formal order.

4. Fourthly We arrange the production.
