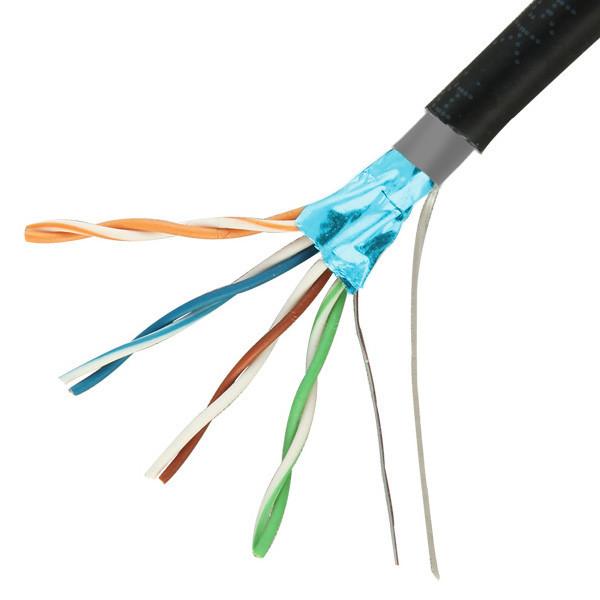

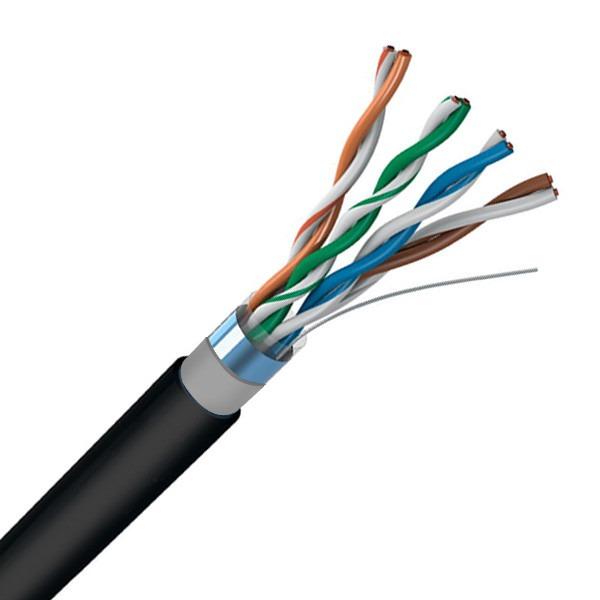

Outdoor CAT5E FTP PE+PVC Cable 0.50mm Bare Copper Black Solid 1000ft
Outdoor CAT5E FTP PE+PVC Cable 0.50mm Bare Copper Black Solid 1000ft
Outdoor CAT5E FTP PE+PVC Cable 0.50mm Bare Copper Black Solid 1000ft
Outdoor CAT5E FTP PE+PVC Cable 0.50mm Bare Copper Black Solid 1000ft
Outdoor CAT5E FTP PE+PVC Cable 0.50mm Bare Copper Black Solid 1000ft
Outdoor CAT5E FTP PE+PVC Cable 0.50mm Bare Copper Black Solid 1000ft
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT5F-012
Place of Origin :
shenzhen
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
MOQ :
1000pcs
Delivery Time :
15-45Days
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Packaging Details :
Color Box+Packing Box 36*36*21cm
Cable Type :
FTP
Jacket Material :
PE+PVC
Certifications :
UL, ETL, RoHSUL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Color :
Gray
Frequency :
100MHz
Length :
1000ft
Conductor Material :
Copper
Conductor Size :
24 AWG
Description

CAT5E FTP Outdoor PE+PVC Cable 0.50mm Bare Copper BLACK Solid 1000FT

Product Description:

1.With a solid 0.50mm bare Copper Conductor Material, this CAT5E FTP Outdoor 24AWG cable ensures optimal conductivity and signal transfer to meet your high - speed networking demands. The 24 AWG Conductor Size with a 0.50mm diameter is perfect for supporting higher bandwidth applications such as video streaming, online gaming, and large file transfers.


2.Measuring 1000Ft in length, this CAT5E FTP cable is ideal for larger networking projects, especially those in outdoor environments. It ensures you have ample cable length to cover your extensive wiring needs. Plus, the FTP (Foil Twisted Pair) shielding combined with the outdoor - friendly PE + PVC jacket provides added protection against external noise, interference, and harsh environmental conditions, ensuring a stable and secure connection.


3.As for certifications, this CAT5E FTP 24AWG 1000Ft 0.50mm Bare Copper Gray Solid Outdoor PE + PVC Cable is UL, ETL, and RoHS certified. This assures you that this product has undergone rigorous testing to meet industry standards for safety, quality, and environmental compliance.


4.In summary, the CAT5E FTP 0.50mm Bare Copper Outdoor PE + PVC Cable is an excellent choice for your outdoor networking requirements. With its exceptional shielding, durable bare copper conductor material, and 1000 - foot length, along with the reliable PE + PVC protection, you can be sure to enjoy high - speed and reliable connectivity for all your internet and networking needs in outdoor settings.

Technical Parameters:

Product Attribute Value
Product Name CAT5E FTP 0.50mm Bare Copper Outdoor PE+PVC Cable
Color Black
Length 1000ft
Conductor Material Copper
Frequency 100MHz
Cable Type FTP
Jacket Material PE+PVC
Certifications UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Conductor Size 24 AWG
Product Type CAT5E FTP Outdoor Cable

Product Description:

CAT5E FTP 0.50mm Bare Copper Outdoor PE+PVC Cable
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 0.88 ± 0.05 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.21 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω

2p: white + 2 orange stripes &

orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥16 MPa
2p: S=17.5 mm (24%)) elongation after aging NA
3p: S=22.0 mm (32%) tensile strength after aging NA
4p: S=15.5 mm (21%)

jacket

 elongation before aging ≥350%
OD / tensile strength before aging ≥9.7MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥263%
Direction according to the drawing tensile strength after aging ≥7.3MPa
Filler / Packing
OD / Inner Box NA
Filler Material Ripcord Master Carton NA
Construction 250D*3

Outside Shield

 Shield Shield
Construction /
Material Polyester/Aluminium (PET/ALU)
Coverage ≥ 115%

Jacket

 Material Inner Jacket: PVC + Outside Jacket: PE
Hardness 30
OD 4.8 / 6.2
Average THK 0.45 ~ 0.55

Color

 Black

Marking Color

 according to the customer's requirements
Marking according to the customer's requirements

Electrical Properties
Conductor Resistance at 20°C

UL 444 & CSA C22.2 No. 214

 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
Mutual capacitance 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m
Characteristic impedance at 100MHz 100 ± 15 Ω
Spark Test 2000 ± 250VOC

Transmission Properties
CAT5e F/UTP

No.

Frequency

Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11
12
13
14
Remarks: ＊ are the reference values

Applications:

1.The CAT5E FTP 1000Ft 0.50mm Bare Copper Gray Solid Outdoor PE + PVC Cable, similar to the reliable ITI - CT5F - 012 FTP CAT5E LAN Cable, is manufactured in SHENZHEN. This origin ensures it adheres to high - quality standards, making it a top - notch choice for various networking needs. With a length of 1000Ft, it is perfectly suited for larger installations where extended cable runs are necessary, such as in sprawling outdoor industrial complexes or large - scale outdoor event venues.


2.Equipped with a 24AWG 0.50mm bare copper conductor, this cable can support a frequency of 100MHz. This enables it to transmit data swiftly and efficiently, making it an excellent option for high - speed networking applications even in outdoor environments where reliable connectivity is crucial.


3.The gray solid Outdoor PE + PVC jacket of this cable is not only durable but also flexible. It can withstand the harsh conditions of outdoor use, including exposure to sunlight, moisture, and temperature variations, without succumbing to wear and tear or breaking down. Moreover, it is designed for easy installation, which is a great advantage for those who need to set up their outdoor network quickly and with minimal hassle.


4.Whether you're establishing a small home outdoor network for garden surveillance or a large - scale business outdoor installation for a factory campus or a commercial outdoor event area, the CAT5E FTP 24AWG 1000Ft 0.50mm Bare Copper Gray Solid Outdoor PE + PVC Cable is an outstanding choice. It is highly reliable, offering consistent performance in different outdoor scenarios. Its versatility allows it to meet the diverse needs of a wide range of users.

So, if you're in search of a high - quality outdoor network cable that will effectively fulfill your networking requirements, be sure to take a closer look at the CAT5E FTP 24AWG 1000Ft 0.50mm Bare Copper Gray Solid Outdoor PE + PVC Cable today.

Outdoor CAT5E FTP PE+PVC Cable 0.50mm Bare Copper Black Solid 1000ft

FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is ITI-LINK.

Q: What is the model number of this product?

A: The model number of this product is ITI-CT5F-012.

Q: Where is this product manufactured?

A: This product is manufactured in Shenzhen.

Q: What is the maximum length of this FTP Cat5e cable?

A: The maximum length of this FTP Cat5e cable is 1000FT.

Q: What is the main purpose of this Cat5e outdoor FTP cable?

A: This Cat5e outdoor FTP cable is mainly used for outdoor wiring and in places where external electromagnetic signals need to be shielded.
