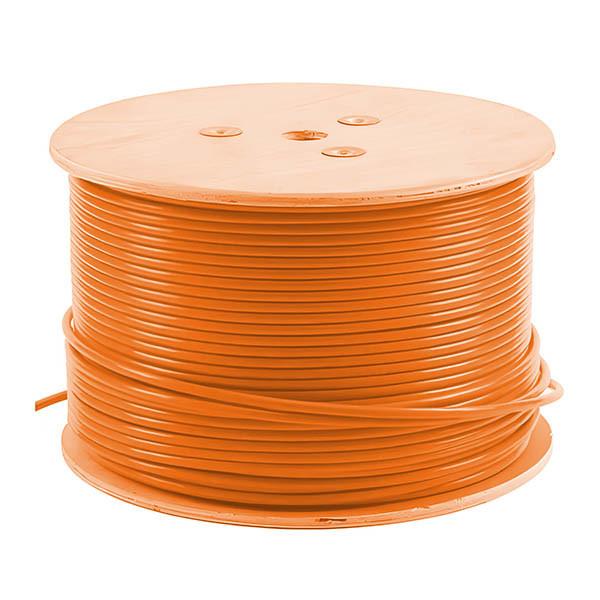

0.55mm Bare Capper Cat5e FTP 24AWG Orange PVC Cable Pass Fluke
0.55mm Bare Capper Cat5e FTP 24AWG Orange PVC Cable Pass Fluke
0.55mm Bare Capper Cat5e FTP 24AWG Orange PVC Cable Pass Fluke
0.55mm Bare Capper Cat5e FTP 24AWG Orange PVC Cable Pass Fluke
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT5F-009
Place of Origin :
SHENZHEN
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Delivery Time :
15-45Days
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
1500pcs/day
Packaging Details :
Color Box+Packing Box 38*38*24cm
Certifications :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Conductor Material :
Copper
Color :
Orange
Jacket Material :
PVC
Length :
1000ft
Frequency :
100MHz
Cable Type :
FTP
Conductor Size :
24 AWG 0.55±0.005mm
Description

Cat5e FTP 24AWG 0.55±0.005mm Bare Capper Orange PVC Cable Pass Fluke

Product Description:

1.Our FTP CAT5E Shielded Cable is certified by UL, ETL, and RoHS, giving you peace of mind that you are purchasing a quality product that meets industry standards. The 24 AWG conductor size is optimal for minimizing signal attenuation and ensuring a stable connection.

2.The PVC jacket material provides durability and protection against wear and tear, making it suitable for both indoor and outdoor use. The copper conductor material is of the highest quality, ensuring that you get the best performance out of your network.

3.Whether you are a business owner or a homeowner, our Shielded CAT5E FTP Cable is the perfect solution for all your networking needs. It is easy to install and is compatible with all standard RJ45 connectors, making it a versatile choice for any network setup.

4.Invest in our FTP CAT5E Network Cable today and enjoy fast, reliable, and secure data transfer speeds. With our Shielded CAT5E FTP Cable, you can rest assured that your network is protected from interference and signal loss, ensuring a smooth and uninterrupted connection.

Technical Parameters:

Product Cat5e FTP 24AWG 0.55mm Bare Capper Orange PVC Cable Pass Fluke
Frequency 100MHz
Color Blue
Certifications UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Conductor Size 24 AWG
Length 1000ft
Conductor Material Copper
Cable Type FTP
Jacket Material PVC
Product Description This FTP CAT5E Cable is a high-performance data, network, and LAN cable designed for use in professional installations. It features a frequency of 100MHz, a Blue color, UL, ETL, and RoHS certifications, a conductor size of 24 AWG, a length of 1000ft, a copper conductor material, an FTP cable type, and a PVC jacket material.

Product Description:

Cat5e FTP 24AWG 0.55mm Bare Capper Orange PVC Cable Pass Fluke
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 0.90 ± 0.02 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.20 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω
2p: white + 2 orange stripes & orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥12 MPa
2p: S=17.5 mm (24%)) elongation after aging ≥ 150 %
3p: S=22.0 mm (32%) tensile strength after aging ≥10.5 MPa
4p: S=15.5 mm (21%)

jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
Filler / Packing
OD / Drum NA
Filler Ripcord 300D Master Carton NA
Drain Wire Tinned Copper

Outside Shield

 Shield Shield
Construction /
Material Polyester/Aluminium (PET/ALU)
Coverage ≥ 115%

Jacket

 Material PVC, 60P, -20~75℃
Hardness 81 ± 3
OD 4.8 ± 0.2
Average THK 0.45 ~ 0.55

Color

 Orange
Marking Color black
Marking

according to the customer's

requirements

Electrical Properties
Conductor Resistance at 20°C NF EN 50289-1-2 / IEC 60189-1 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair NF EN 50289-1-2/ IEC 60708 ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

NF EN 50289-1-3 / IEC 61196-1-105

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

NF EN 50289-1-4 / IEC 60885-1

>1500 MΩ / 100m
Mutual capacitance NF EN 50289-1-5 /IEC 60189-1 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz NF EN 50289-1-5 / IEC 60189-1 ≤ 160 pF / 100m
Characteristic impedance at 100MHz NF EN 50289-1-11/ IEC 61156-1 100 ± 15 Ω
Spark Test UL444 2000 ± 250VOC

Transmission Properties
CAT5e ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013

No.

Frequency

Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11
12
13
14
Remarks: ＊ are the reference values

Applications:

1.The FTP CAT5E Internet Cable is shielded to reduce interference from external sources, making it ideal for use in areas with high levels of electromagnetic interference. The PVC jacket material offers excellent protection against environmental factors, such as moisture and temperature variations, ensuring that the cable remains in optimal condition throughout its lifespan.

2.This 1000ft FTP CAT5E Shielded Cable is made with high-quality copper conductors that provide exceptional performance and durability. Whether you are setting up a home network, connecting multiple devices in an office environment, or installing a large-scale network infrastructure, ITI-LINK's FTP CAT5E Internet Cable is the perfect choice.

3.The Shielded CAT5E FTP Cable is suitable for a wide range of applications, including connecting computers, printers, routers, switches, and other network devices. It is also ideal for use in industrial environments, where the network infrastructure is exposed to harsh conditions that can damage unprotected cables.

4.Whether you are a home user, a small business owner, or a network administrator responsible for maintaining a large-scale network, ITI-LINK's FTP CAT5E Shielded Cable is the perfect solution for your networking needs. With its high-quality construction, reliable performance, and exceptional durability, this FTP CAT5E Internet Cable is sure to provide years of trouble-free operation.

0.55mm Bare Capper Cat5e FTP 24AWG Orange PVC Cable Pass Fluke

FAQ:

Q: What is the brand name of the FTP CAT5E CABLE?

A: The brand name of this product is ITI-LINK.

Q: What is the model number of the FTP CAT5E CABLE?

A: The model number of this product is ITI-CT5F-009.

Q: Where is the FTP CAT5E CABLE manufactured?

A: This product is manufactured in SHENZHEN.

Q: What is the maximum length of the ITI-CT5F-009 FTP CAT5E CABLE?

A: The maximum length of this cable is 1000Ft.

Q: What is the difference between FTP and UTP CAT5E CABLE?

A: FTP cable has an overall shield that protects the twisted pairs of wires inside the cable. UTP (Unshielded Twisted Pair) cable has no shielding and relies on the twisting of the pairs to reduce interference.
