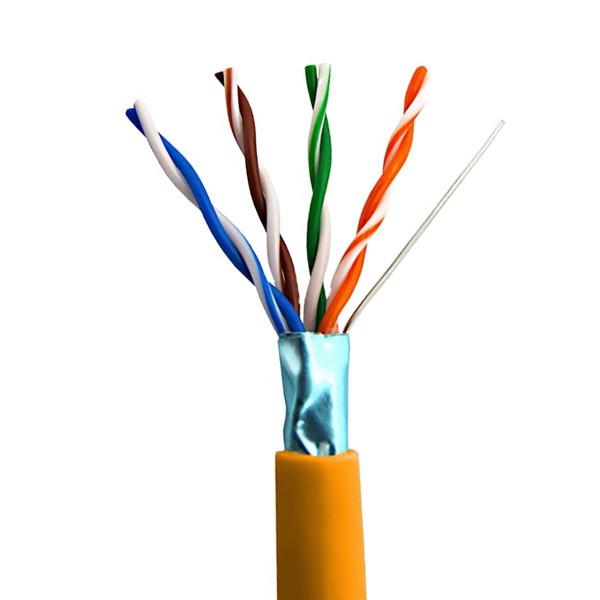

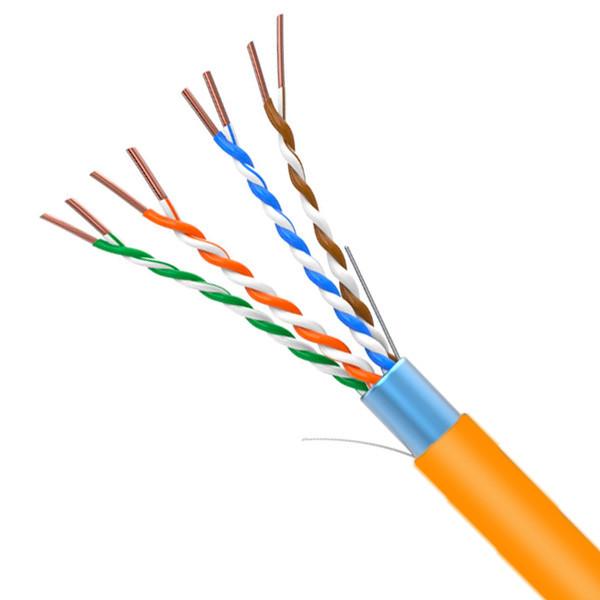

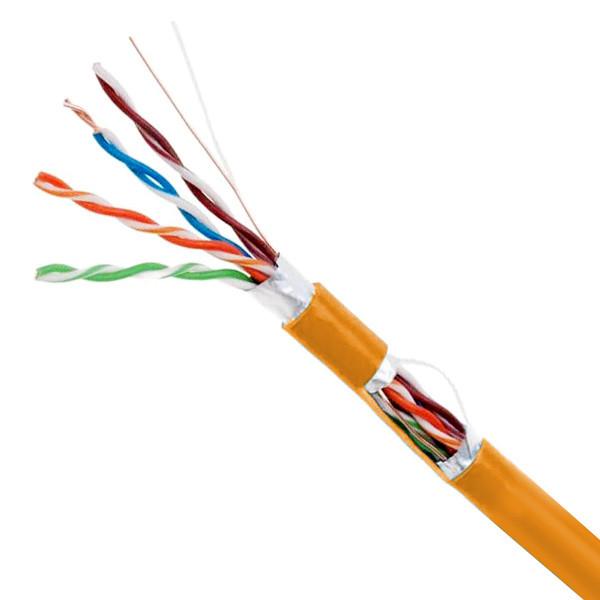

Cat5e FTP LSZH Network Cable 0.50mm 100% Copper Orange 1000FT
Cat5e FTP LSZH Network Cable 0.50mm 100% Copper Orange 1000FT
Cat5e FTP LSZH Network Cable 0.50mm 100% Copper Orange 1000FT
Cat5e FTP LSZH Network Cable 0.50mm 100% Copper Orange 1000FT
Cat5e FTP LSZH Network Cable 0.50mm 100% Copper Orange 1000FT
Cat5e FTP LSZH Network Cable 0.50mm 100% Copper Orange 1000FT
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT5F-010
Place of Origin :
SHENZHEN
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Delivery Time :
15-45Days
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Packaging Details :
Color Box+Packing Box 36*36*21cm
Color :
Orange
Frequency :
100MHz
Conductor Material :
Copper
Conductor Size :
24 AWG
Length :
1000ft
Jacket Material :
LSZH
Cable Type :
FTP
Certifications :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Description

Cat5e FTP LSZH Network Cable 0.50mm 100% Copper Orange 1000FT

Product Description:

1.The Cat5e FTP LSZH Network Cable 0.50mm Copper Orange is meticulously designed to adhere to the highest industry standards. It is certified by a series of authoritative organizations, including UL, ETL, and RoHS. This comprehensive certification guarantees that the cable is not only completely safe during usage but also fully complies with all relevant regulatory requirements. The UL certification, as a renowned safety standard, ensures that the cable satisfies specific safety benchmarks. The ETL certification further validates that the cable meets the industry - defined performance and safety norms. The RoHS certification assures that the cable is free from any harmful substances, thus being environmentally friendly.


2.The Cat5e FTP LSZH Network Cable is a type of advanced twisted - pair cable. It consists of two or more pairs of wires that are precisely twisted together. This twisting configuration is crucial as it effectively minimizes interference and crosstalk. These issues, if left unaddressed, could lead to significant data loss and a substantial reduction in data transfer speed. What sets this cable apart is its unique FTP (Foil Twisted Pair) design. It features an overall foil shield that offers enhanced protection against electromagnetic interference and crosstalk. This remarkable feature makes it particularly suitable for applications in environments where there is a high prevalence of electromagnetic disturbances, such as in industrial areas or areas with dense electronic equipment.


3.The Cat5e FTP LSZH Network Cable is engineered to be highly versatile and can be utilized in a wide range of applications. It is an excellent choice for various networking scenarios, including home networking setups, office network infrastructures, and large - scale data centers. It can seamlessly connect an array of devices such as computers, printers, routers, switches, and other networking equipment. Installation of this cable is a straightforward process, thanks to its user - friendly design.

4.Moreover, the connectors provided with the cable are fully compatible with standard RJ45 jacks. Additionally, this cable exhibits backward compatibility with both Cat5 and Cat3 standards, which further enhances its flexibility and makes it an ideal option for numerous different networking requirements.


5.In summary, the Cat5e FTP LSZH Network Cable is specifically crafted to ensure fast, stable, and reliable data transmission over extensive distances. The cable is constructed with high - quality copper conductors of 24AWG and 0.50mm diameter, which are renowned for their excellent electrical conductivity. The cable is sheathed in an orange LSZH (Low Smoke Zero Halogen) jacket. This type of jacket material not only provides robust protection but also has the advantage of producing low smoke and no halogen when exposed to fire, enhancing safety. With a length of 1000 feet, this cable offers great flexibility in installation. Certified by UL, ETL, and RoHS, it meets the most stringent quality and safety standards. The FTP design with its foil shield effectively combats interference and crosstalk, making it an outstanding and versatile cable for a diverse range of applications in the networking domain.

Technical Parameters:

Product Name Cat5e FTP 24AWG 1000Ft 0.50mm Copper Orange LSZH Jacket Network Cable
Cable Type FTP CAT5E Data Cable
Jacket Material LSZH
Conductor Material Copper
Color Orange
Certifications UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Frequency 100MHz
Length 1000ft
Conductor Size 24 AWG

Product Description:

Cat5e FTP 24AWG 1000Ft 0.50mm Copper Orange LSZH Jacket Network Cable
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 0.90 ± 0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.20 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω
2p: white + 2 orange stripes & orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥12 MPa
2p: S=17.5 mm (24%)) elongation after aging ≥ 150 %
3p: S=22.0 mm (32%) tensile strength after aging ≥10.5 MPa
4p: S=15.5 mm (21%)

jacket

 elongation before aging ≥ 125 %
OD / tensile strength before aging ≥ 12 MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 100 %
Direction according to the drawing tensile strength after aging ≥ 100 MPa
Filler / Packing
OD / Drum NA
Filler Ripcord 300D Master Carton NA
Drain Wire Tinned Copper

Outside Shield

 Shield Shield
Construction /
Material Polyester/Aluminium (PET/ALU)
Coverage ≥ 115%

Jacket

 Material LSZH, 60P, -20~75℃
Hardness 81 ± 3
OD 5.2 ± 0.15
Average THK 0.45 ~ 0.55

Color

 Orange
Marking Color black
Marking

according to the customer's

requirements

Electrical Properties
Conductor Resistance at 20°C NF EN 50289-1-2 / IEC 60189-1 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair NF EN 50289-1-2/ IEC 60708 ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

NF EN 50289-1-3 / IEC 61196-1-105

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

NF EN 50289-1-4 / IEC 60885-1

>1500 MΩ / 100m
Mutual capacitance NF EN 50289-1-5 /IEC 60189-1 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz NF EN 50289-1-5 / IEC 60189-1 ≤ 160 pF / 100m
Characteristic impedance at 100MHz NF EN 50289-1-11/ IEC 61156-1 100 ± 15 Ω
Spark Test UL444 2000 ± 250VOC

Transmission Properties
CAT5e ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013

No.

Frequency

Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11
12
13
14
Remarks: ＊ are the reference values

Applications:

1.The FTP CAT5E LSZH Network Cable is ideal for use in a wide range of network applications and is a great fit for both residential and commercial applications. The cable is designed to meet the high-speed data transfer requirements of modern networks, with a frequency of up to 100MHz. The cable is suitable for use in both indoor and outdoor scenarios and can withstand harsh weather conditions.

2.The FTP CAT5E Data Cable is perfect for use in data centers and server rooms, where high-speed data transfer is essential. The cable is designed to provide reliable performance and is ideal for use in mission-critical applications. The cable is also suitable for use in home networks, where it can be used to connect various devices such as computers, printers, and routers.

3.The FTP CAT5E Patch Cord is an essential component for any network setup. The cable is designed to connect two devices, such as a computer and a router, and provides high-speed data transfer between the two devices. The cable is ideal for use in both residential and commercial scenarios, and its UL, ETL, and RoHS certifications ensure that it meets the highest quality standards.

Cat5e FTP LSZH Network Cable 0.50mm 100% Copper Orange 1000FT

FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is ITI-LINK.

Q: What is the model number of this product?

A: The model number of this product is ITI-CT5F-010.

Q: Where is this product manufactured?

A: This product is manufactured in SHENZHEN.

Q: What type of cable is this?

A: This is an FTP CAT5E CABLE.

Q: What is the length of this cable?

A: The length of this cable varies and can be selected at the time of purchase.
