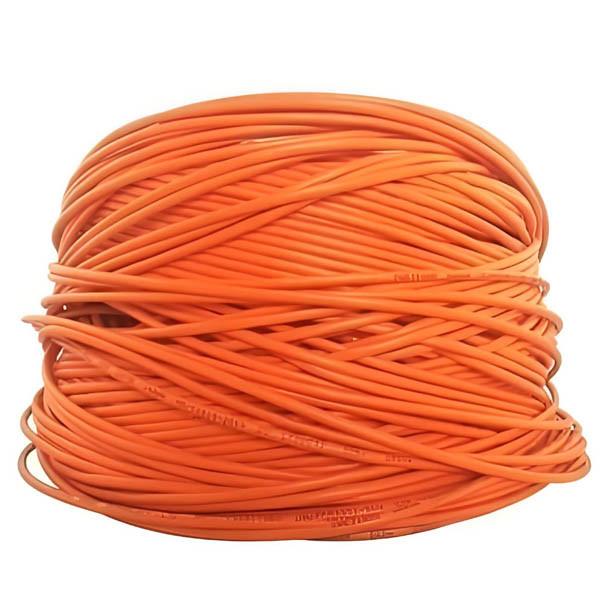

1000FT Cat5e UTP Extend To 350MHz Orange PVC Copper High Speed Network Cable
1000FT Cat5e UTP Extend To 350MHz Orange PVC Copper High Speed Network Cable
1000FT Cat5e UTP Extend To 350MHz Orange PVC Copper High Speed Network Cable
1000FT Cat5e UTP Extend To 350MHz Orange PVC Copper High Speed Network Cable
1000FT Cat5e UTP Extend To 350MHz Orange PVC Copper High Speed Network Cable
1000FT Cat5e UTP Extend To 350MHz Orange PVC Copper High Speed Network Cable
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CABLE-001
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Place of Origin :
shenzhen
MOQ :
1000pcs
Price :
$50-100/PCS
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Packaging Details :
Color Box+Packing Box 36*36*21cm
Delivery Time :
15-45Days
Color :
Orange
Data Transfer Rate :
100 Mbps
Length :
1000 ft
Jacket Material :
PVC
Frequency :
100 MHz
Application :
100Base-TX/100Base-T4/100VG-AnyLan/ATM
Cable Type :
U/UTP
Conductor Size :
24 AWG
Certifications :
UL, ETL, RCM, CPR, CSA, CE, RoHS
Conductor aMaterial :
Bare Copper
Description

Cat5e UTP Extend To 350MHz Orange PVC Copper High Speed Network Cable 1000FT

Description:

>This Category 5e Ethernet cable provides 100MHz bandwidth and a transmission rate of 100Mbps within a distance of 90 meters. And the product has passed TIA-568.2-D CAT5e Perm.link 90M.

>This Category 5e twisted pair cable is suitable for indoor horizontal workspace cabling and indoor LAN cabling, meeting and significantly exceeding the specifications of Category 5e systems.

>This Category 5e product uses high-quality oxygen free copper as the transmission conductor. The electrical transmission performance is reliable and excellent.

· Bare solid copper conductor

· 100MHz

· RoHs/REACH Complied PVC Jacket

· Rate temperature:60℃ 75℃

· InstallationTemperature: -30℃-+50℃

· CompliestoANSI/TIA-568-B.2&IS0/EC11801

· CE, RoHS, TUV, UL compliant, CPR, ETL, RCM, ISO9001

Specifications:

Product Description: Cat 5e UTP 4 X 2 X 24AWG PVC
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 0.82 ± 0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.19 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω
2p: white + 2 orange stripes & orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥12 MPa
2p: S=17.5 mm (24%)) elongation after aging ≥ 150 %
3p: S=22.0 mm (32%) tensile strength after aging ≥10.5 MPa
4p: S=15.5 mm (21%)

jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
Filler / Packing
OD / Inner Box NA
Filler Material Ripcord Master Carton NA
Construction 300D

Outside Shield

 Shield /
Construction /
Material /
Coverage /

Jacket

 Material PVC, 45P, -20~75℃
Hardness 81 ± 3
OD 4.8 ± 0.2
Average THK 0.40 ~ 0.50

Color

 Orange
Marking Color

Black
Marking

according to the customer's

requirements

Electrical Properties
Conductor Resistance at 20°C NF EN 50289-1-2 / IEC 60189-1 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair NF EN 50289-1-2/ IEC 60708 ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

NF EN 50289-1-3 / IEC 61196-1-105

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

NF EN 50289-1-4 / IEC 60885-1

>1500 MΩ / 100m
Mutual capacitance NF EN 50289-1-5 /IEC 60189-1 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz NF EN 50289-1-5 / IEC 60189-1 ≤ 160 pF / 100m
Characteristic impedance at 100MHz NF EN 50289-1-11/ IEC 61156-1 100 ± 15 Ω
Spark Test UL444 2000 ± 250VOC

Transmission Properties
CAT5e ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013
Frequency Attenuation (Max) Propagation Delay Propagation Delay Skew Return Loss (Min)

NEXT

(Min)

 PS NEXT (Min) EL-FEXT (Min) PS EL-FEXT (Min)
(MAX) (MAX)
No. MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11 *150 18.66 538.55 45 19.78 35.6 32.6 30.02 22.2
12 *200 19.56 540.44 45 20.36 36.45 36.58 36.04 23.06
13 *250 21.98 536.66 45 21.8 35.36 35.36 27 25.08
14 *300 20.52 541.25 45 23.64 34.48 32.3 28.08 21
15 *350 23.35 542.07 45 22.1 36.45 34.2 24 22.36
Remarks: ＊ are the reference values

Notices:

1. Open the packaging, check the products carefully, and take them gently.

2. Please strictly follow the wiring standards during construction, and do not tie or excessively bend the network cables.

3. When making RJ45 network cable connectors, please follow the T568B or T568A standards to ensure the correct wire sequence and avoid problems such as disconnected lines or unstable network connections.

4.It is best to use a single network cable at a distance of no more than 100 meters to ensure optimal transmission performance.

5. Ensure that the shielded network cable is grounded during installation.

Applications:

Widely used in office buildings, schools, research institutions, airports, high-speed trains, hospitals, hotels, industries, shopping malls, supermarkets, etc.

1000FT Cat5e UTP Extend To 350MHz Orange PVC Copper High Speed Network Cable

FAQ

UL/CE/RoHS/ETL/CPR Certificate Lan cable Cat5e U/UTP 24AWG Extend To 350MHz PVC Bare Solid Copper

Q1. Can I order samples of Lan cables?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: 3-5 days for Sample preparing ,8-10 working days for mass production.

Q3. Do you have a minimum order quantity limit for network cable orders?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea, which usually takes about 7 days to arrive.

Q5. How to proceed an order for network cable?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6.Is it OK to print my logo on network cable product?

A: Yes. Please inform us formally before our production.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 10 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, for individual defective products, we will remedy them as soon as possible and send them to you, or we can discuss solutions based on the actual situation to achieve 100% satisfaction for you.
