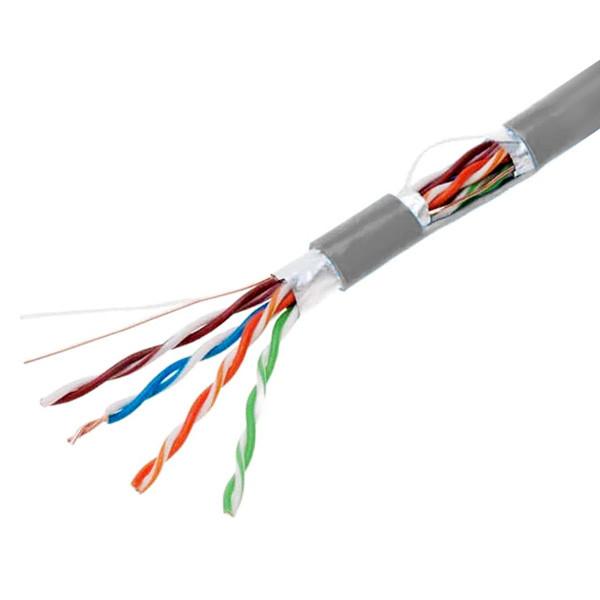

0.47mm Copper Grey Jacket 1000Ft Cat5e FTP LSZH Network Cable
0.47mm Copper Grey Jacket 1000Ft Cat5e FTP LSZH Network Cable
0.47mm Copper Grey Jacket 1000Ft Cat5e FTP LSZH Network Cable
0.47mm Copper Grey Jacket 1000Ft Cat5e FTP LSZH Network Cable
0.47mm Copper Grey Jacket 1000Ft Cat5e FTP LSZH Network Cable
0.47mm Copper Grey Jacket 1000Ft Cat5e FTP LSZH Network Cable
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT5F-006
Place of Origin :
SHENZHEN
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Delivery Time :
15-45Days
Packaging Details :
Color Box+Packing Box 38*38*24cm
Length :
1000ft
Jacket Material :
LSZH
Frequency :
100MHz
Certifications :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Conductor Material :
Copper
Conductor Size :
24 AWG
Cable Type :
FTP
Color :
Gray
Description

Cat5e FTP LSZH Network Cable 0.47mm Copper Grey Jacket 1000FT

Product Description:

1.The Cat5e shielded LSZH cable is a high - performance network transmission cable. It adopts a shielding design to effectively reduce electromagnetic interference and ensure stable and high - speed data transmission.


2. Meanwhile, this cable has the characteristics of LSZH. In case of combustion or high - temperature conditions, it generates very little smoke and toxic gases, being safe and environmentally friendly. It is suitable for places with high requirements for fire safety and data transmission.

3. This FTP CAT5E Internet Cable is designed for use in high-speed Ethernet networks with a frequency of up to 100MHz. Its LSZH jacket material provides added protection against physical damage, making it a durable solution for your networking needs. The FTP CAT5E Shielded Cable is suitable for a wide range of applications, including data centers, server rooms, and other high-speed networking environments.

4. Whether you need to connect your computer to a router, switch, or other network device, the FTP CAT5E Shielded Cable is the perfect solution. Its shielded design provides superior performance in noisy environments, making it an ideal choice for businesses and individuals alike. With its high-quality construction, this cable is built to last and provides reliable performance for years to come.

Technical Parameters:

Product Name Cat5e FTP 24AWG 0.47mm Copper Grey LSZH Jacket 1000Ft Network Cable
Cable Type FTP
Cable Length 1000ft
Cable Color Gray
Frequency 100MHz
Jacket Material LSZH
Conductor Material Copper
Conductor Size 24 AWG
Certifications UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Product Description:

Cat5e FTP 24AWG 0.47mm Copper Grey LSZH Jacket 1000Ft Network Cable

Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 0.90 ± 0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.20 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω
2p: white + 2 orange stripes & orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥12 MPa
2p: S=17.5 mm (24%)) elongation after aging ≥ 150 %
3p: S=22.0 mm (32%) tensile strength after aging ≥10.5 MPa
4p: S=15.5 mm (21%)

jacket

 elongation before aging ≥ 125 %
OD / tensile strength before aging ≥ 12 MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 100 %
Direction according to the drawing tensile strength after aging ≥ 100 MPa
Filler / Packing
OD / Drum NA
Filler Ripcord 300D Master Carton NA
Drain Wire Tinned Copper

Outside Shield

 Shield Shield
Construction /
Material Polyester/Aluminium (PET/ALU)
Coverage ≥ 115%

Jacket

 Material LSZH, 60P, -20~75℃
Hardness 81 ± 3
OD 5.2 ± 0.15
Average THK 0.45 ~ 0.55

Color

 Grey
Marking Color black
Marking

according to the customer's

requirements

Electrical Properties
Conductor Resistance at 20°C NF EN 50289-1-2 / IEC 60189-1 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair NF EN 50289-1-2/ IEC 60708 ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

NF EN 50289-1-3 / IEC 61196-1-105

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

NF EN 50289-1-4 / IEC 60885-1

>1500 MΩ / 100m
Mutual capacitance NF EN 50289-1-5 /IEC 60189-1 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz NF EN 50289-1-5 / IEC 60189-1 ≤ 160 pF / 100m
Characteristic impedance at 100MHz NF EN 50289-1-11/ IEC 61156-1 100 ± 15 Ω
Spark Test UL444 2000 ± 250VOC

Transmission Properties
CAT5e ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013

No.

Frequency

Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11
12
13
14
Remarks: ＊ are the reference values

Applications:

1.The jacket material of this cable is made of durable LSZH, which provides excellent protection for the copper conductor inside. The conductor size is 24 AWG, which is perfect for transmitting data over long distances. The FTP CAT5E Shielded Cable is perfect for high-speed data transfer and is capable of transmitting data at speeds of up to 1Gbps.

2.This FTP CAT5E LAN Cable is perfect for use in scenarios where noise and interference are concerns. The shielded design of the cable ensures that data is transmitted with minimal interference. This makes it perfect for use in industrial settings or where there are a lot of electronic devices in close proximity.

3.The FTP CAT5E Ethernet Cable is also perfect for use in residential environments. It is ideal for use in home networks, where multiple devices need to be connected to the internet. This cable is also perfect for streaming media, online gaming, and other high-bandwidth applications.

4.Overall, the ITI-LINK FTP CAT5E Shielded Cable is a high-quality networking cable that is suitable for a wide range of applications. Its durability, speed, and shielding make it perfect for use in both commercial and residential settings.

0.47mm Copper Grey Jacket 1000Ft Cat5e FTP LSZH Network Cable

FAQ:

Q: What is the brand name of this FTP CAT5E cable?

A: The brand name of this cable is ITI-LINK.

Q: What is the model number of this cable?

A: The model number of this cable is ITI-CT5F-006.

Q: Where is this cable manufactured?

A: This cable is manufactured in SHENZHEN.

Q: What is the maximum transmission speed of this cable?

A: The maximum transmission speed of this cable is 1000Mbps.

Q: What is the length of this cable?

A: The length of this cable varies depending on the product option selected by the customer.

Q. Do you have a minimum order quantity limit for network cable orders?

A: Low MOQ, 1000PCS for sample checking is available.

Q. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea, which usually takes about 7 days to arrive.

Q. How to proceed an order for network cable?

A: 1. Firstly let us know your requirements or application.

2. Secondly We quote according to your requirements or our suggestions.

3. Thirdly customer confirms the samples and places deposit for formal order.

4. Fourthly We arrange the production.
