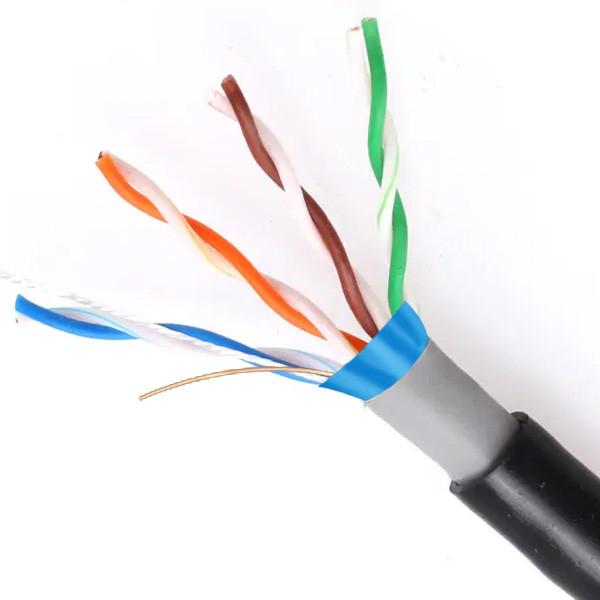

0.515mm Copper Solid Outdoor Black PE PVC Cable IEC61a156-5 CAT5E FTP 24AWG
0.515mm Copper Solid Outdoor Black PE PVC Cable IEC61a156-5 CAT5E FTP 24AWG
0.515mm Copper Solid Outdoor Black PE PVC Cable IEC61a156-5 CAT5E FTP 24AWG
0.515mm Copper Solid Outdoor Black PE PVC Cable IEC61a156-5 CAT5E FTP 24AWG
0.515mm Copper Solid Outdoor Black PE PVC Cable IEC61a156-5 CAT5E FTP 24AWG
0.515mm Copper Solid Outdoor Black PE PVC Cable IEC61a156-5 CAT5E FTP 24AWG
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT5F-016
Place of Origin :
shenzhen
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
MOQ :
1000pcs
Delivery Time :
15-45Days
Payment Terms :
T/T
Supply Ability :
1500pcs/day
Packaging Details :
Color Box+Packing Box 36*36*21cm
Conductor Material :
Copper
Certifications :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Cable Type :
FTP
Frequency :
100MHz
Conductor Size :
24 AWG
Length :
1000ft
Color :
BLACK
Jacket Material :
PE+PVC
Description

CAT5E FTP 24AWG 0.515mm Copper Solid Outdoor Black PE+PVC Cable IEC61156-5

Product Description:

1.The CAT5E FTP 24AWG 0.515mm Copper Solid Outdoor Black PE + PVC Cable IEC61156-5 is UL - certified, assuring that it meets all the industry - set safety standards. Besides the UL certification, this cable also holds ETL and RoHS certifications, highlighting its top - notch quality and reliability.


2.This CAT5E FTP 24AWG 0.515mm Copper Solid Outdoor PE + PVC Cable IEC61156-5 has a frequency of 100MHz, enabling it to transmit data at high velocities. This characteristic makes it perfect for applications demanding fast and efficient data transfer, like online gaming where split - second responses matter, video streaming for uninterrupted viewing, and file sharing for quick dissemination of large amounts of data.


3.The Cable is 24AWG, signifying that it's crafted from high - quality copper wire. This results in the cable having low resistance, allowing it to transmit data over long distances without signal loss or data corruption.


4.To sum up, the Cable is a premium Ethernet cable suitable for any network environment. Thanks to its UL, ETL, and RoHS certifications, you can be certain of its safety and reliability. Its blue PE+PVC jacket material gives it a stylish look and enhances its durability, especially in outdoor conditions. Along with its 100MHz frequency and 24 AWG conductor size, this cable guarantees fast and efficient data transfer. Whether you're a home user or a business, the Cable is an outstanding choice for your networking requirements.


Technical Parameters:

Product Attribute Value
Cable Type CAT5E FTP 24AWG 0.515mm Copper Solid Outdoor Blue PE+PVC Cable IEC61156-5
Product Name FTP CAT5E Solid Outdoo Cable
Color Blue
Frequency 100MHz
Jacket Material PE+PVC
Certifications UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Conductor Material Copper
Conductor Size 24 AWG
Length 1000ft

Product Description:

CAT5E FTP 24AWG 0.515mm Copper Solid Outdoor Black PE+PVC Cable IEC61a156-5
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 0.88 ± 0.05 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.21 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω

2p: white + 2 orange stripes &

orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥16 MPa
2p: S=17.5 mm (24%)) elongation after aging NA
3p: S=22.0 mm (32%) tensile strength after aging NA
4p: S=15.5 mm (21%)

jacket

 elongation before aging ≥350%
OD / tensile strength before aging ≥9.7MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥263%
Direction according to the drawing tensile strength after aging ≥7.3MPa
Filler / Packing
OD / Inner Box NA
Filler Material Ripcord Master Carton NA
Construction 250D*3

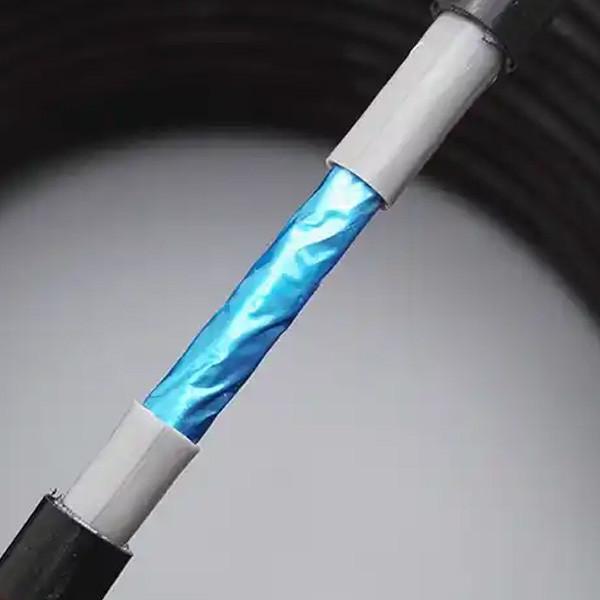

Outside Shield

 Shield Shield
Construction /
Material Polyester/Aluminium (PET/ALU)
Coverage ≥ 115%

Jacket

 Material Inner Jacket: PVC + Outside Jacket: PE
Hardness 30
OD 4.8 / 6.2
Average THK 0.45 ~ 0.55

Color

 Black

Marking Color

 according to the customer's requirements
Marking according to the customer's requirements

Electrical Properties
Conductor Resistance at 20°C

UL 444 & CSA C22.2

No. 214

 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
Mutual capacitance 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m
Characteristic impedance at 100MHz 100 ± 15 Ω
Spark Test 2000 ± 250VOC

Transmission Properties
CAT5e F/UTP Cable

No.

Frequency

Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11
12
13
14
Remarks: ＊ are the reference values

Applications:

1.Office Networks - The CAT5E FTP 24AWG 0.515mm Copper Solid Outdoor Black PE + PVC Cable IEC61156 - 5 is perfect for establishing a high - speed network within an office environment. This cable is capable of handling large - scale data transfers, making it an ideal choice for connecting computers, printers, and other network - enabled devices. Thanks to its top - notch construction and reliable performance, it has become an indispensable part of any modern office.


2.Home Networks - The CAT5E FTP 24AWG 0.515mm Copper Solid Outdoor Black PE + PVC Cable IEC61156 - 5 is also excellent for setting up a home network. Whether you're looking to connect your computer, gaming console, or smart TV, this cable can fulfill all your networking requirements. Its flexible and durable blue PE + PVC jacket allows for easy installation in any area of your home, even in outdoor spaces if necessary.


3.Server Rooms - The CAT5E FTP 24AWG 0.515mm Copper Solid Outdoor PE + PVC Cable IEC61156 - 5 is highly suitable for server rooms as well. The high - performance copper conductor of the cable, along with its 24 AWG 0.515mm conductor size, enables it to manage large amounts of data transfer with ease. This makes it perfect for connecting servers and other network devices. Moreover, its FTP design effectively reduces interference and noise, thereby ensuring optimal network performance.


4.Industrial Environments - The CAT5E FTP 24AWG 0.515mm Copper Solid Outdoor PE + PVC Cable IEC61156- 5 is also well - adapted to industrial environments. With its durable and sturdy blue PE + PVC jacket, the cable can endure harsh conditions and extreme temperatures. Additionally, the FTP design provides resistance against electromagnetic interference, making it an ideal choice for factories, warehouses, and other industrial settings.


5.In summary, the CAT5E FTP 24AWG 0.515mm Copper Solid Outdoor PE + PVC Cable IEC61156 - 5 is a highly versatile and reliable networking cable. It is perfect for a wide range of applications in both residential and commercial scenarios. Its high - quality construction, outstanding performance, and advanced features make it an outstanding choice for anyone in need of a fast and reliable network connection.

0.515mm Copper Solid Outdoor Black PE PVC Cable IEC61a156-5 CAT5E FTP 24AWG

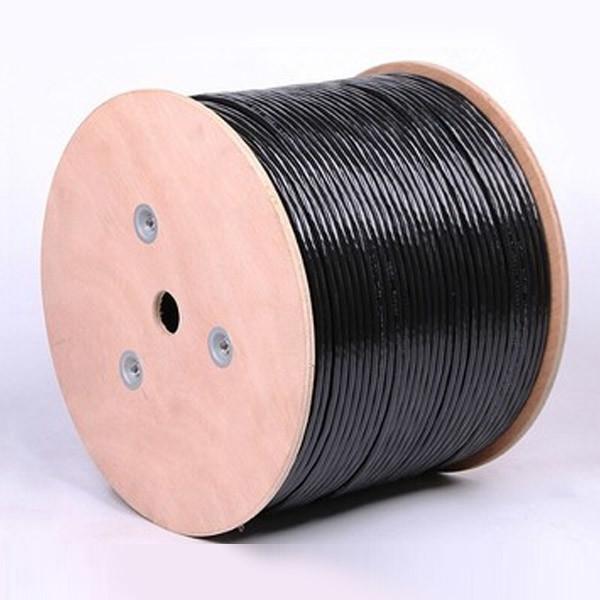

Packing and Shipping:

Product Packaging:

  • FTP CAT5E Cable
  • Length: 1000Ft
  • Color: Black
  • Outer Jacket Material: PE+PVC
  • Package Dimensions: 38*38*24cm

Shipping:

  • Shipping Method: Standard
  • Estimated Delivery Time: 15-45 days
  • Shipping Cost: Free
  • Shipping Restrictions: usiness translation

FAQ:

Q: What is the model number of this cable?

A: The model number of this cable is ITI-CT5F-016.

Q: Where is this cable manufactured?

A: This cable is manufactured in SHENZHEN.

Q: What is the maximum bandwidth supported by this cable?

A: This cable supports a maximum bandwidth of 350 MHz.

Q: What is the length of this cable?

A: The length of this cable is 1000Ft.
