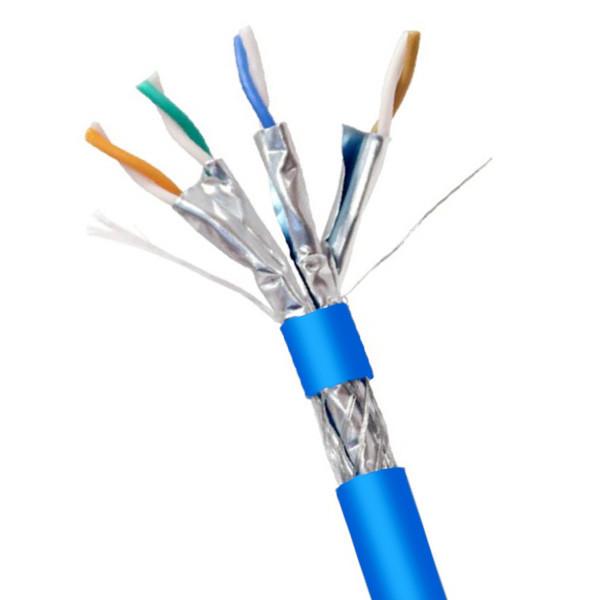

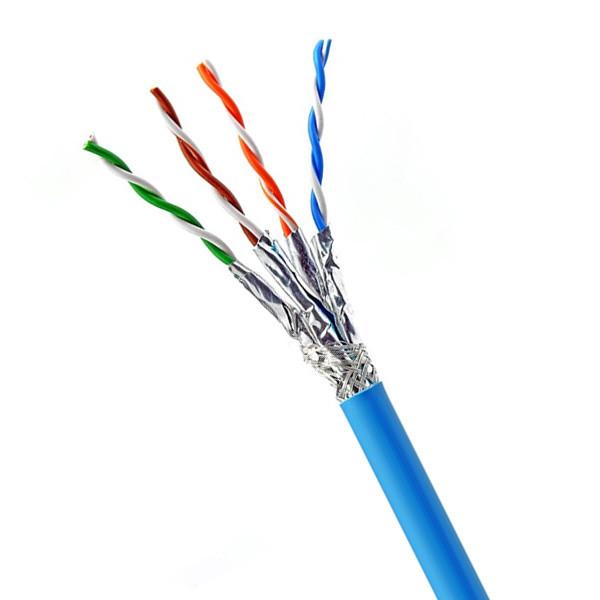

23AWG SFTP CAT6A Cable CPR PVC Dca-S2 D2 A1 10Gbps High Speed Network Cable 1000FT
23AWG SFTP CAT6A Cable CPR PVC Dca-S2 D2 A1 10Gbps High Speed Network Cable 1000FT
23AWG SFTP CAT6A Cable CPR PVC Dca-S2 D2 A1 10Gbps High Speed Network Cable 1000FT
23AWG SFTP CAT6A Cable CPR PVC Dca-S2 D2 A1 10Gbps High Speed Network Cable 1000FT
23AWG SFTP CAT6A Cable CPR PVC Dca-S2 D2 A1 10Gbps High Speed Network Cable 1000FT
23AWG SFTP CAT6A Cable CPR PVC Dca-S2 D2 A1 10Gbps High Speed Network Cable 1000FT
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CTSF6A-001
Place of Origin :
SHENZHEN
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
MOQ :
1000pcs
Packaging Details :
Wooden shaft packaging 40*26*20cm Outer box size：42*42*22cm
Delivery Time :
15-45 Days
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Length :
1000ft
Conductor Material :
Copper
Jacket Color :
Blue
Frequency :
500MHz
Conductor Size :
23AWG
Jacket Material :
PVC
Shielding Type :
SFTP
Cable Type :
CAT6A
Description

CAT6A SFTP 23AWG CPR PVC Dca-s2,d2,a1 10Gbps High Speed Network Cable 1000FT

Product Description:

1.One of the most important features of this CAT6A SFTP 23AWG CPR PVC Dca - s2,d2,a1 10Gbps High Speed Network Cable 1000FT is its 23 AWG copper conductor size. This precise copper conductor specification allows for an extremely strong and stable connection, which not only ensures that data is transferred quickly and accurately but also complies with the high - quality standards required by CPR (Construction Products Regulation). The copper conductor material, with its inherent high conductivity and low resistance, further maximizes the performance of this cable, making it a reliable choice for high - speed data transmission.


2.The CAT6A SFTP cable, designed with advanced technology, can handle a frequency of up to 500 MHz and an astonishing 10Gbps data transfer speed. This remarkable high - speed capability means it can transmit data with incredible efficiency, without any loss of signal or interference. Thanks to its High Speed feature, it is perfectly tailored for applications that demand high bandwidth and extremely low latency, such as online gaming, high - definition video streaming, and other data - intensive operations. Whether in a business environment with multiple users simultaneously accessing cloud - based applications or for individuals indulging in high - quality media consumption, this cable guarantees an optimal experience.


3.The jacket material of this cable is PVC (Polyvinyl Chloride), which is well - known for its outstanding durability and excellent resistance to wear and tear. This PVC jacket not only provides robust protection against common environmental factors like moisture and UV rays but also adheres to the relevant safety and quality requirements. The specific Dca - s2,d2,a1 classification further defines the cable's unique performance characteristics within industry standards, ensuring its suitability for a wide range of network setups.


4.In summary, the CAT6A SFTP 23AWG CPR PVC Dca - s2,d2,a1 10Gbps High Speed Network Cable 1000FT is a top - tier, high - performance Ethernet cable. It is an ideal solution for businesses and individuals who are in desperate need of fast and reliable data transfer rates. Its 23 AWG copper conductor size, 500 MHz frequency, 10Gbps speed, PVC jacket material, along with the CPR compliance and the specific Dca - s2,d2,a1 properties, make it the perfect choice for applications that require high bandwidth and low latency. With a length of 1000 feet, this cable is excellently suited for large - scale installations or projects that involve extensive cable runs, providing the necessary reach and high - performance capabilities for complex network deployments.

Technical Parameters:

Cable Type CAT6A Ethernet Cable
Jacket Material PVC
Conductor Size 23AWG
Frequency 500MHz
Length 1000Feet
Conductor Material Copper
Jacket Color Blue
Shielding Type SFTP

Product Description:

CAT6A SFTP 23AWG CPR PVC Dca-s2,d2,a1 10Gbps High Speed Network Cable 1000FT

Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19-24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 23 AWG Resistance unbalance within a pair ≤ 2%

Insulation

 Material

PE Skin-Foam-Skin

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 1.35 ±0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.38 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω
2p: white + 2 orange stripes & orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=19.0 mm (27%) tensile strength before aging ≥12 MPa
2p: S=23.5 mm (35%) elongation after aging ≥ 150 %
3p: S=21.5 mm (31%) tensile strength after aging ≥10.5 MPa
4p: S=27.0 mm (40%)

jacket

 elongation before aging ≥ 125 %
OD / tensile strength before aging ≥ 10 MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 100 %
Direction according to the drawing tensile strength after aging ≥ 8 MPa
Filler / Packing
OD / Drum NA

Shield

 Shield Pair Shield
Construction /
Material Aluminium (PET/ALU)
Coverage ≥ 115%
Braid Material ɸ 0.12mm Aluminum-magnesium braided
Coverage ≥ 40%

Jacket

 Material LSZH, 60P, -20~75℃
Hardness 81± 3
OD 7.5 ± 0.2
Average THK 0.60 ~ 0.70

Color

Blue
Marking Color black
Marking

according to the customer's

requirements

Electrical Properties
Conductor Resistance at 20°C NF EN 50289-1-2 / IEC 60189-1 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair NF EN 50289-1-2/ IEC 60708 ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

NF EN 50289-1-3 / IEC 61196-1-105

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

NF EN 50289-1-4 / IEC 60885-1

 >1500 MΩ / 100m
Mutual capacitance NF EN 50289-1-5 /IEC 60189-1 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz NF EN 50289-1-5 / IEC 60189-1 ≤ 160 pF / 100m
Characteristic impedance at 100MHz NF EN 50289-1-11/ IEC 61156-1 100 ± 15 Ω
Spark Test UL444 2000 ± 250VOC

Transmission Properties
CAT6A ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013

No.

Frequency

Attenuation (Max)

Propagation Delay

(Max)

Propagation Delay Skew

(Max)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 3.8 552 45 23.01 66.27 63.27 55.96 52.96
2 8 5.31 546.73 45 24.52 61.75 58.75 49.94 46.94
3 10 5.93 545.38 45 25 60.3 57.3 48 45
4 16 7.49 543 45 25 57.24 54.24 43.92 40.92
5 20 8.38 542.05 45 25 55.78 52.78 41.98 38.98
6 25 9.38 541.2 45 24.32 54.33 51.33 40.04 37.04
7 31.25 10.5 540.44 45 23.64 52.88 49.88 38.1 35.1
8 50 13.36 539.09 45 22.21 49.82 46.82 34.02 31.02
9 62.5 14.99 538.55 45 21.54 48.36 45.36 32.08 29.08
10 100 19.13 537.6 45 20.11 45.3 42.3 28 25
11 125 21.51 537.22 45 19.43 43.85 40.85 26.06 23.06
12 200 27.58 536.55 45 18 40.78 37.78 21.98 18.98
13 250 31.07 536.28 45 17.32 39.33 36.33 20.04 17.04
14 300 34.27 536.08 45 17.3 38.14 35.14 18.46 15.46
15 350 37.25 535.92 45 17.3 37.14 34.14 17.12 14.12
16 400 40.05 535.8 45 17.3 36.27 33.27 15.96 12.96
17 450 42.71 535.7 45 17.3 35.5 32.5 14.94 11.94
18 500 45.26 535.61 45 17.3 34.82 31.82 14.02 11.02

Applications:

1.The cable is a CAT6A SFTP 23AWG CPR PVC Dca - s2,d2,a1 10Gbps High Speed Network Cable 1000FT Ethernet cable. With its ability to handle data transfer rates of up to 10Gbps, it is perfect for high - speed data transmission scenarios. This makes it highly ideal for use in environments where massive amounts of data need to be transferred quickly and efficiently, such as in large - scale data centers handling complex business operations or in research facilities dealing with huge data analysis tasks.


2.The CAT6A SFTP cable is designed with advanced technology to provide superior protection against interference and crosstalk. In compliance with CPR (Construction Products Regulation), it ensures high - quality performance and safety. The cable's shielding, along with its specific Dca - s2,d2,a1 properties, helps to guarantee that data signals are not affected by external electromagnetic interference. This is crucial in environments like server rooms with numerous electronic devices generating various electromagnetic fields, as any interference could severely degrade network performance and lead to data errors.


3.The ITI - LINK ITI - CTSF6A - 001 SFTP CAT6A Ethernet Cable is suitable for an extensive range of applications. In office environments, it can be used to connect computers, printers, and other office equipment, enabling seamless workflow among employees. In data centers and server rooms, it forms the backbone of the network infrastructure, connecting servers, switches, and routers to ensure stable and high - speed data exchange. Moreover, in residential settings, this high - speed cable is excellent for connecting modern devices. It can be used to connect gaming consoles for lag - free online gaming experiences, smart TVs for smooth 4K or even 8K video streaming, and home automation systems for reliable control. The 1000 - foot length provides great flexibility for large - scale installations in both commercial and residential setups.


4.The jacket of the cable is made of PVC (Polyvinyl Chloride), which offers outstanding durability and robust protection against physical damage. This PVC jacket not only withstands wear and tear during installation and daily use but also protects the cable from environmental factors. The blue - colored jacket makes it easy to identify and distinguish from other cables, facilitating cable management in complex wiring environments. The 23 AWG conductor size strikes a perfect balance between signal strength and flexibility, ensuring reliable data transmission over long distances.


5.In summary, if you are seeking a reliable, high - performance CAT LAN Cable that complies with CPR and features high - speed capabilities, the ITI - LINK ITI - CTSF6A - 001 SFTP CAT6A Ethernet Cable is an outstanding choice. Whether you need to connect devices in an office, data center, or home environment, this cable, with its 10Gbps speed, SFTP shielding, and other specific attributes like Dca - s2,d2,a1, is designed to provide stable, fast, and reliable connectivity for all your networking needs.


23AWG SFTP CAT6A Cable CPR PVC Dca-S2 D2 A1 10Gbps High Speed Network Cable 1000FT

FAQ:

Q: What is the brand name of this SFTP CAT6A cable?

A: The brand name of this SFTP CAT6A cable is ITI-LINK.

Q: What is the model number of this SFTP CAT6A cable?

A: The model number of this SFTP CAT6A cable is ITI-CTSF6A-001.

Q: Where is this SFTP CAT6A cable manufactured?

A: This SFTP CAT6A cable is manufactured in SHENZHEN.

Q: Is this SFTP CAT6A cable suitable for outdoor use?

A: No, this SFTP CAT6A cable is not suitable for outdoor use as it is not designed to withstand harsh weather conditions.

Q: What is the length of this SFTP CAT6A cable?

A: The length of this SFTP CAT6A cable varies and can be selected based on your needs during purchase.
